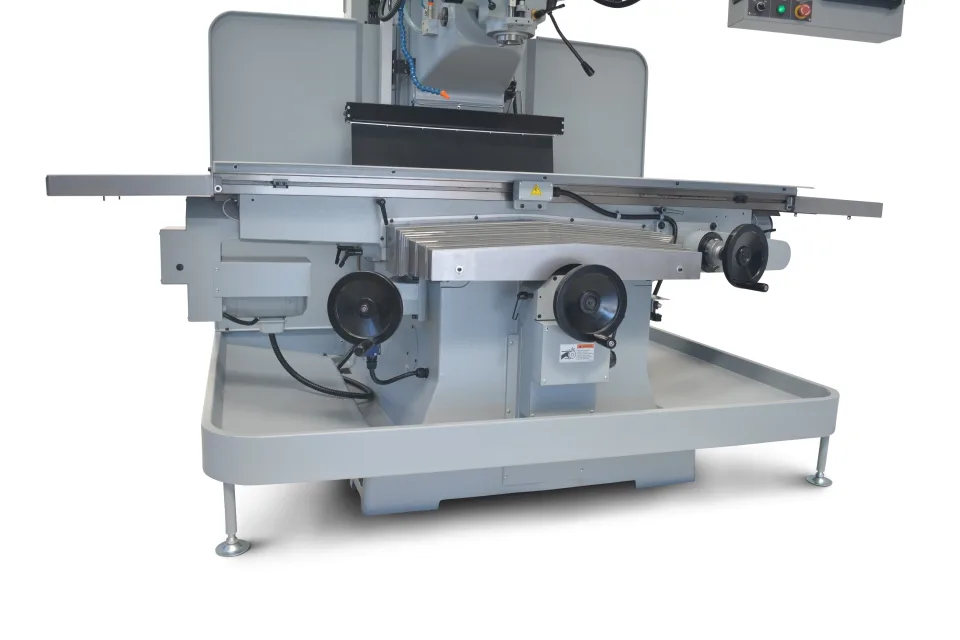

King Rich KR-B4V Rigid Bed Type Milling Machine

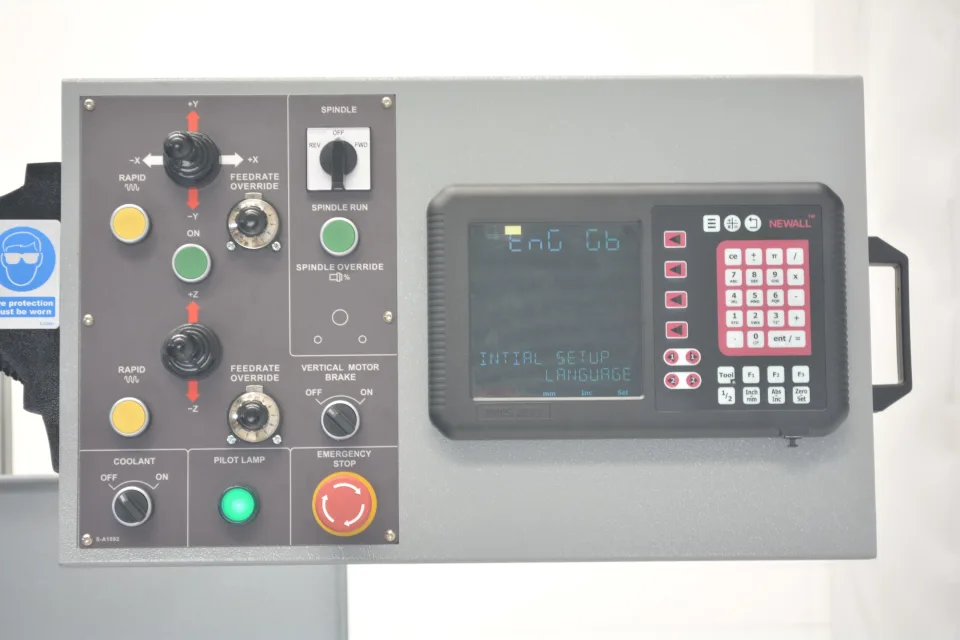

c/w Newall Digital Readout
POA
MTUR-0-0040 | Prices exclude GST
Product overview
About this machine.
Premium quality, Heavy duty manual bed mill
Quality Taiwanese Manufacturing
- Unique Honeycomb design Mehanite casting

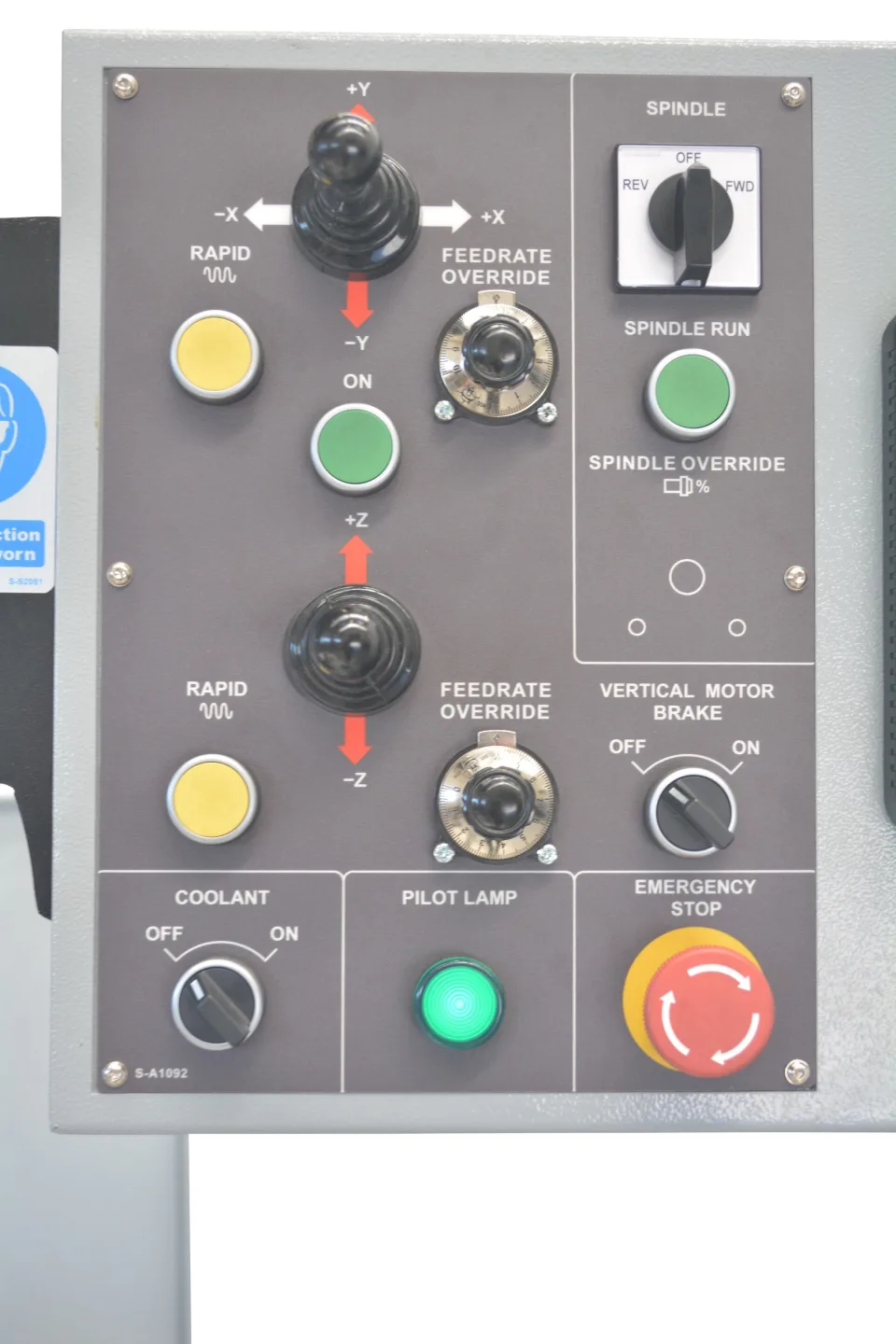

- 3 Axis variable feed via inverter
- Ball screws on X&Y with auto lubrication
- Clutch fitted to transmission on X & Y
- Precision class 7 spindle bearings
- Maximum spindle runout 5 microns

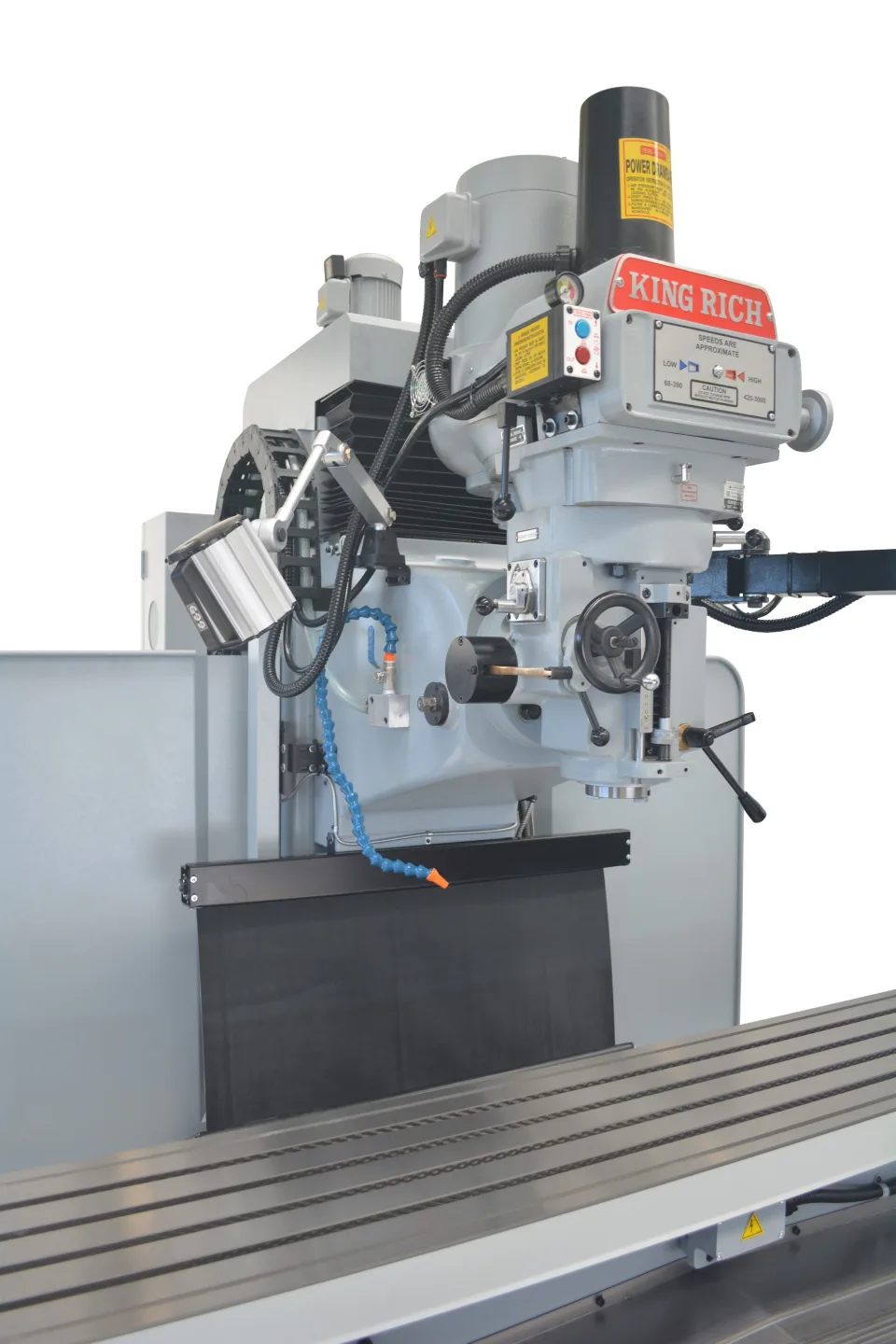

- Vertical head movement by AC motor with auto brake
Powerfeed to quill 3 steps
- Hardened & ground slideways & table
- Power draw bar
- Coolant
- Halogen lamp
- Splash & chip tray + guarding options
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
KR-B4V
Working surface of table
355 x 1930mm
Longitudinal travel
1500mm
Cross travel
600mm
Vertical travel of head
480mm
Speed range
60 - 3,000 rpm
Quill diameter
116mm
Quill travel
140mm
Quill feeds
0.0418 / 0.0786 / 0.1303 mm/rev
Spindle taper
NT40
Spindle motor
7.5 hp
Nett machine weight
3200 kg
