MTUR-0-0035
Workshop Machinery · Mills & mill drills
King Rich KR-B3V Rigid Bed Type Milling Machine
Premium quality, Heavy duty manual bed mill
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Speed range
60 - 3,000 rpm
Model
KR-B3V
Working surface of table
355 x 1473mm
Longitudinal travel of table
1050mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Premium quality, Heavy duty manual bed mill
Quality Taiwanese Manufacturing
- Unique Honeycomb design Mehanite casting
- 3 Axis variable feed via inverter
- Ball screws on X&Y with auto lubrication
- Clutch fitted to transmission on X & Y
- Precision class 7 spindle bearings
- Maximum spindle runout 5 microns

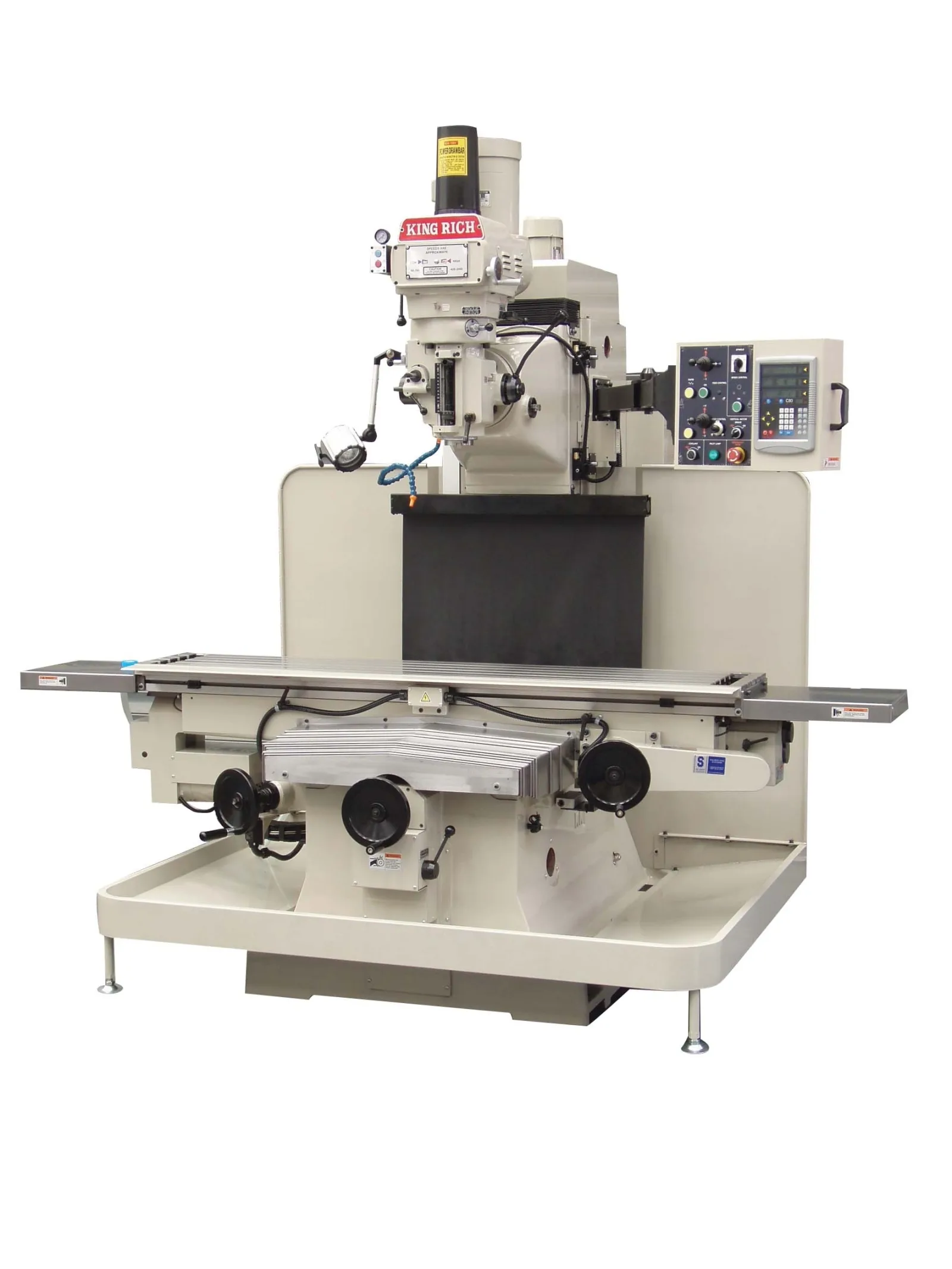

NB: Main image shows KR-B4V
Vertical head movement by AC motor with auto brake
- Powerfeed to quill 3 steps
- Hardened & ground slideways & table
- Power air draw bar
- Coolant system
- LED lamp
- Splash & chip tray + guarding options
- Newall DRO system
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
KR-B3V
Working surface of table
355 x 1473mm
Longitudinal travel of table
1050mm
Cross travel of table
480mm
Vertical travel of head
480mm
Speed range
60 - 3,000 rpm
Quill diameter
116mm
Spindle taper
NT40
Spindle motor power
7.5 HP
Nett machine weight
2600 kg
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
