King Rich KR-B3V Rigid Bed Type Milling Machine
c/w Newall Digital Readout
POA
MTUR-0-0035 | Prices exclude GST
Product overview
About this machine.
Premium quality, Heavy duty manual bed mill
Quality Taiwanese Manufacturing
- Unique Honeycomb design Mehanite casting
- 3 Axis variable feed via inverter
- Ball screws on X&Y with auto lubrication
- Clutch fitted to transmission on X & Y
- Precision class 7 spindle bearings
- Maximum spindle runout 5 microns

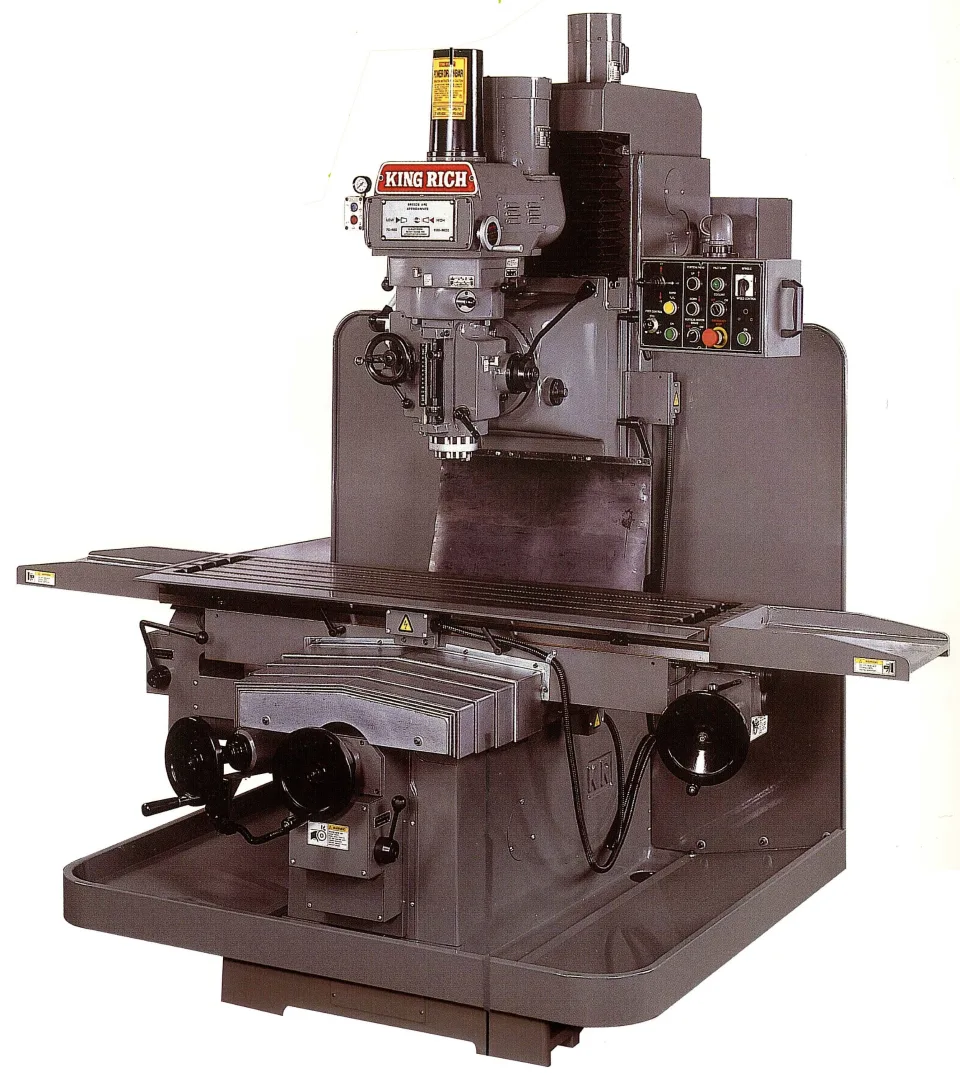

NB: Main image shows KR-B4V
Vertical head movement by AC motor with auto brake
- Powerfeed to quill 3 steps
- Hardened & ground slideways & table
- Power air draw bar
- Coolant system
- LED lamp
- Splash & chip tray + guarding options

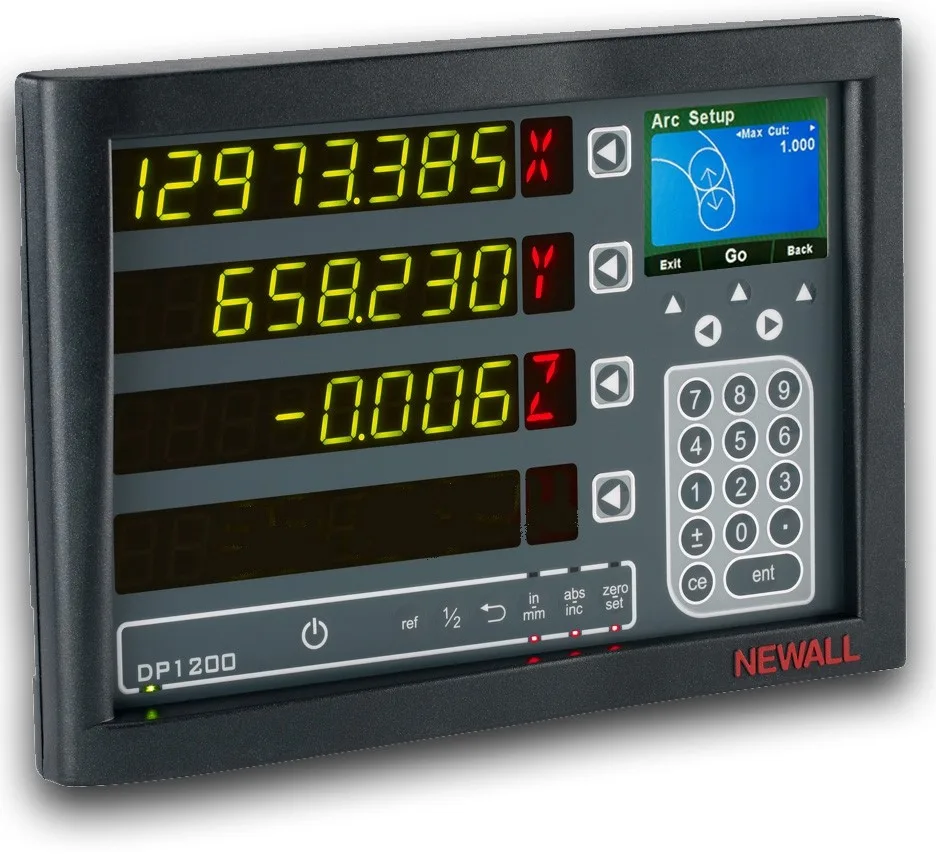

- Newall DRO system
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
KR-B3V
Working surface of table
355 x 1473mm
Longitudinal travel of table
1050mm
Cross travel of table
480mm
Vertical travel of head
480mm
Speed range
60 - 3,000 rpm
Quill diameter
116mm
Spindle taper
NT40
Spindle motor power
7.5 HP
Nett machine weight
2600 kg
