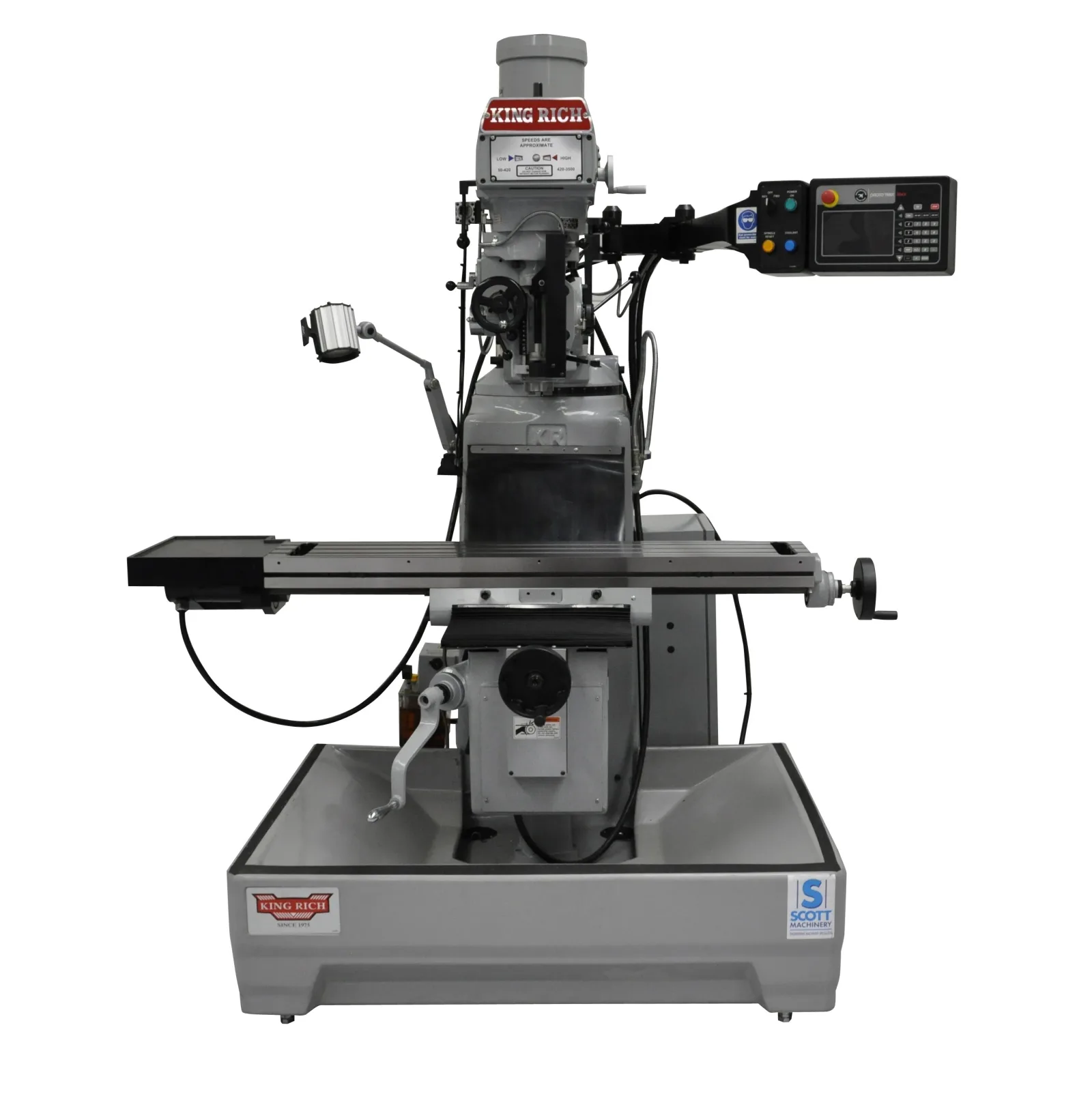

King Rich KMX 2000 ProtoTRAK CNC Mill
Entry Level CNC. A workshop sized mill, this machine has great capability and price making it a real winner
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Note: Some machine images shown with EMX control.
Entry Level CNC. A workshop sized mill, this machine has great capability and price making it a real winner.
The King Rich KR-V2000 interfaced with the ProtoTRAK KMX CNC Controller offers a proven rigid construction solid slide-way turret milling solution. This control is an entry level 2 axis CNC control with up to 4 axis DRO display and is able to do simple cycles like bolt hole circles, circular and rectangular pockets, even complex profiles. This control offers a real leap forward in the productivity of a turret mill - one day no one will buy a conventional DRO for a turret mill.
NB: Guards removed for clarity
Features
- ProtoTRAK KMX CNC
- 2-axis CNC, 3-axis DRO
- Manual quill with DRO
- Meehanite castings
- Standard Newall Microsyn scale for quill Z readout
- Precision ground ballscrews installed in the table and saddle
- Real handwheels for manual control
- Wide way surfaces are hardened and ground, slideways are Turcite® coated
- Forward/backward head tilt is held by 6 bolts through the knuckle to increase stiffness in the head.
Scott package includes
- Table guard with interlock
- Automatic Lubrication
- Coolant system and fibreglass coolant tray
- Halogen work light
- X & Y axis manual hand wheels
Optional Accessories
- Knee scale & summing unit
- Power drawbar
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
