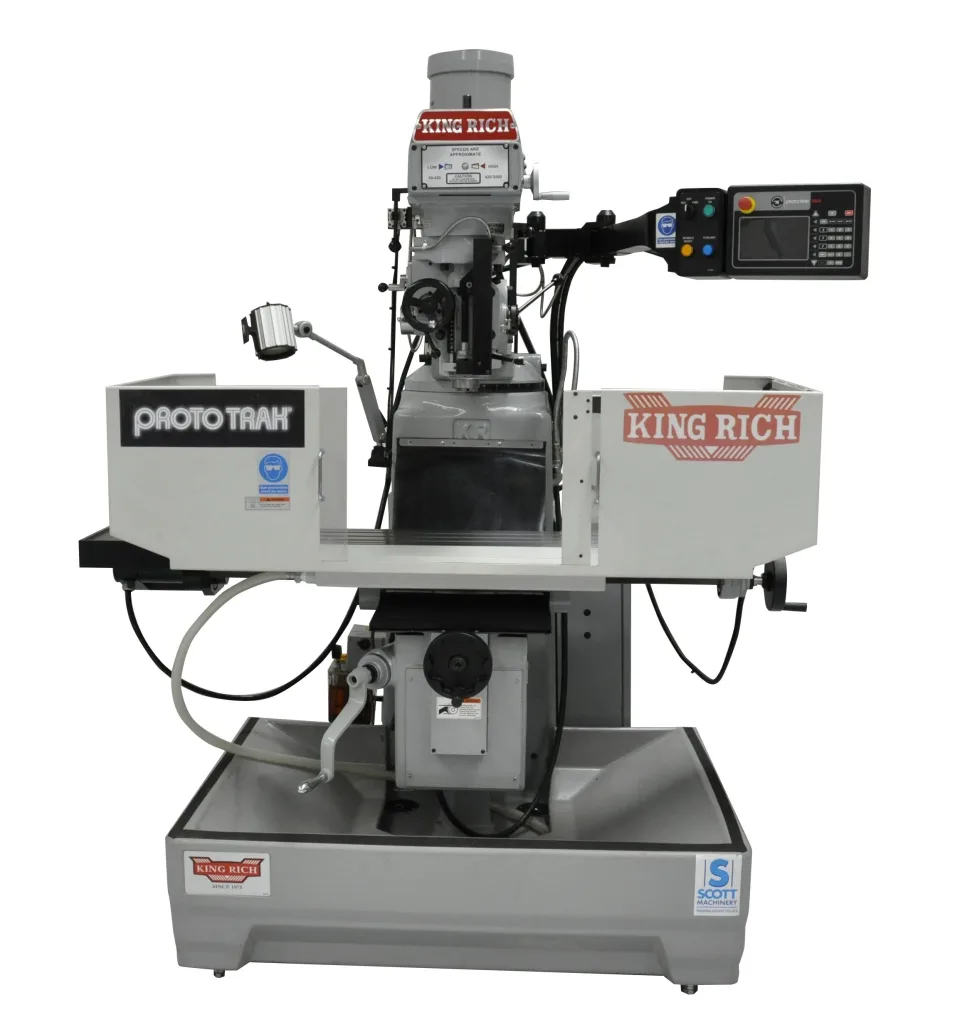

King Rich KMX 2000 ProtoTRAK CNC Mill
2 axis
POA
CNC-0-9806 | Prices exclude GST
Product overview
About this machine.
Note: Some machine images shown with EMX control.
Entry Level CNC. A workshop sized mill, this machine has great capability and price making it a real winner.
The King Rich KR-V2000 interfaced with the ProtoTRAK KMX CNC Controller offers a proven rigid construction solid slide-way turret milling solution. This control is an entry level 2 axis CNC control with up to 4 axis DRO display and is able to do simple cycles like bolt hole circles, circular and rectangular pockets, even complex profiles. This control offers a real leap forward in the productivity of a turret mill - one day no one will buy a conventional DRO for a turret mill.
NB: Guards removed for clarity
Features

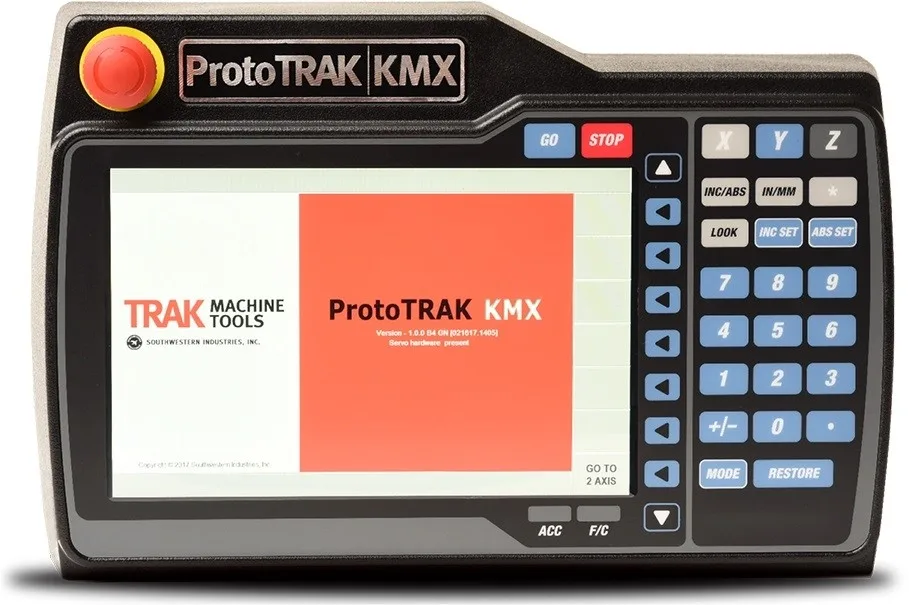

- ProtoTRAK KMX CNC
- 2-axis CNC, 3-axis DRO
- Manual quill with DRO
- Meehanite castings
- Standard Newall Microsyn scale for quill Z readout
- Precision ground ballscrews installed in the table and saddle
- Real handwheels for manual control
- Wide way surfaces are hardened and ground, slideways are Turcite® coated

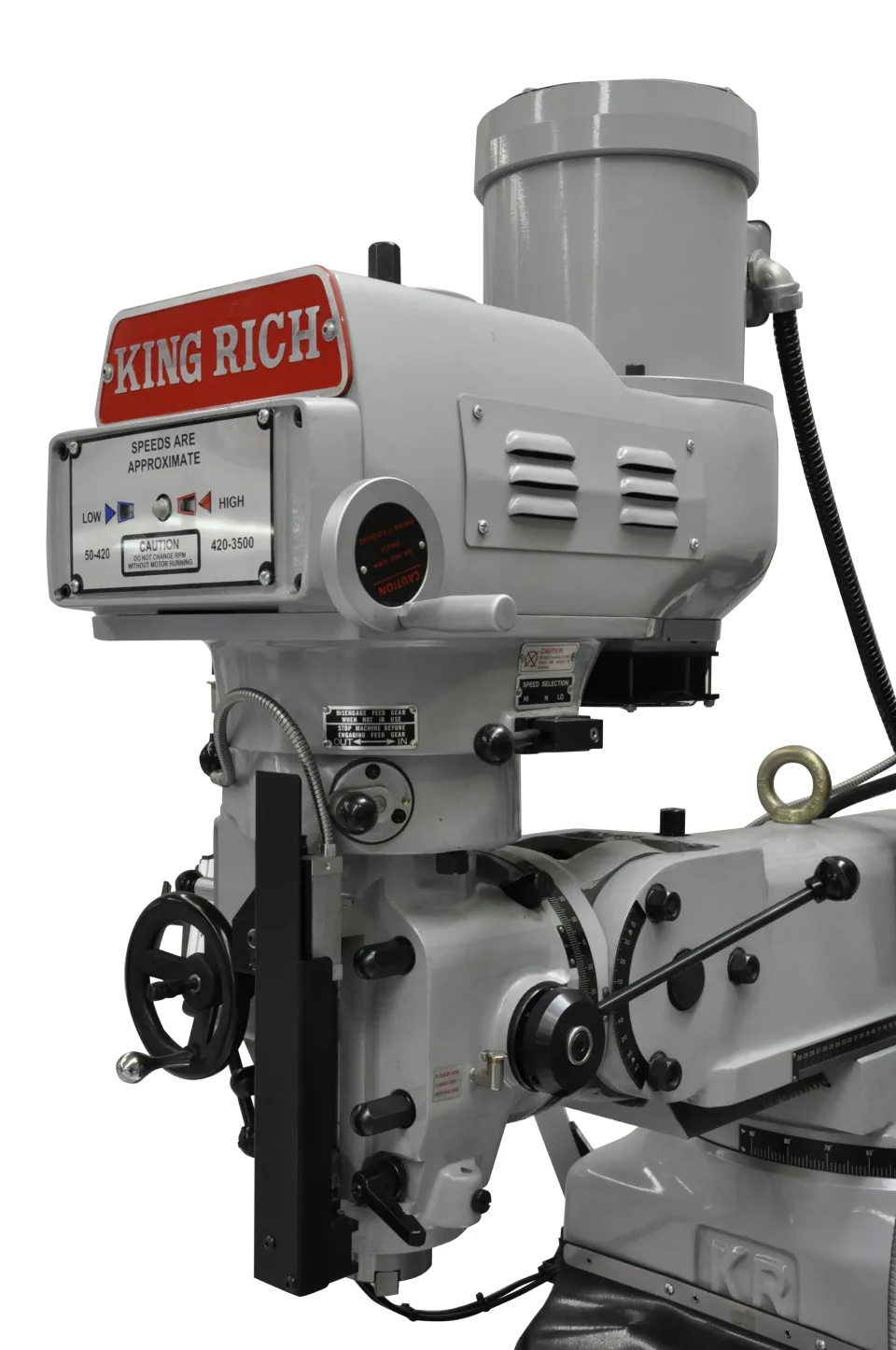

- Forward/backward head tilt is held by 6 bolts through the knuckle to increase stiffness in the head.
Scott package includes
- Table guard with interlock
- Automatic Lubrication

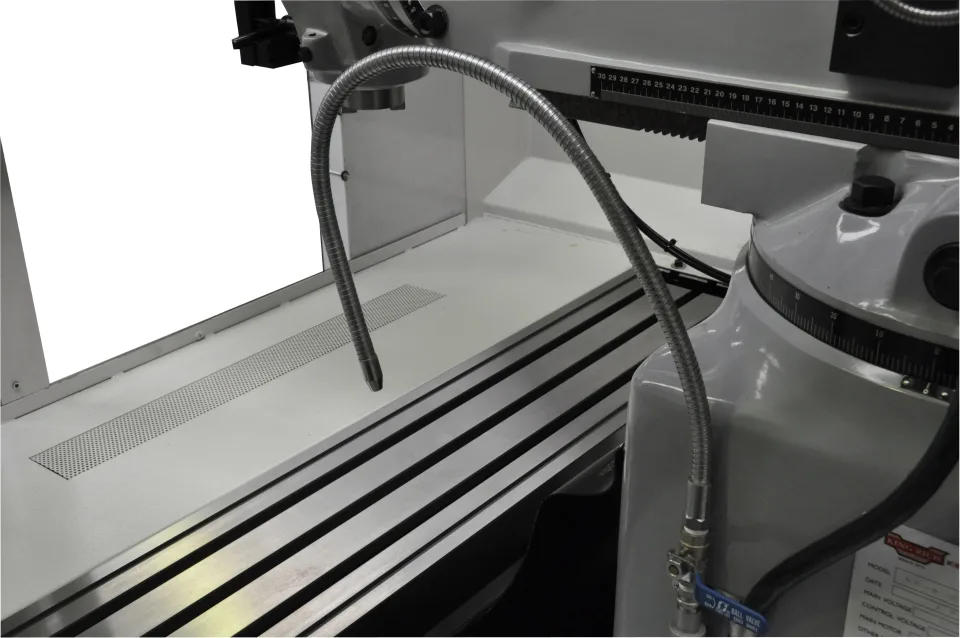

- Coolant system and fibreglass coolant tray
- Halogen work light
- X & Y axis manual hand wheels
Optional Accessories
- Knee scale & summing unit
- Power drawbar
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
KMX2000
Table size
1270 x 254mm
Table load capacity
300kg
Longitudinal travel of table
750mm
Cross travel of table
380mm
Vertical travel
400mm
Ram travel
450mm
Spindle nose to table
50 - 450mm
Spindle speed range
50 - 3,500rpm
2 Speed ranges
Standard
T-slots
15.9mm x 3
Quill power feeds
.038 / .76 / .15 mm/rev
Quill travel
127mm
Quill diameter
86mm
Head tilt left to right
90° - 90°
Head tilt front to back
45° - 45°
Spindle taper
NT30 (R8 on request)
Spindle motor power
2.25kW (3HP)
Weight
1,250kg approx.
