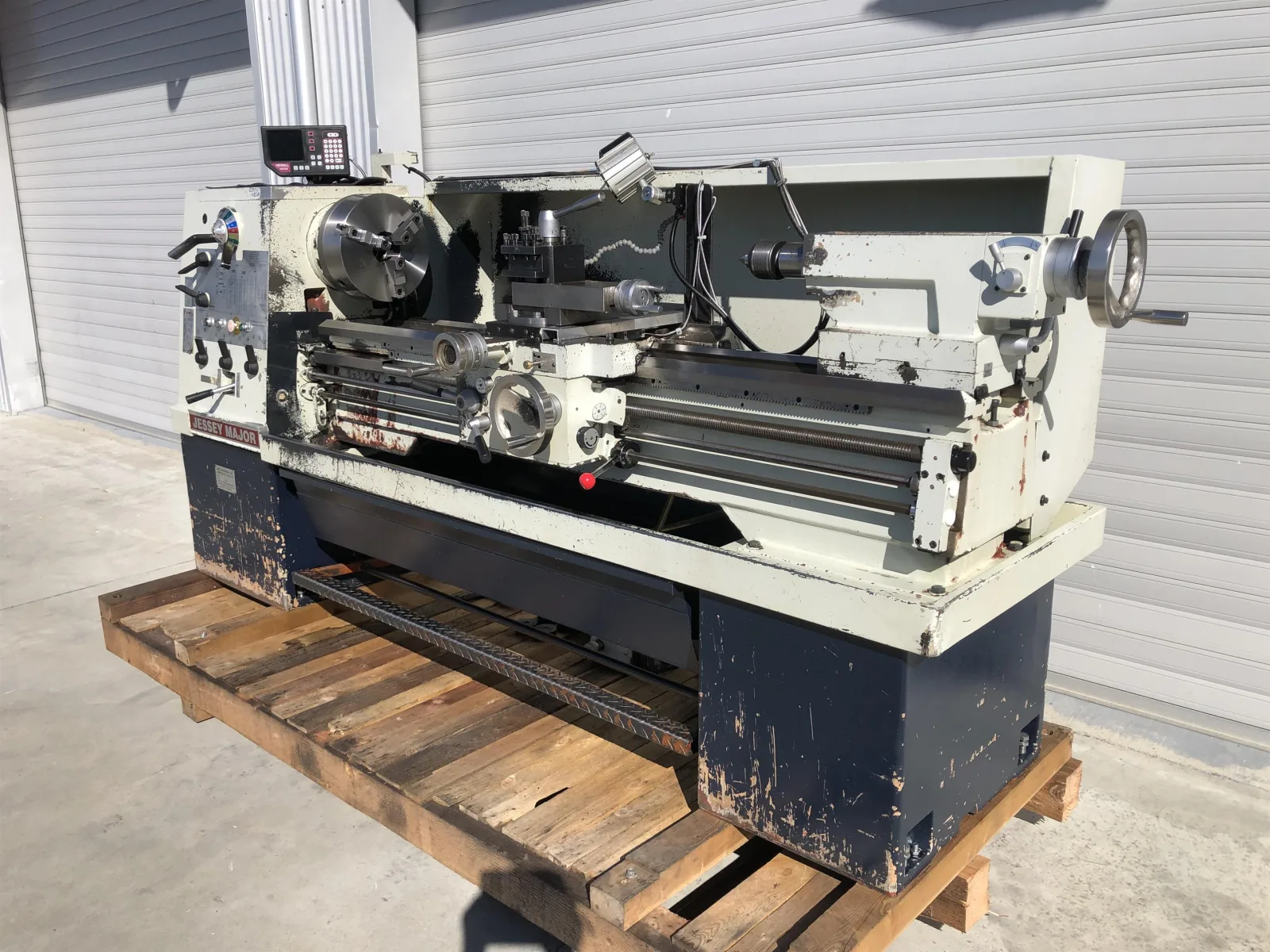

Jessey Major 1860 Used Centre Lathe
460 swing x 1500 centres x 80mm bore. Digital read out, quick change tool post
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Jessey Major lathes are built by Jesco Machinery Ltd in Taiwan. They're solid, high quality manual machines using Meehanite castings, hardened beds, and ground gears. Known for reliability, accuracy, and good value, they're widely used in workshops, training, and production worldwide. Heavy duty Taiwanese lathe. Runs well.
Features:
- Three phase
- Gap bed
- Headstock clutches
- D1-8 camlock spindle
- Newall NMS300 2 Axis digital readout system
- Two speed tail stock
- Right hand carriage wheel
- Full length splash guard
- Coolant system
- Halogen work light
- Foot brake
Accessories:
- Quick change toolpost c/w 4 tool holders
- New 3 jaw chuck 325mm
- 4 jaw chuck 400mm
- Fixed steady
- Chuck and toolpost guards. These would need retro-fitting
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Machine video
See Jessey Major 1860 in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
