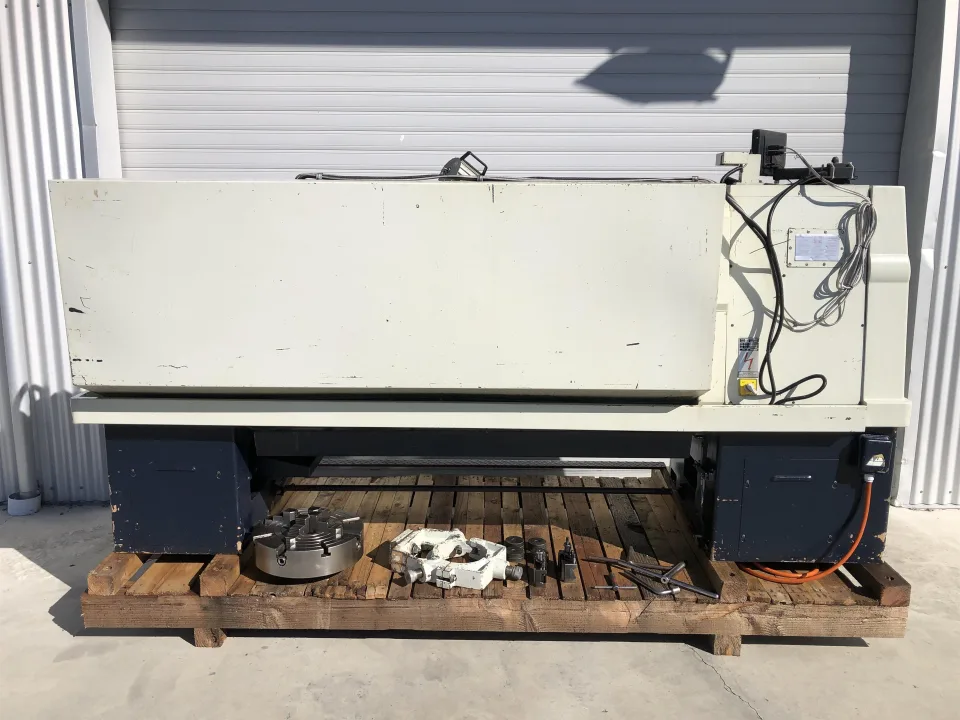

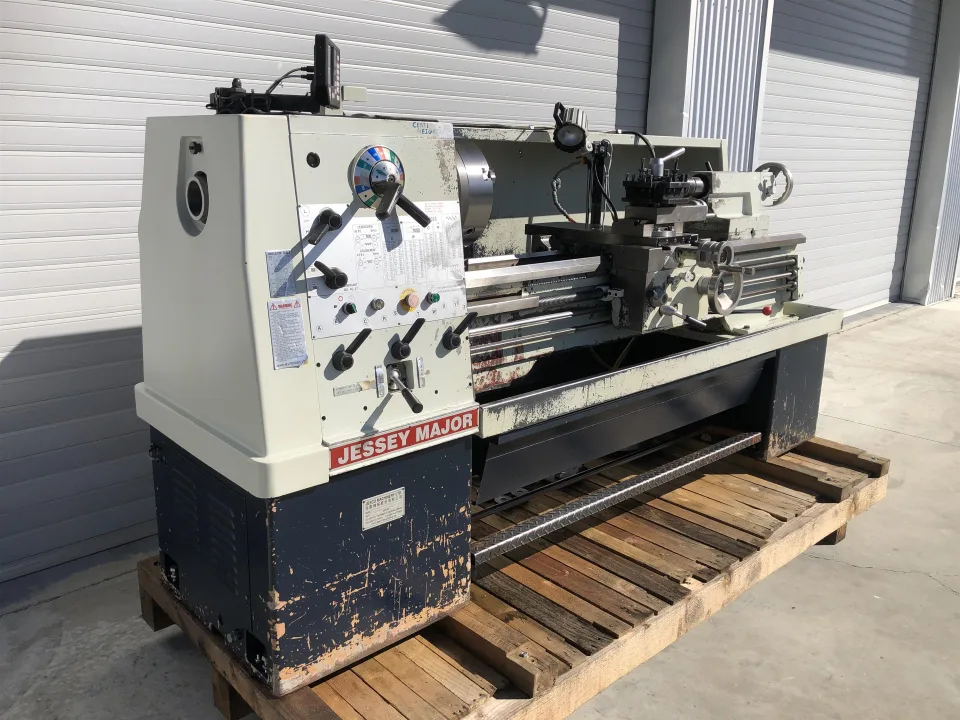

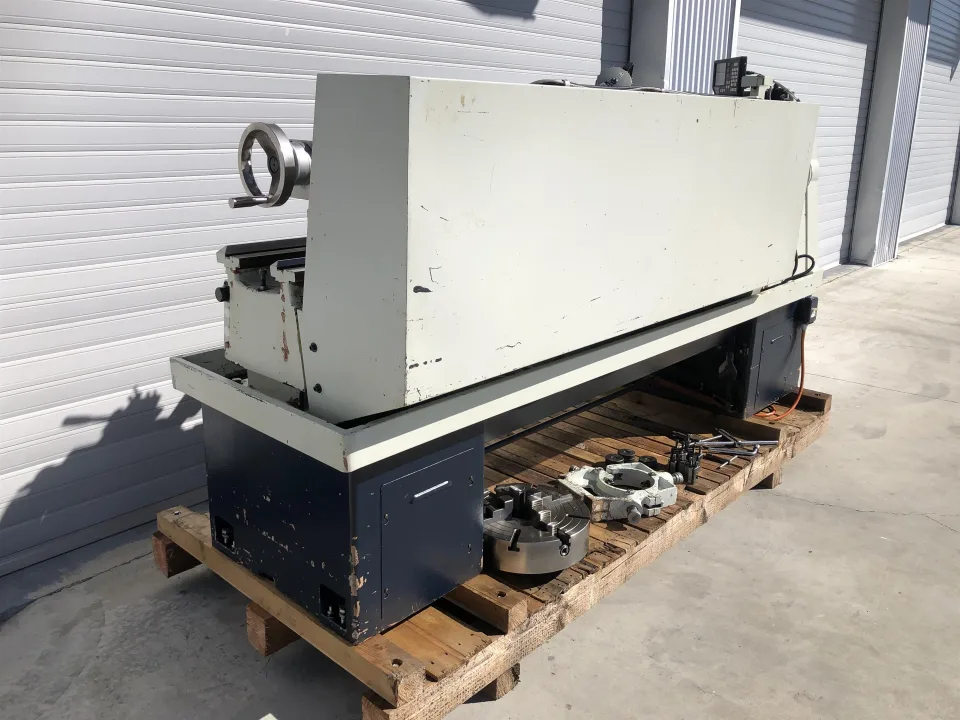

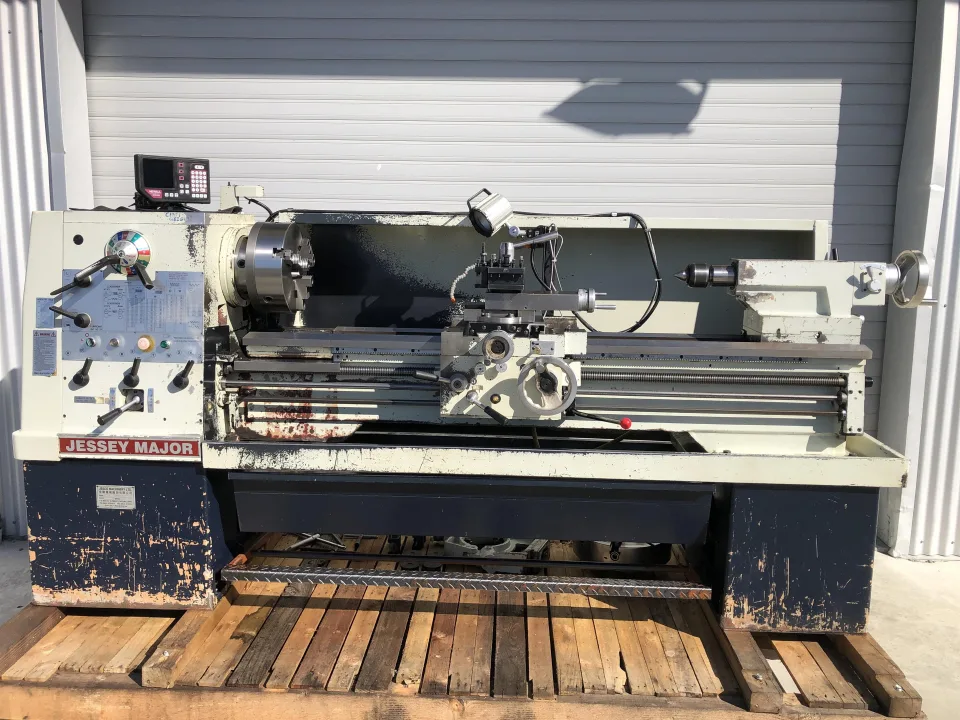

Jessey Major 1860 Used Centre Lathe
c/w DRO & QCT
SOLD
LCNT-1-1871 | Prices exclude GST
Product overview
About this machine.
Jessey Major lathes are built by Jesco Machinery Ltd in Taiwan. They're solid, high quality manual machines using Meehanite castings, hardened beds, and ground gears. Known for reliability, accuracy, and good value, they're widely used in workshops, training, and production worldwide. Heavy duty Taiwanese lathe. Runs well.
Features:
- Three phase
- Gap bed
- Headstock clutches
- D1-8 camlock spindle
- Newall NMS300 2 Axis digital readout system
- Two speed tail stock
- Right hand carriage wheel
- Full length splash guard
- Coolant system
- Halogen work light
- Foot brake
Accessories:
- Quick change toolpost c/w 4 tool holders
- New 3 jaw chuck 325mm
- 4 jaw chuck 400mm
- Fixed steady
- Chuck and toolpost guards. These would need retro-fitting
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Jessey Major
MJ-1860
Swing over bed
460mm
Swing over cross slide
290mm
Swing in gap
710mm
Distance between centres
1500mm
Spindle bore
80mm
Spindle speeds
20 - 1600 rpm 16 steps
Tail stock taper
5MT
Thread cutting
Metric and Imperial
Main motor
10 hp
Power supply
415 volts / 50 hz / 3 phase
Freighting details (W x D x H)
2900mm x 1200mm x 1700mm
Weight (approx)
2500 kg
