SAWB-0-8870
Saws & Cutting · Bandsaws

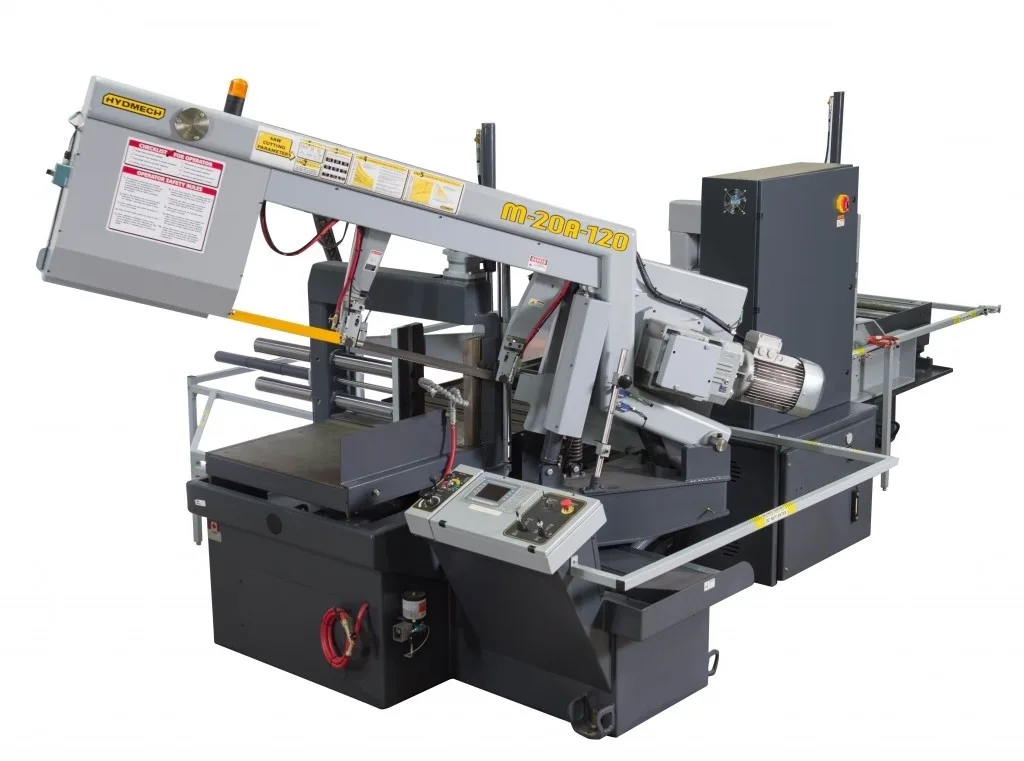

Hydmech M-20A-120 Automatic Pivot Style Band Saw
Fully automatic NC feed band saw Horizontal mitre cutting to 60 degrees 508 x 762mm capacity
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Blade size
6248-6250 x 41 mm
Blade speed
15 - 106 m/min
Blade drive
7.5 kW VFD
Work load
3636 kg
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Quality Canadian Manufacturing
Key features
- Automatic programmable mitring with “go to” angle functionality
- Full capacity hydraulic overhead bundling
- 3 meter bar feed
- Automatic multi-indexing up to 3000 mm in a single stroke.
- Steelguide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
- 7.5 kW VFD. True direct blade drive – no belts/pulleys
- Full capacity, full stroking hydraulic vises
- Hydraulic positive down feed
- Blade chamber separates material from cut part
- Cast iron band wheels
- Automatic PLC,touch screen control programmable up to 1000 jobs with 20 in queue.
- Replaceable blade brush
- Robust steel base
- Automatic chip removal auger
- Easy access electrical panel and hydraulics
- Blade breakage switch
- Hardened replaceable wear plates on material vises
Hydraulic band tensioning
- Hydraulic carbide guide tensioning
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
Optional Machine Features:
- Blade deviation
- Chip bucket
- Remote console
- Mist lubrication
- Out of stock switch
- Outboard vise
- Outboard vise with bundling
- Variable vise pressure
- Vertical rollers
- Idler conveyors
- Powered conveyors
Note: Video shows M-20A with short shuttle feed
Machine video
See Hydmech M-20A-120 in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Hydmech | M-20A-120 | ||
|---|---|---|---|
| Capacity | Straight | +45° | +60° |
| Rectangular (h x w) | 508 x 762 mm | 508 x 482 mm | 508 x 304 mm |
| Round | 508 mm | 508 mm | 355 mm |
| Blade size | 6248-6250 x 41 mm | ||
| Blade speed | 15 - 106 m/min | ||
| Blade drive | 7.5 kW VFD | ||
| Work load | 3636 kg | ||
| Machine weight | 5760 kg | ||
| Table height | 889mm | ||
| Floor size (W x L x H) | 3276 x 5334 x 2794 mm |
