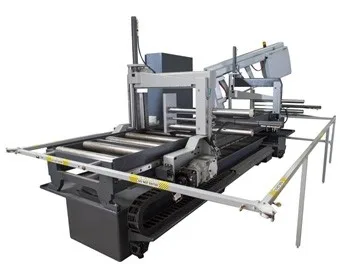

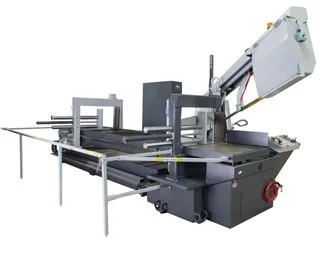

Hydmech M-20A-120 Automatic Pivot Style Band Saw
with 3m bar feed
POA
SAWB-0-8870 | Prices exclude GST
Product overview
About this machine.
Quality Canadian Manufacturing
Key features
- Automatic programmable mitring with “go to” angle functionality
- Full capacity hydraulic overhead bundling
- 3 meter bar feed
- Automatic multi-indexing up to 3000 mm in a single stroke.
- Steelguide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
- 7.5 kW VFD. True direct blade drive – no belts/pulleys
- Full capacity, full stroking hydraulic vises
- Hydraulic positive down feed
- Blade chamber separates material from cut part
- Cast iron band wheels
- Automatic PLC,touch screen control programmable up to 1000 jobs with 20 in queue.
- Replaceable blade brush
- Robust steel base
- Automatic chip removal auger
- Easy access electrical panel and hydraulics
- Blade breakage switch
- Hardened replaceable wear plates on material vises
Hydraulic band tensioning
- Hydraulic carbide guide tensioning
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
Optional Machine Features:
- Blade deviation
- Chip bucket
- Remote console
- Mist lubrication
- Out of stock switch
- Outboard vise
- Outboard vise with bundling
- Variable vise pressure
- Vertical rollers
- Idler conveyors
- Powered conveyors
Note: Video shows M-20A with short shuttle feed
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Hydmech | M-20A-120 | ||
|---|---|---|---|
| Capacity | Straight | +45° | +60° |
| Rectangular (h x w) | 508 x 762 mm | 508 x 482 mm | 508 x 304 mm |
| Round | 508 mm | 508 mm | 355 mm |
| Blade size | 6248-6250 x 41 mm | ||
| Blade speed | 15 - 106 m/min | ||
| Blade drive | 7.5 kW VFD | ||
| Work load | 3636 kg | ||
| Machine weight | 5760 kg | ||
| Table height | 889mm | ||
| Floor size (W x L x H) | 3276 x 5334 x 2794 mm |
