Hydmech H-360A Automatic Dual Post Horizontal Band Saw

Fully automatic in the box style NC feed band saw Horizontal 360 x 360mm capacity

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model H-360A
Rectangle capacity 360x360mm
Round capacity 360mm
Square capacity 360mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

HYDMECH has done it again. You will be impressed by the H-360A automatic band saw.

Automatic horizontal band saw providing accurate 90 degree metal cutting for medium to heavy-duty applications. Designed for safety with saw-in-a-box style.

Featuring a 360mm x 360mm capacity, 4.4kW VFD motor, and 34mm blade, the H-360A is a reliable choice for your horizontal metal cutting applications.

Heavy-duty Shuttle Vice - A heavy duty shuttle vice powered by a ball screw and stepper motor provides material indexing up to 580mm in a single stroke with multi-index capability. Its standard split front vice delivers a short material remnant length of 45mm, reducing material waste.

Automatic Guide Arm - A steel guide arm, mounted on linear rails, is automatically adjustable for proper guide arm to material spacing at all times.

Dual Down Feed System - The H-360A electronic Dual down feed system allows the operator to control both feed rate and feed force, for more efficient cutting. Controlled by amperage draw chip load, the head feeding will automatically adjust based on relative chip load.

Touch Screen Control - The H-360A touch screen control is very intuitive and easy to program. The controller can be easily programmed, storing up to 100 different cutting jobs with 20 in queue and features several different cutting modes.

Key features

  • Heavy duty cast iron saw head
  • Spilt front vice
  • Fabricated shuttle features automatic multi-indexing up to 584 mm in a single stroke. Powered by ball screw and stepper motor.
  • On-demand hydraulics save energy
  • Steel guide arms mounted on linear rails. Auto adjustable guide arm for proper spacing.
  • 4.4 kW VFD. True direct blade drive, no belts or pulleys
  • Reversible chip auger
  • Full capacity, full stroking hydraulic vices
  • Hydraulic positive down feed
  • Blade chamber separates material from cut part
  • Cast iron band wheels
  • Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue.
  • Replaceable blade brush
  • Robust steel base
  • Automatic chip removal auger
  • Easy access electrical panel and hydraulics
  • Blade breakage switch

Blade deviation monitor

  • Designed for safety with saw-in-a-box style
  • Out of stock switch
  • Mechanical band tensioning with digital readout
  • Replaceable carbide guide inserts
  • Safety door interlocks RFID technology
  • Flood coolant with wash down hose

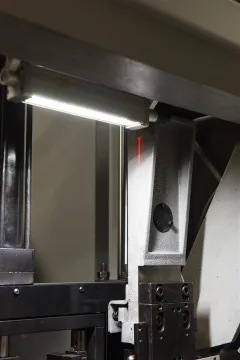

  • Laser light
  • LED work light
  • Variable vise pressure
  • Power transformer 415V 50Hz

Key features

  • Mist lubrication
  • Vertical rollers
  • Infeed and outfeed tunnels
  • Full capacity hydraulic overhead bundling*
  • Idler conveyors
  • Powered conveyors

*overhead bundling increases remnant length to 255

Machine video

See Hydmech H-360A in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model H-360A
Rectangle capacity 360x360mm
Round capacity 360mm
Square capacity 360mm
Blade size 4,500 x 34mm
Blade drive 4.4 kW VFD
Blade speed range 15 - 115 m/min
Remnant length 45mm (255mm w/OHB)
Coolant tank capacity 200L
Machine weight 2,000kg
Table height 865mm
Floor size (w x l x h) 2,700 x 1,800 x 2,030mm
