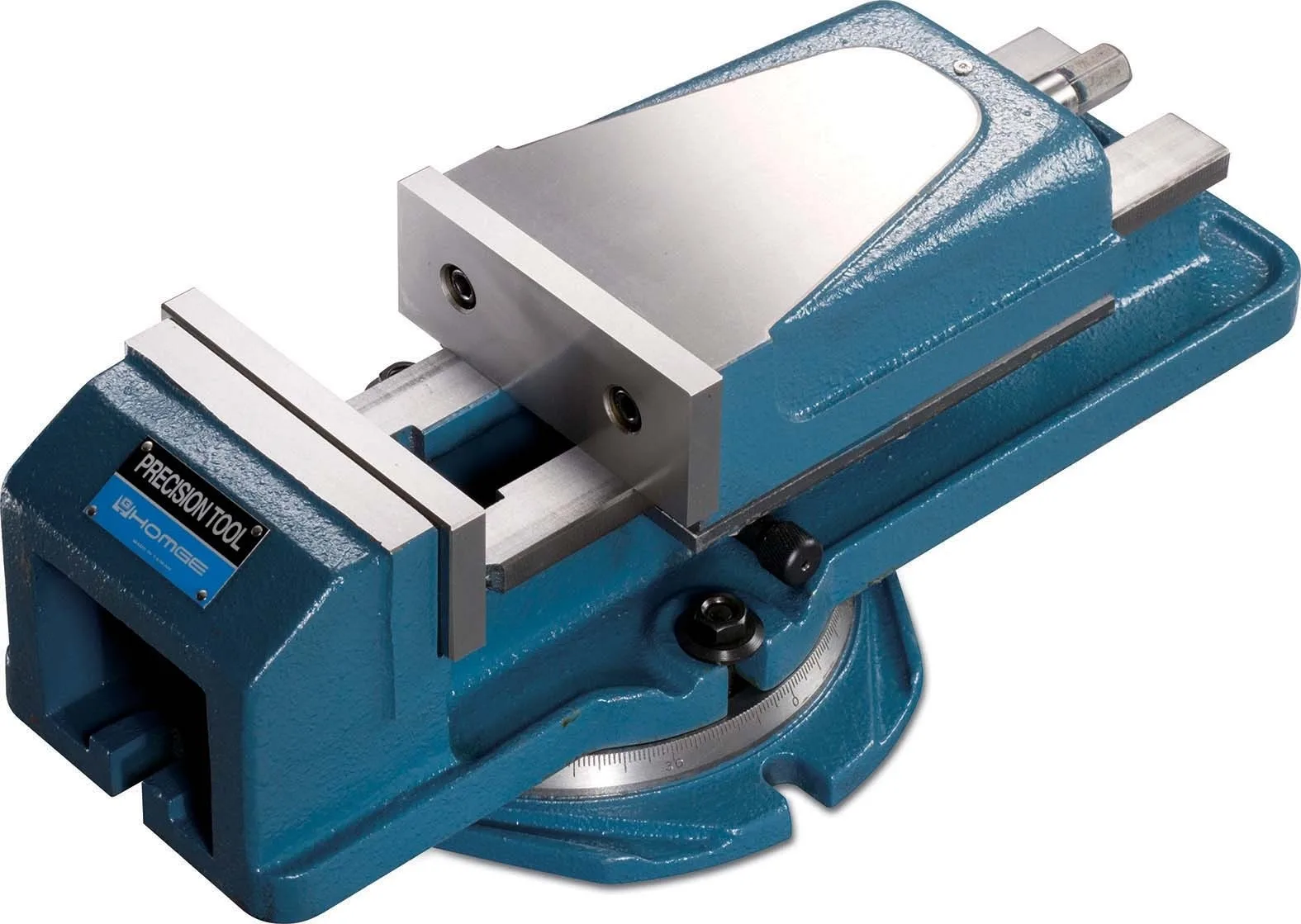

Homge Super Wide Opening Machine Vice

Name: Homge Super Wide Opening Machine Vice
Brand: Homge
SKU: WEB-SUPER OPEN VICE

3 models available

POA Configured to suit your application. Talk to us for a price.

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.

The HOMGE Super Wide Opening Machine Vices are designed to maximise clamping capacity within a compact footprint, allowing larger or multiple components to be held without stepping up to a larger machine vice. The wide-opening design improves machine table utilisation and reduces setup changes in CNC and conventional machining. Built with a rigid cast body and precision-ground wear surfaces, these vices are suited to general machining and production environments where consistent clamping and durability are required.

Features:

Super wide jaw opening increases workholding capacity within a compact footprint
Short overall length allows multiple vices to be mounted across CNC tables
High tensile cast iron or ductile iron body for rigidity and minimal deflection under load
Hardened and ground slideways (approx. HRC50) for wear resistance and long-term accuracy
Hardened alloy steel jaws for durability in production use
Angle-lock mechanism pulls workpiece down to maintain jaw parallelism and improve stability
Multi-power mechanical system (selected models) delivers high, consistent clamping force without hydraulic maintenance
High accuracy and repeatability suited to CNC machining and mould work
Can be mounted horizontally or vertically depending on setup requirements
Optional swivel base available on standard models for flexible positioning

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
