Homge Hydraulic Wide Opening Machine Vices

Name: Homge Hydraulic Wide Opening Machine Vices
Brand: Homge
SKU: WEB-HYDRAULIC VICE

4 models

POA Configured to suit your application. Talk to us for a price.

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

HOMGE manufactures precision workholding and inspection equipment built for workshop and production use. Their range includes machine vices, angle plates, sine tables, magnetic chucks and modular fixturing designed to deliver repeatable accuracy and solid clamping performance. Made in Taiwan using hardened and precision-ground components, HOMGE products are known for consistent quality, reliable alignment, and long service life in toolrooms, CNC machining, and general engineering environments. Suitable for both manual and CNC machines, HOMGE workholding is built to handle daily workshop use without unnecessary complexity.

The HOMGE Hydraulic Wide Opening Machine Vices (HH100, HH125, HH150) are hydraulic-assisted precision machine vices designed for secure, high-force clamping in CNC and conventional milling applications. The hydraulic cylinder system increases clamping force while damping cutting vibration, improving stability and machining finish on heavier cuts. The wide-opening design provides increased jaw travel without requiring a larger vice footprint, making the HH series suitable for larger or irregular components. Built for production environments, the vices combine rigid cast construction with precision-ground wear surfaces to maintain accuracy under repeated loading. Based on manufacturer specifications and distributor data, the HH series is consistently used in applications requiring higher clamping force, improved vibration control, and fast adjustment across mixed component sizes.

Features:

Hydraulic cylinder increases clamping force and absorbs cutting vibration
Wide opening design allows larger workpieces within a compact footprint
High tensile cast iron body for rigidity and reduced deformation under load
Hardened and ground slideways for smooth operation and long-term accuracy
Hardened alloy steel jaws for wear resistance in production use
Adjustable clamping force via hydraulic control system
Fast clamping and release for improved cycle times in machining operations
Optional swivel base available for flexible machine setup
Suitable for CNC milling, conventional machining, and general fabrication work

Optional Swivel Bases :

for HH-100 $85 + GST
for HH-125 $92 + GST
for HH-150 $99 + GST

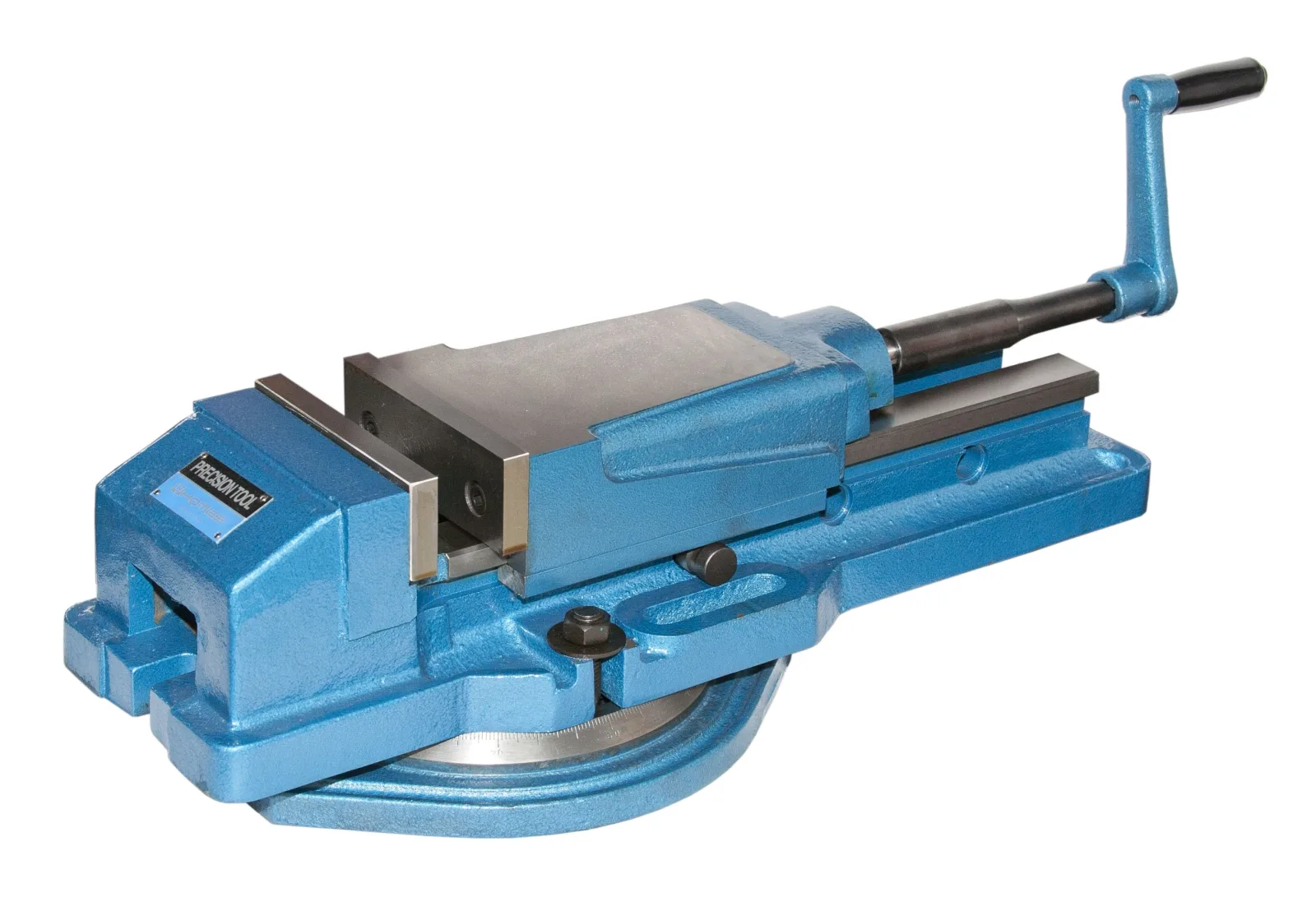

Note : Photo shows optional swivel base

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
