CNC-0-6100
CNC Machine Tools · Boring & tapping

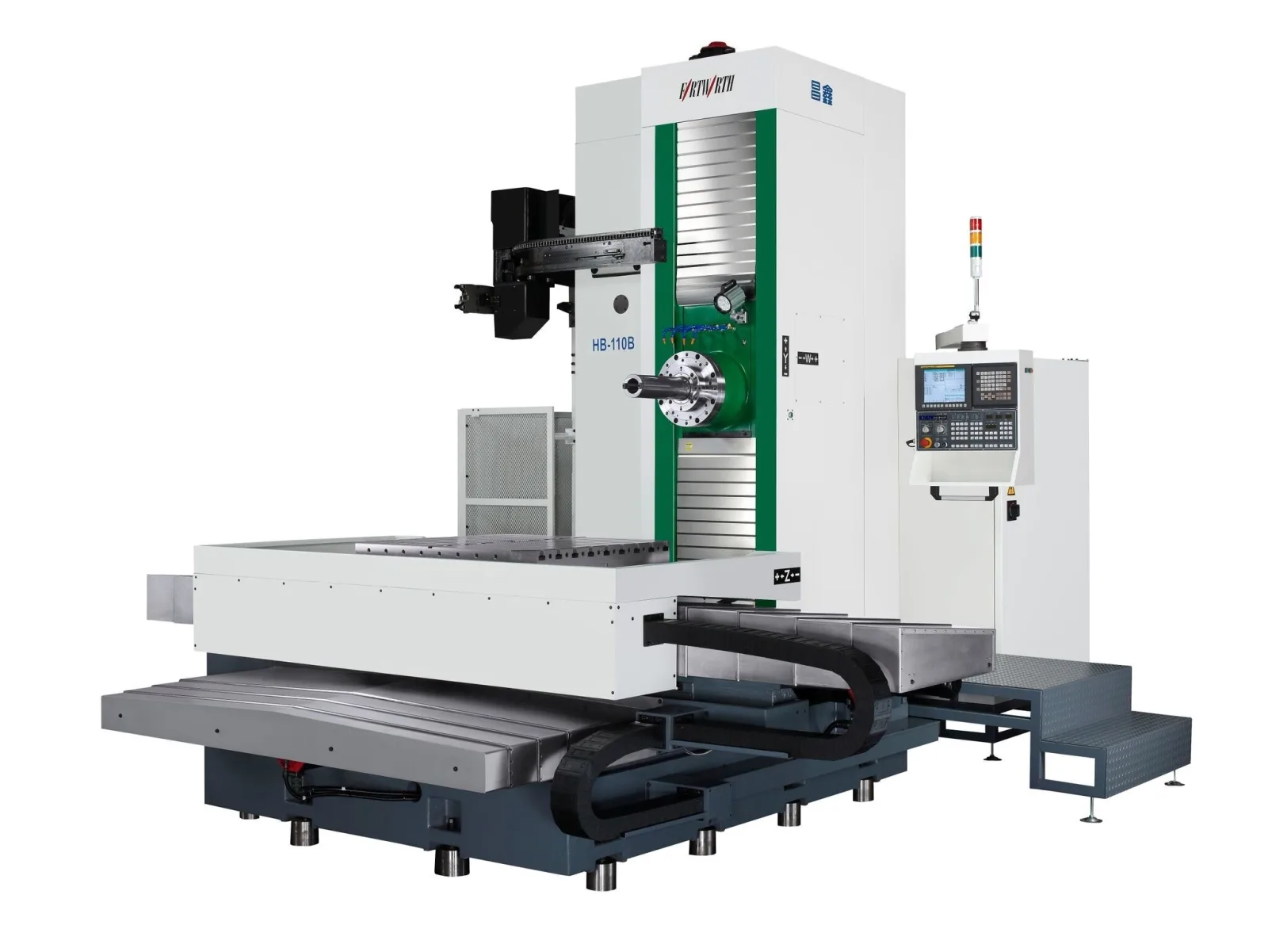

Fortworth HB-110B CNC Boring & Milling Machine
Quality Taiwanese manufacturing 1000x1000mm Table size 500mm Spindle stroke
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Model
HB-110B
Table size
1000x1000mm
Maximum load capacity
1000kg
Minimum indexing
1 degree
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Quality Taiwanese manufacturing 1000x1000mm Table size 500mm Spindle stroke
Key features
- Fanuc Oi-MF CNC control
- Automatic tool changer
- Portable MPG hand wheel
- 500mm Spindle travel
- 1° Indexing table
Configuration
- X Axis - Longitudinal travel
- Y Axis - Vertical travel
- Z Axis - Column towards table
- W Axis - Quill or spindle extension
- B Axis - Table rotation
Key features
- Coolant through spindle (CTS)
- Table guarding
- Chip conveyor & bucket
- Right angle milling attachment
Machine video
See Fortworth HB-110B in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
HB-110B
Table size
1000x1000mm
Maximum load capacity
1000kg
Minimum indexing
1 degree
X Axis travel
2000mm
Y Axis travel
1400mm
Z Axis travel
1150mm
W Axis travel
500mm
Spindle nose to table centre
-175 to 1475mm
Spindle centre to table top
0-1400mm
Spindle nose
BT50
Spindle diameter
110mm
Automatic tool changer capacity
60 pieces
Spindle motor
22 kW
