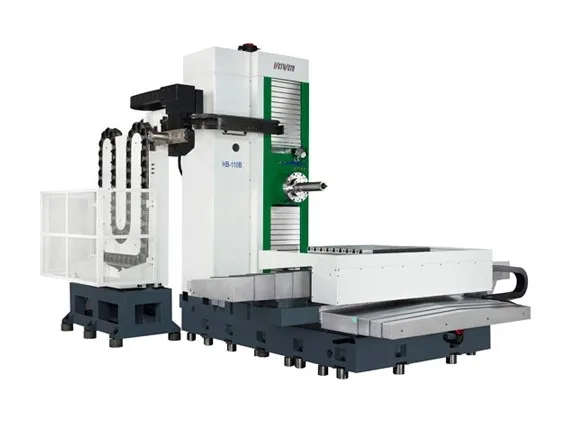

Fortworth HB-110B CNC Boring & Milling Machine
Fanuc Oi-MF
POA
CNC-0-6100 | Prices exclude GST
Product overview
About this machine.
Quality Taiwanese manufacturing 1000x1000mm Table size 500mm Spindle stroke
Key features
- Fanuc Oi-MF CNC control
- Automatic tool changer
- Portable MPG hand wheel
- 500mm Spindle travel
- 1° Indexing table
Configuration
- X Axis - Longitudinal travel
- Y Axis - Vertical travel
- Z Axis - Column towards table
- W Axis - Quill or spindle extension
- B Axis - Table rotation
Key features
- Coolant through spindle (CTS)
- Table guarding
- Chip conveyor & bucket
- Right angle milling attachment
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
HB-110B
Table size
1000x1000mm
Maximum load capacity
1000kg
Minimum indexing
1 degree
X Axis travel
2000mm
Y Axis travel
1400mm
Z Axis travel
1150mm
W Axis travel
500mm
Spindle nose to table centre
-175 to 1475mm
Spindle centre to table top
0-1400mm
Spindle nose
BT50
Spindle diameter
110mm
Automatic tool changer capacity
60 pieces
Spindle motor
22 kW
