MTUR-0-0095
Workshop Machinery · Mills & mill drills

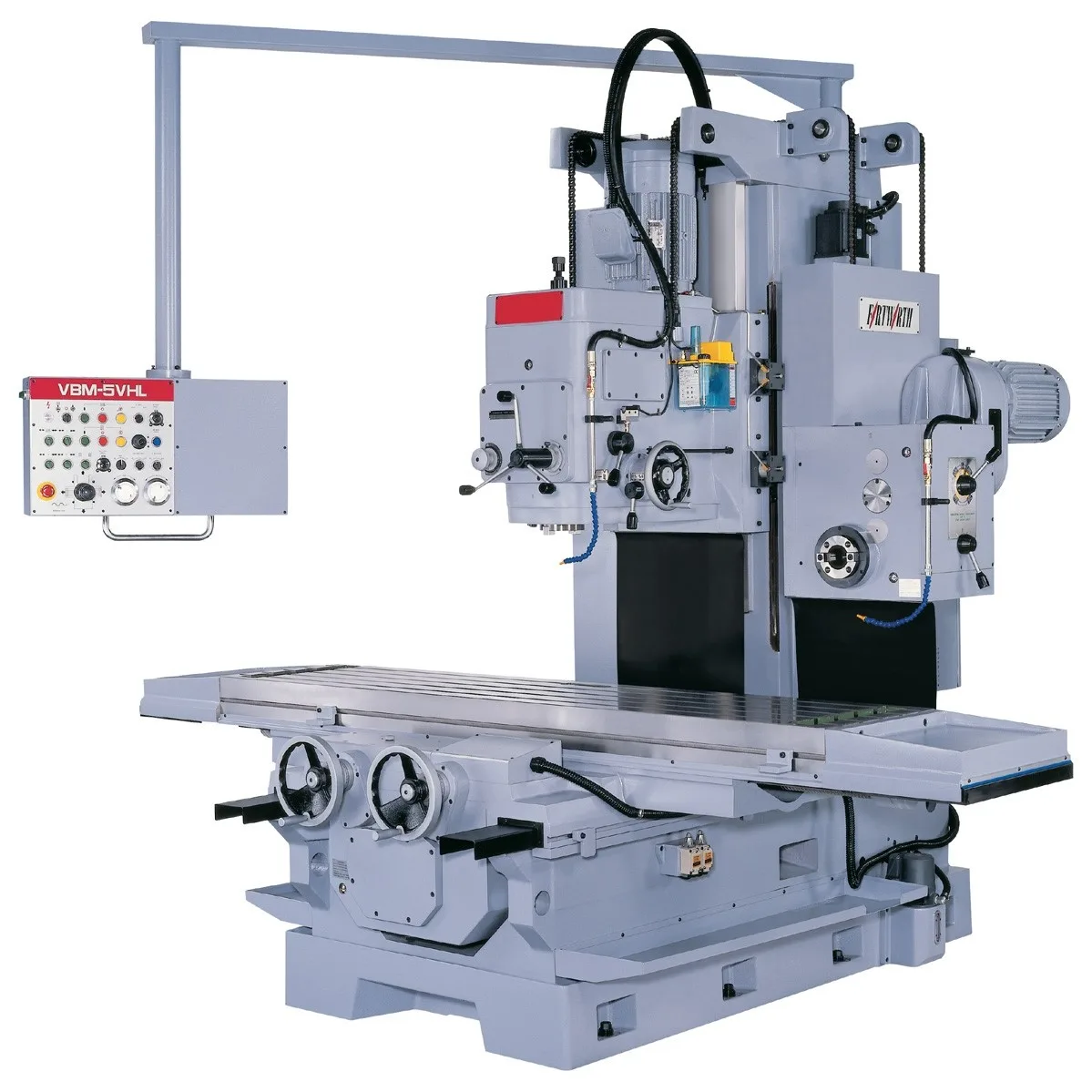

Fortworth CS-VBM-5VHL Bed Mill
2200x500mm table
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Model
CS-VBM-5VHL
Table size
2200 x 500mm
Longitudinal table travel
1500mm
Cross table travel
600mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
2200x500mm table
Quality Taiwanese Manufacturing
- Heavy Bed Type Mill
- 15HP motor vertical spindle
- Square slide ways Y & Z axis
- 7.5HP Horizontal spindle with 12 speeds
- Ballscrews with servo motor on X,Y & W axis
- Infinitely variable feeds with rapid & jog
- Counter weights for stability & accuracy
- Pneumatic clamping system
- Central lubrication system
- Coolant
Options:
- Newall 4 Axis Digital readout system
- 2000mm Longitudinal travel
- Power draw bar
- Larger machine options CS-VBM-8VHL with more features
NB: Embedded Youtube video shows larger CS-VBM-8VHL model
Machine video
See Fortworth CS-VBM-5VHL in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
CS-VBM-5VHL
Table size
2200 x 500mm
Longitudinal table travel
1500mm
Cross table travel
600mm
Vertical spindle travel
650mm
Vertical spindle to table
100 - 800mm
Spindle to column
550mm
Vertical spindle taper
NT50
Vertical spindle speeds
45 - 1,500 rpm (12 steps)
Horizontal spindle taper
NT50
Horizontal spindle speeds
40 - 1,450 rpm (12 steps)
Horizontal spindle vertical travel
650mm
Floor to table
870mm
Machine nett weight
8,700 kg
Dimensions (L x D x H)
4440 x 2500 x 2870mm
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
