Fortworth CS-VBM-5VHL Bed Mill
c/w Horizontal spindle
POA
MTUR-0-0095 | Prices exclude GST
Product overview
About this machine.
2200x500mm table
Quality Taiwanese Manufacturing
- Heavy Bed Type Mill
- 15HP motor vertical spindle
- Square slide ways Y & Z axis
- 7.5HP Horizontal spindle with 12 speeds
- Ballscrews with servo motor on X,Y & W axis
- Infinitely variable feeds with rapid & jog
- Counter weights for stability & accuracy
- Pneumatic clamping system
- Central lubrication system
- Coolant
Options:

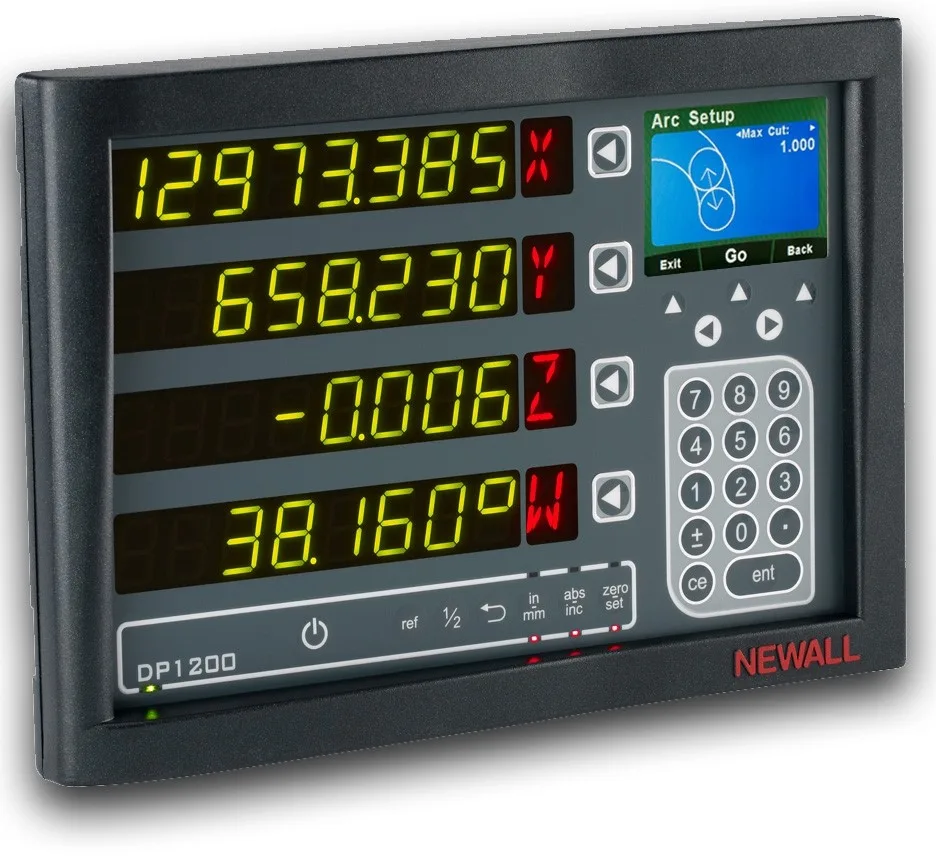

- Newall 4 Axis Digital readout system
- 2000mm Longitudinal travel
- Power draw bar
- Larger machine options CS-VBM-8VHL with more features
NB: Embedded Youtube video shows larger CS-VBM-8VHL model
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
CS-VBM-5VHL
Table size
2200 x 500mm
Longitudinal table travel
1500mm
Cross table travel
600mm
Vertical spindle travel
650mm
Vertical spindle to table
100 - 800mm
Spindle to column
550mm
Vertical spindle taper
NT50
Vertical spindle speeds
45 - 1,500 rpm (12 steps)
Horizontal spindle taper
NT50
Horizontal spindle speeds
40 - 1,450 rpm (12 steps)
Horizontal spindle vertical travel
650mm
Floor to table
870mm
Machine nett weight
8,700 kg
Dimensions (L x D x H)
4440 x 2500 x 2870mm
