FINTEK VH-0865-6HC Hydraulic Box & Pan Folder

Name: FINTEK VH-0865-6HC Hydraulic Box & Pan Folder – 2540mm x 6.5mm
Brand: FINTEK
SKU: FOLD-0-2625

Heavy Duty Box & Pan Folder Programmable digital angle Made in Taiwan

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

FINTEK, Established in 1983, has become one of Taiwan's leading manufacturers of sheet metalworking equipment. With over four decades of expertise, FINTEK produces a comprehensive range of machines, including hydraulic press brakes, guillotine shears, folding machines, rolling machines, and iron workers. All machines are 100% built in Taiwan, ensuring high precision, stability, and excellent quality at a reasonable price.

The FINTEK VH-0865-6HC is a high performance hydraulic box and pan folder designed for precision sheet metal bending. With a bending length of 2050 mm and a maximum bending thickness of 6.5 mm for mild steel, it ensures accurate and efficient folding operations. Equipped with a powerful hydraulic system and user friendly controls, this machine is ideal for producing complex box and pan shapes in various metalworking applications.

Features:

Hydraulic box and pan folder for precision sheet metal bending
High quality made by FINTEK in Taiwan
Heavy duty design
Box & pan style segmented top fingers

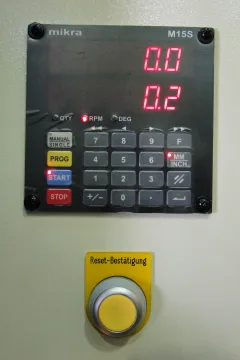

M15s Digital programmable angle display
Manual back gauge with hand wheel
Front detective sensor
Hold down pressure adjusted by handwheel
Adjustable hydraulic pressure
0 - 135 degree bending angle
3 function remote foot pedal
Maximum bending thickness: 6.5 mm (mild steel)

See below table for other models in this series

Video is of a 3.5mm capacity machine with an older controller

Optional:

NC Programmable 2 Axis controller
800mm programmable backgauge & sheet support
Extended backgauge 1000mm or 1250mm
One piece top tool

Machine video

See FINTEK VH-0865-6HC in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for FINTEK VH-0865-6HC
Fintek VH Series	VH-0865-6HC	VH-1045-6HC	VH-1065-HC	VH-1245-6HC	VH-1265-6HC	VH-4045-6HC	VH-4065-6HC
Bending capacity - Mild Steel	6.5mm	4.5mm	6.5mm	4.5mm	6.5mm	4.5mm	6.5mm
Bending capacity - Stainless Steel	4.5mm	3mm	4.5mm	3mm	4.5mm	3mm	4.5mm
Bending length	2540mm	3100mm	3100mm	3710mm	3710mm	4010mm	4010mm
Motor power	10HP	7.5HP	10HP	7.5HP	10HP	7.5HP	10HP
Gross weight	6200 kg	5500 kg	7100 kg	7000 kg	8000 kg	8000 kg	8800 kg
