FINTEK VH-0865-6HC Hydraulic Box & Pan Folder
2540mm x 6.5mm
Product overview
About this machine.
FINTEK, Established in 1983, has become one of Taiwan's leading manufacturers of sheet metalworking equipment. With over four decades of expertise, FINTEK produces a comprehensive range of machines, including hydraulic press brakes, guillotine shears, folding machines, rolling machines, and iron workers. All machines are 100% built in Taiwan, ensuring high precision, stability, and excellent quality at a reasonable price.
The FINTEK VH-0865-6HC is a high performance hydraulic box and pan folder designed for precision sheet metal bending. With a bending length of 2050 mm and a maximum bending thickness of 6.5 mm for mild steel, it ensures accurate and efficient folding operations. Equipped with a powerful hydraulic system and user friendly controls, this machine is ideal for producing complex box and pan shapes in various metalworking applications.
Features:
- Hydraulic box and pan folder for precision sheet metal bending
- High quality made by FINTEK in Taiwan
- Heavy duty design
- Box & pan style segmented top fingers

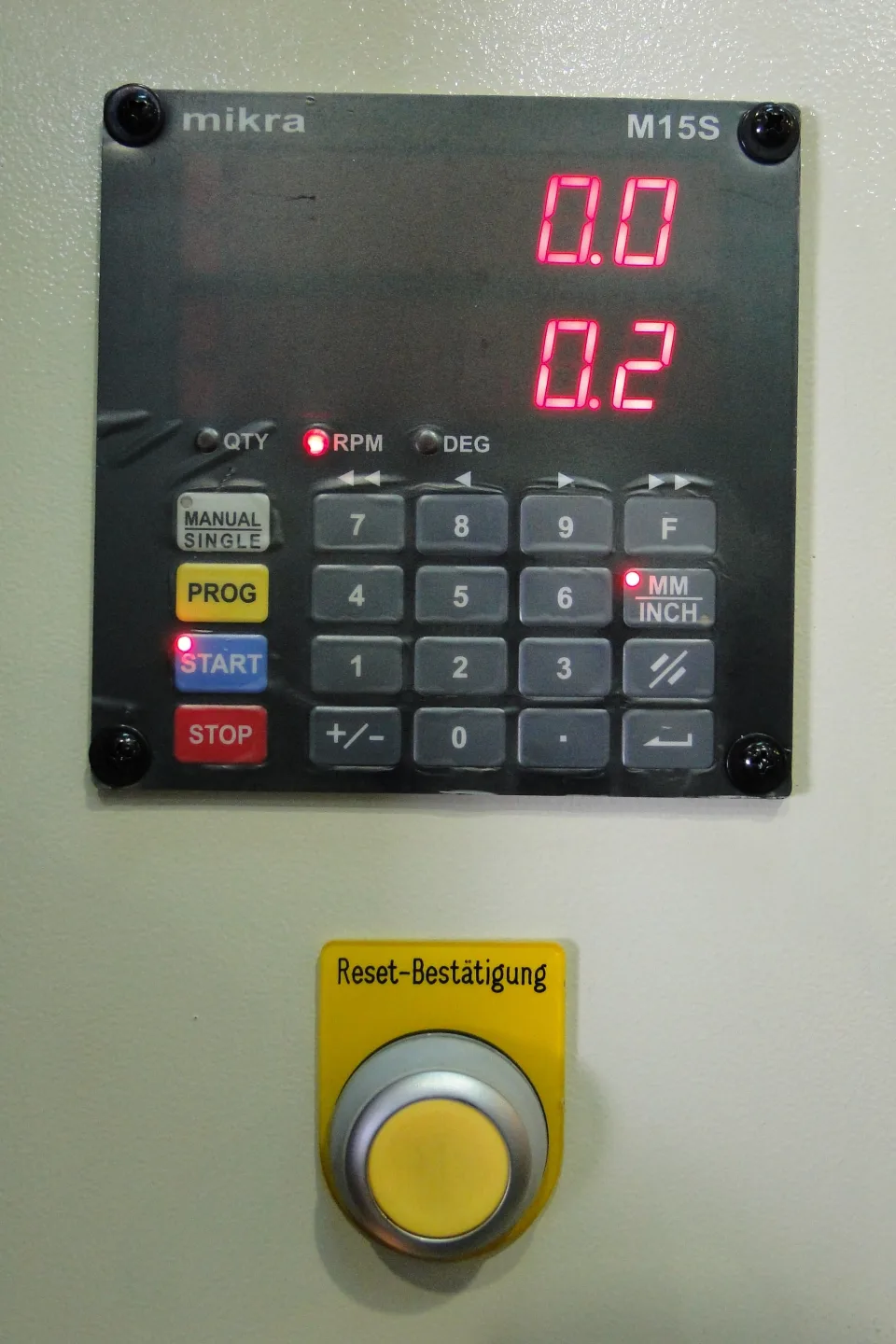

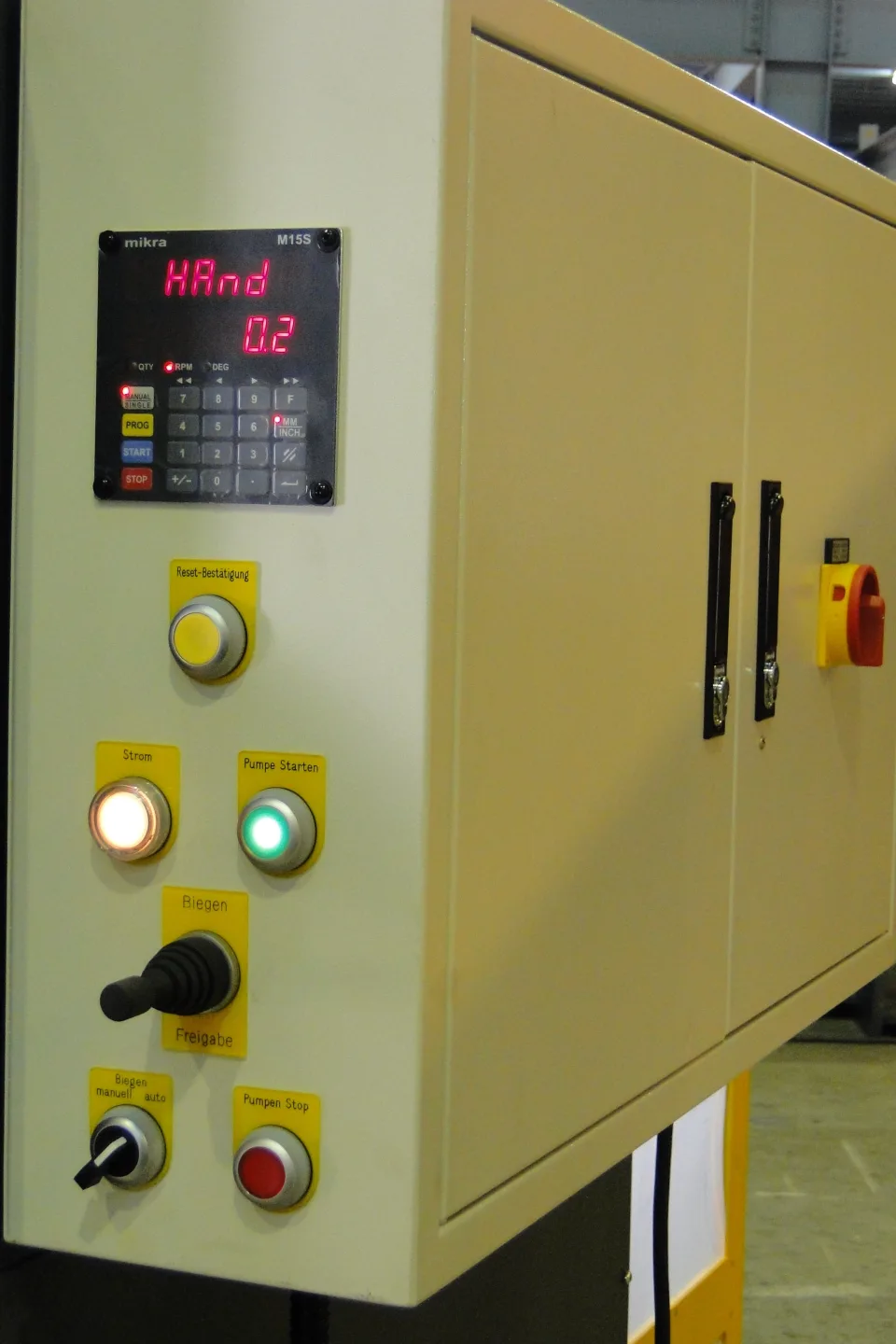

- M15s Digital programmable angle display
- Manual back gauge with hand wheel
- Front detective sensor
- Hold down pressure adjusted by handwheel
- Adjustable hydraulic pressure
- 0 - 135 degree bending angle
- 3 function remote foot pedal
- Maximum bending thickness: 6.5 mm (mild steel)
See below table for other models in this series
Video is of a 3.5mm capacity machine with an older controller
Optional:
- NC Programmable 2 Axis controller
- 800mm programmable backgauge & sheet support
- Extended backgauge 1000mm or 1250mm
- One piece top tool
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Fintek VH Series | VH-0865-6HC | VH-1045-6HC | VH-1065-HC | VH-1245-6HC | VH-1265-6HC | VH-4045-6HC | VH-4065-6HC |
|---|---|---|---|---|---|---|---|
| Bending capacity - Mild Steel | 6.5mm | 4.5mm | 6.5mm | 4.5mm | 6.5mm | 4.5mm | 6.5mm |
| Bending capacity - Stainless Steel | 4.5mm | 3mm | 4.5mm | 3mm | 4.5mm | 3mm | 4.5mm |
| Bending length | 2540mm | 3100mm | 3100mm | 3710mm | 3710mm | 4010mm | 4010mm |
| Motor power | 10HP | 7.5HP | 10HP | 7.5HP | 10HP | 7.5HP | 10HP |
| Gross weight | 6200 kg | 5500 kg | 7100 kg | 7000 kg | 8000 kg | 8000 kg | 8800 kg |
