P&SH-0-0030
Sheet Metal & Fabrication · Notching

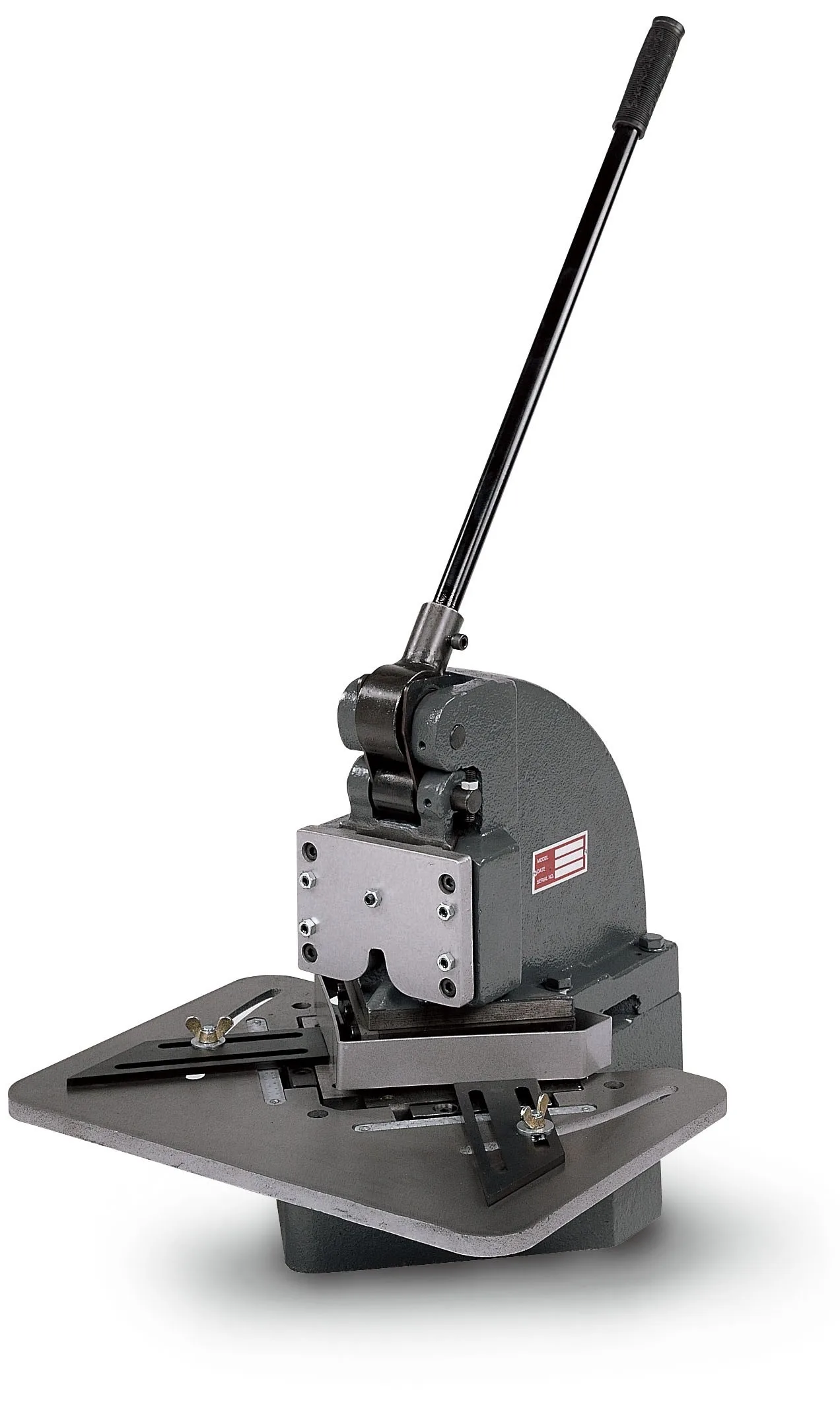

FINTEK ( Taiwan ) Y-16 90 degree notcher
Hand operated 1.6mm capacity Optional stand shown.
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Model
Y-16
Notch max size
152mm x 152mm
Capacity
1.6mm in Mild Steel
Stroke
19mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Hand operated 1.6mm capacity Optional stand shown.
FINTEK made in Taiwan
- 90 Degree corner notcher
- Cast iron construction
- High quality cutting blades
- Adjustable front angle gauges
Optional:

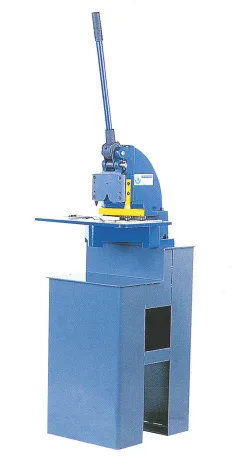

- Floor stand (see picture 2) $250 + GST
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
Y-16
Notch max size
152mm x 152mm
Capacity
1.6mm in Mild Steel
Stroke
19mm
Table size
457mm x 305mm
Nett weight
95 kg + Stand
Dimensions L x W x H
500 x 470 x 700mm + Stand
Packaged dimensions
630 x 600 x 600mm + Stand
