FINTEK ( Taiwan ) Y-16 90 degree notcher
152 x 152 x 1.6mm
POA
P&SH-0-0030 | Prices exclude GST
Product overview
About this machine.

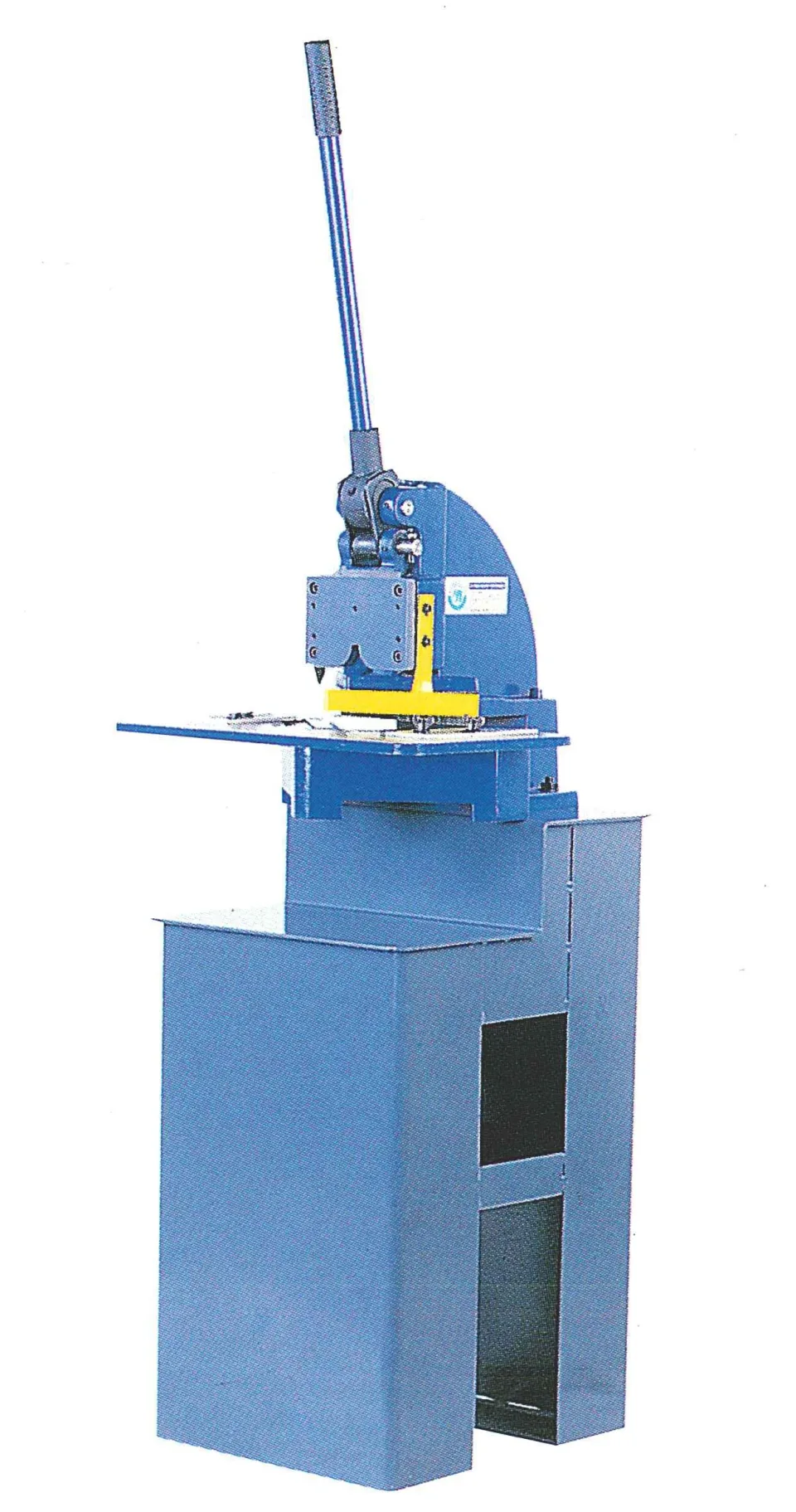

Hand operated 1.6mm capacity Optional stand shown.
FINTEK made in Taiwan
- 90 Degree corner notcher
- Cast iron construction
- High quality cutting blades
- Adjustable front angle gauges
Optional:
- Floor stand (see picture 2) $250 + GST
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
Y-16
Notch max size
152mm x 152mm
Capacity
1.6mm in Mild Steel
Stroke
19mm
Table size
457mm x 305mm
Nett weight
95 kg + Stand
Dimensions L x W x H
500 x 470 x 700mm + Stand
Packaged dimensions
630 x 600 x 600mm + Stand
