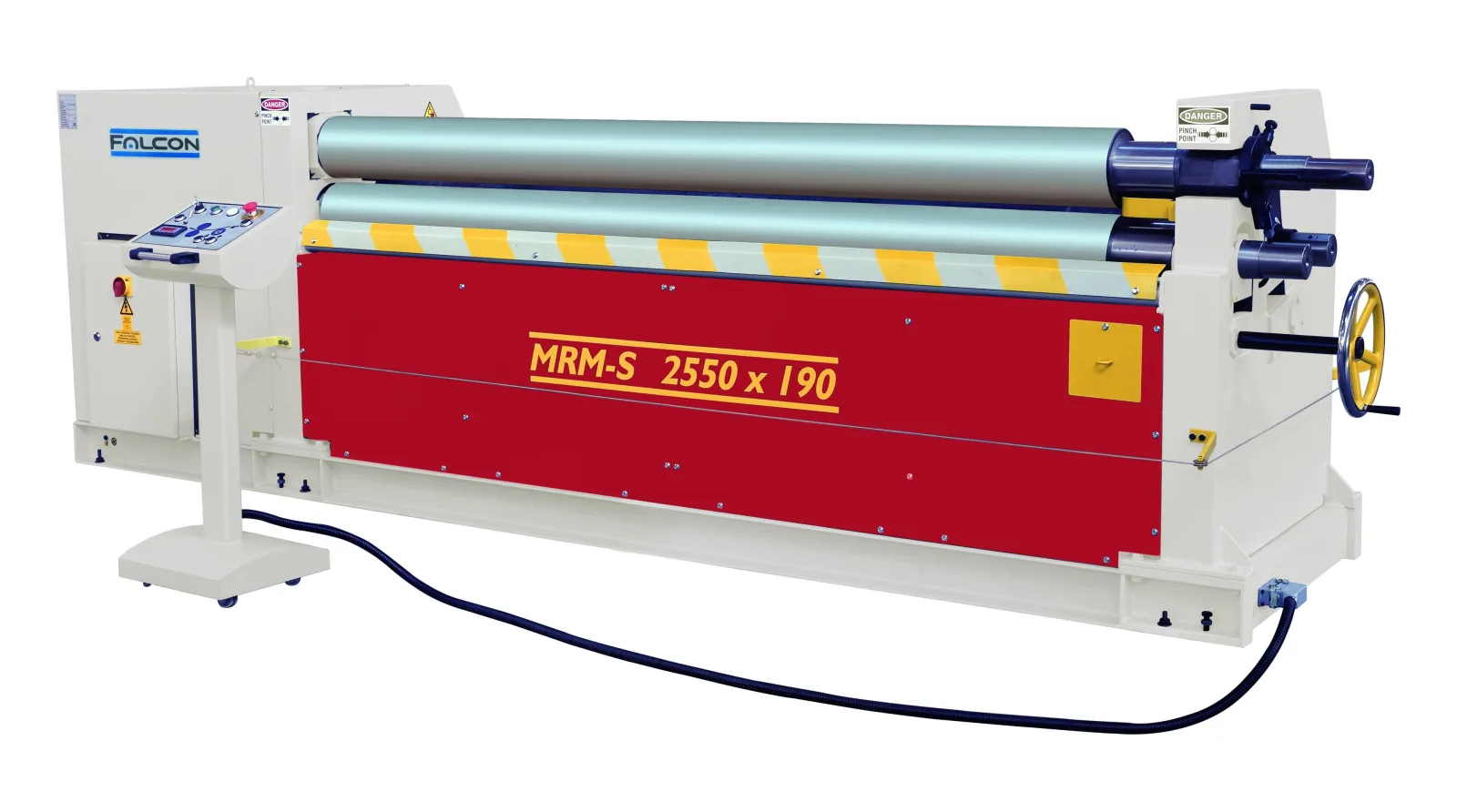

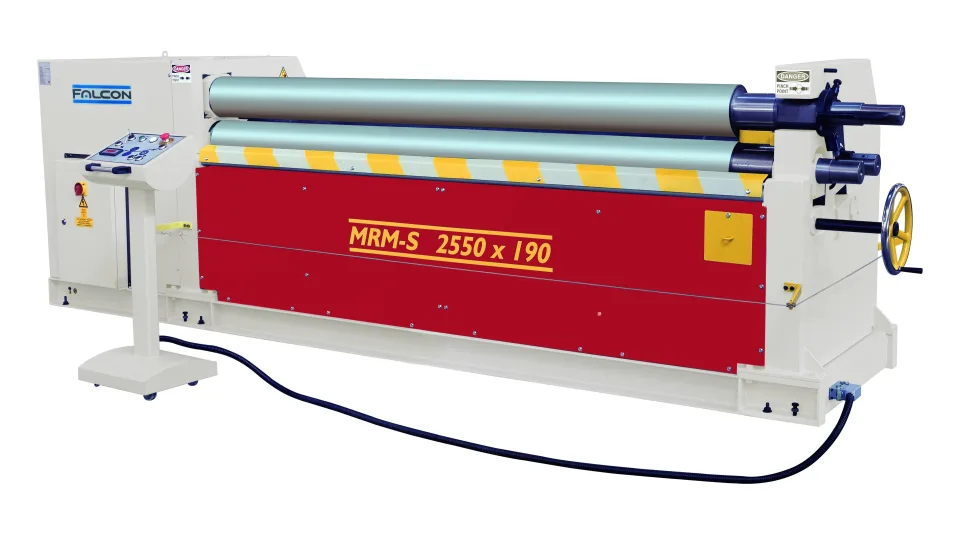

FALCON MRM-S 2550x190 Plate Rolls
1 / 2
FALCON logo ROLL-0-2549

Sheet Metal & Fabrication · Rolling & forming

FALCON MRM-S 2550x190 Plate Rolls

PLATE ROLLS FALCON MRM-S 2550x190 C/W DRO

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

FALCON Model MRM-S 2550x190
Bending length 2550mm
Bending capacity 6mm
Prebending capacity 5mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Falcon has earned a reputation as a workhorse brand for heavy-duty metal forming. This includes, but is not limited to, sheet metal and plate rolling, as well as profile rolling machines. Built with robust welded steel frames and heavy-duty transmission components, Falcon machines are engineered to stand up to daily industrial use under the most demanding conditions. The brand blends European design sophistication with practical functionality, and many machines come with options for full CNC, NC/multi-mode automation, digital readouts, and hydraulic control systems as well as the more simple manually controlled options. Falcon machines are designed for serious performance, whether you're rolling sheet, plate, angle, channel, or pipe; working with flats, solids, or complex profiles, Falcon offers solid and reliable solutions for your rolling needs. With premium hydraulic and electric components from top-tier suppliers, Falcon delivers both power and finesse.

Standard features:

  • Initial pinch style 3 roll machine
  • Two mechanically driven rolls
  • Motorised adjustment of back roll
  • Mobile operator station
  • Conical bending device
  • Central lubrication
  • Precision bending with brake motor
  • CE compliant
  • Swing out top roll for job removal (pic2)

Scott Machinery Features:

  • Digital readout for back roll position
  • Induction hardened rolls

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
FALCON Model MRM-S 2550x190
Bending length 2550mm
Bending capacity 6mm
Prebending capacity 5mm
Roll diameters 190mm
Minimum rolling diameter 285mm
Oil capacity 45 litre
Weight 3400 kg
Dimensions (LxWxH) 4700 x 950 x 1300mm
