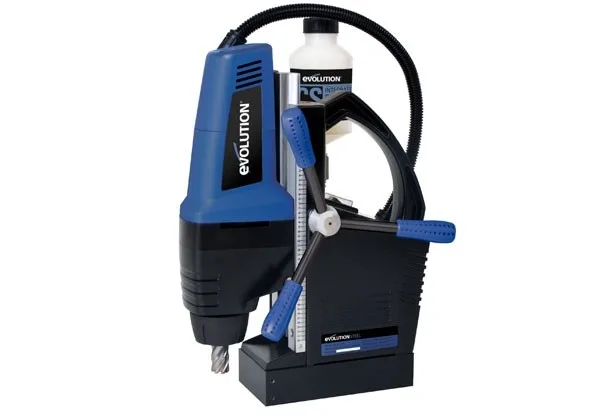

Evolution Evo42 Mag Base Drill
1 / 3
DMAG-0-3042

Workshop Machinery · Drilling machines

Evolution Evo42 Mag Base Drill

Rota Broach Mag Drill 1200w Single Phase

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Shank style Weldon shank ( Rotobroach )
Motor Power 1200W 10A single phase
Magnet strength 1500kg
Weight 11kg
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Evolution mag drills are engineered for fast, accurate, and reliable drilling in heavy steel. Featuring powerful motors and strong magnetic adhesion, they provide stability and precision when working on structural steel, fabrication, and construction projects. Compact and portable, Evolution magnetic base drills are designed for ease of use in both workshop and on-site applications.

The EVO42 magnetic drilling system is a real workhorse, with its powerful 1200-watt motor, and super strong magnetic adhesion, it is ideally suited to those heavy gauge production runs. It also comes with a standard drill chuck.

Features:

  • 1200 W (10 A) powerful motor
  • Cutter capacity up to 42 mm (1-5/8")
  • Max cutting depth 50 mm (2")
  • Twist drill capacity up to 13mm (with included chuck adapter)
  • Strong magnetic base with up to 1500 kg holding force. *Magnetic holding force depends on material thickness and surface condition. Minimum recommended plate thickness 10 mm.*
  • Adjustable head for versatile drilling applications
  • No-load speed: approx. 450 rpm
  • Stroke length: 128mm
  • Integrated coolant system for longer cutter life

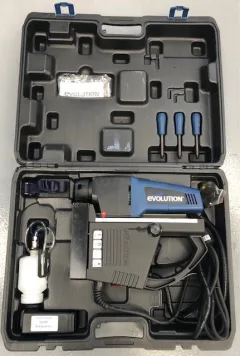

  • Lightweight, portable design with molded carry case
  • Supplied with chuck adapter, hex keys, safety strap, and handles
  • Cutter shank 19mm (Weldon style)
  • 1200w 230v
  • 10.9 kg

Standard equipment supplied with machine:

  • Oil tank, quick release oil pipe, guard, 2.5mm hex key, 8mm wrench, safety chain, carry case

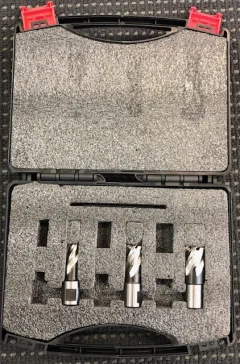

  • Includes: 3 pc (12, 18, 24mm) Cutter Set with Ejector Pin
  • Also includes a 13mm capacity drill chuck and 13mm drill chuck adaptor.

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Shank style Weldon shank ( Rotobroach )
Motor Power 1200W 10A single phase
Magnet strength 1500kg
Weight 11kg
Shipping 525mm x 475mm x 165mm (12kg)
