Evolution Evo42 Mag Base Drill
POA
DMAG-0-3042 | Prices exclude GST
Product overview
About this machine.
Evolution mag drills are engineered for fast, accurate, and reliable drilling in heavy steel. Featuring powerful motors and strong magnetic adhesion, they provide stability and precision when working on structural steel, fabrication, and construction projects. Compact and portable, Evolution magnetic base drills are designed for ease of use in both workshop and on-site applications.
The EVO42 magnetic drilling system is a real workhorse, with its powerful 1200-watt motor, and super strong magnetic adhesion, it is ideally suited to those heavy gauge production runs. It also comes with a standard drill chuck.
Features:
- 1200 W (10 A) powerful motor
- Cutter capacity up to 42 mm (1-5/8")
- Max cutting depth 50 mm (2")
- Twist drill capacity up to 13mm (with included chuck adapter)
- Strong magnetic base with up to 1500 kg holding force. *Magnetic holding force depends on material thickness and surface condition. Minimum recommended plate thickness 10 mm.*
- Adjustable head for versatile drilling applications
- No-load speed: approx. 450 rpm
- Stroke length: 128mm
- Integrated coolant system for longer cutter life
- Lightweight, portable design with molded carry case
- Supplied with chuck adapter, hex keys, safety strap, and handles
- Cutter shank 19mm (Weldon style)
- 1200w 230v
- 10.9 kg
Standard equipment supplied with machine:

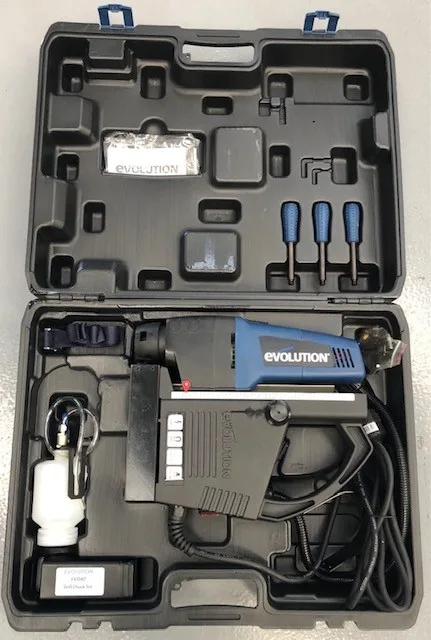

- Oil tank, quick release oil pipe, guard, 2.5mm hex key, 8mm wrench, safety chain, carry case

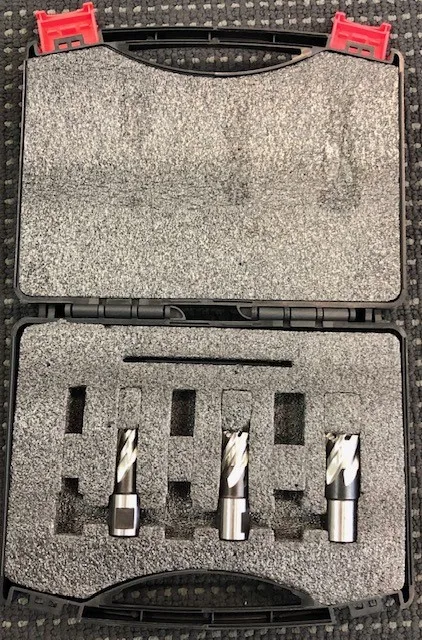

- Includes: 3 pc (12, 18, 24mm) Cutter Set with Ejector Pin
- Also includes a 13mm capacity drill chuck and 13mm drill chuck adaptor.
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Shank style
Weldon shank ( Rotobroach )
Motor Power
1200W 10A single phase
Magnet strength
1500kg
Weight
11kg
Shipping
525mm x 475mm x 165mm (12kg)
