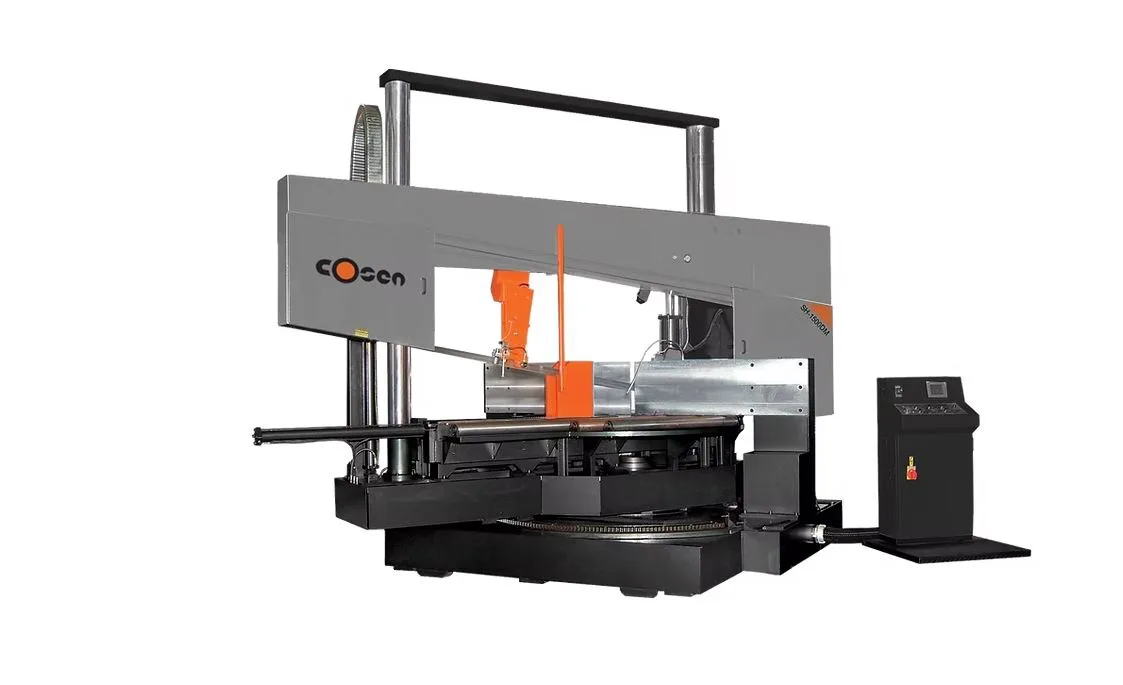

Cosen SH-1500DM Semi Automatic Double Mitre Bandsaw

Name: Cosen SH-1500DM Semi Automatic Double Mitre Bandsaw – Cantilevered
Brand: Cosen
SKU: SAWB-0-6975

Large double mitre bandsaw

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Blade speed range 20 - 75m per minute

Blade size 11,800mm x 67mm x 1.6mm

Blade tension Hydraulic

Coolant pump 0.18kW (1/4HP) (150 litre tank)

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Cosen Saws, established in 1976, have become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years maximizing efficiency and quality in every step of design, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen have also earned ISO-9001 standards as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.

The Cosen SH 1500DM is a heavy-duty industrial bandsaw designed for precise straight and miter cutting in demanding applications. It features a hydraulic dual-column structure with a hydraulically powered cast-iron guide arm and a heavy duty, cast iron, swivel base, enabling straight cuts as well as miter cutting from +60 to -40 degrees. The machine's gearbox is engineered to withstand high lateral cutting forces without thermal distortion and is supported by a motor driven blade brush for consistent blade cleaning. An inverter controlled blade drive system provides infinitely variable blade speeds, while hydraulic blade tensioning, carbide blade guides, and precision bearings ensure stability, accuracy, and long blade life. Cooling and chip management are handled by an adjustable flood coolant system with an additional hose for work bed and auger cleanup. Material clamping is achieved through a cast iron hydraulic vise with split jaws to reduce burr formation, with synchronized vise movement that follows the guide arm. Operator control is provided by a tethered control panel featuring a dual valve system for independent feed pressure and feed rate adjustment, delivering precise and reliable cutting performance.

Features

Quality Taiwanese manufacturing
Double column, cross linked design for superior rigidity and reduced thermal distortion
Canted 10 degree cant saw head, ideal for cutting structural steel and prolonging blade life
Precision ground, chrome plated swivel head offers mitre cuts from -40 degrees to +60 degrees with auto lock
Heavy duty cast iron frame and wide base construction for maximum stability
Hydraulically controlled semi automatic frame lift
Blade vibration dampening device improves cutting performance by up to 20%
Automatic hydraulic blade tensioning for consistent cutting accuracy which releases tension when the saw is turned off
Two additional upper blade support bearings for enhanced stability
Full-stroke hydraulic cast iron vise with split jaws to reduce burr formation
LED blade speed readout on operator interface
Motor driven wire brush for blade cleaning and chip clearance
Adjustable flood coolant system with extended nozzles for improved blade and material cooling
Integrated hydraulic chip conveyor and auger for efficient swarf removal
Precision feed pressure and feed rate controlled via dual-valve hydraulic system
Tethered operator control station for convenient, flexible operation
7" HMI touchscreen with PLC control, "last cut" memory, and "keep on" cycle selector for repeat cuts
Hydraulic infeed lift roller and idle roller table for easier material handling
Electrical and hydraulic safety interlocks throughout the machine
High visibility alert coloring and protected conduits for safe operation
Inverter driven blade motor with planetary gearbox and infinitely variable speed control (20-75 m/min standard, 100 m/min optional)
Independent control cabinet for electronics and power management
Automatic digital angle display

Hydraulic driven movable guide arm for automatic positioning relative to material width

Carbide blade guides with hydraulically actuated support arms for stability and precision
Blade slippage/breakage detection via proximity sensor for enhanced safety and reduced downtime
Hydraulic tank capacity: 80 L
Coolant tank capacity: 150 L
Motor driven blade cleaning wire brush for continuous chip removal
Dual point coolant delivery system for optimal blade lubrication and cooling
Coolant system includes integrated washdown gun for easy cleaning and maintenance
Manually adjustable length stop for repetitive cut positioning
Heavy duty infeed roller table for smoother material handling
Integrated beam light projection system for visual alignment of cut length

Optional accessories

Full stroke hydraulic top clamp
Hydraulic powered Chip conveyor
2m HD Roller table
3m Powered roller table
Harmonics dampener
Automatic wedging Resistance
Vice pressure regulator
Deviation detector (Reduces capacity 100mm but is easily removed)
Laser line (indent only, must be factory fitted)
Mist lubrication cutting system (indent only, must be factory fitted)

Safety:

Latching emergency stop
Safety interlock switch on blade guard
Automatic blade breakage detection
Hydraulic gauge to ensure blade is not over tensioned
All exposed electric wiring and hydraulic circuit are protected by conduits.

CE conformity

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Cosen SH-1500DM
Cosen	SH-1500DM
Capacity	Straight	+/-45deg	+60deg
Round capacity	850mm	850mm	580mm
Width capacity (WxH)	750mm x 1500mm	750mm x 900mm	750mm x 580mm
Blade speed range	20 - 75m per minute
Blade size	11,800mm x 67mm x 1.6mm
Blade tension	Hydraulic
Coolant pump	0.18kW (1/4HP) (150 litre tank)
Hydraulic pump	2.2kW (3HP) (80 litre tank)
Work height	1295mm
Motor power	15kW (20hp) 3 Phase
Floor space(LxWxH)	3400mm x 5760mm x 4200mm
Weight	16,500kg
Shipping	84.5m3 , 16,600kg
