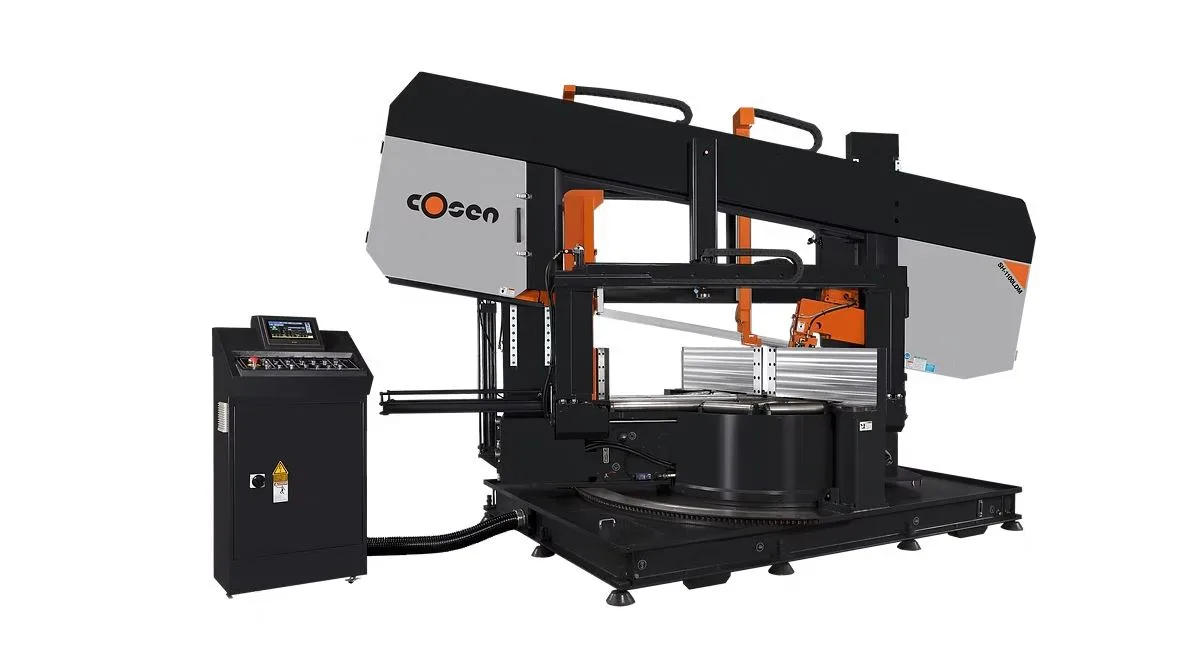

Cosen SH-1100LDM Semi Automatic Double Mitre Bandsaw

Name: Cosen SH-1100LDM Semi Automatic Double Mitre Bandsaw – Cantilevered
Brand: Cosen
SKU: SAWB-0-6911

Large double mitre bandsaw

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Blade speed range 15-120m per minute

Blade size 10,120mm x 67mm x 1.6mm

Bundle width 1120mm

Bundle height 0 - 680mm

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years maximizing efficiency and quality in every step of design, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen have also earned ISO-9001 standards as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.

The Cosen SH 1100LDM is a versatile horizontal double miter-cutting band saw which features a large capacity. With the SH-1100LDM, you can miter-cut either forward or backward up to 60 degrees. The 10 degree blade cant is designed specifically for cutting structural steel such as H-beam, I-beam, channel and profiles at the maximized cutting conditions. Fast & accurate mitering via automatic angle positioning. You can easily key in your desired cutting angle via the HMI touchscreen, and the saw frame will automatically swivel, first quickly then finely positioning to the exact angle with an accuracy of 0.1 degrees. The hydraulically driven saw bow linear guides travel along two linear guides, which allow for a smooth and pulse free up and down movement and durability for long term use. The guide arm travels along one linear guide and moves in sync with the full stroke hydraulic vise to always minimize blade vibration when cutting. The optional full stroke top clamp also moves in sync with the vise, allowing the material, regardless of size and shape, to always be securely held down during a cut. The movable vibration damper device can move and clamp the top of the blade, supporting the blade while cutting material which effectively reduce the blade vibration and high frequency noise.

Features

Quality Taiwanese manufacturing
Double column, linear-guide design for superior rigidity and reduced thermal distortion
Canted 10 degree saw head, ideal for cutting structural steel and prolonging blade life
Automatic, precision ground, chrome-plated hydraulic swivel head positioning with digital angle readout (+/-0.1 degrees)
Heavy duty cast iron frame and wide base construction for maximum stability
Hydraulically controlled semi-automatic saw frame return
Blade vibration dampening device improves cutting performance by up to 20%
Automatic hydraulic blade tensioning system ensures consistent accuracy and releases tension when machine is powered off
Two additional upper blade guide bearings for enhanced stability during cutting
Full-stroke hydraulic cast iron vise with split jaws to reduce burr formation
LED blade speed readout on operator interface
Adjustable flood coolant system with extended nozzles for improved blade and material cooling
Coolant system includes integrated washdown gun for easy cleaning and maintenance
Integrated hydraulic chip conveyor and auger for efficient swarf removal
Precision feed pressure and feed rate controlled via dual-valve hydraulic system
Tethered operator control station for convenient, flexible operation
10" HMI touchscreen with PLC control, "last cut" memory, and "keep on" cycle selector for repeat cuts
Hydraulic infeed lift roller and idle roller table for safer, easier material handling
Electrical and hydraulic safety interlocks throughout the machine
High visibility paint and shielded conduits for enhanced operator safety
Inverter driven 15 hp blade motor with planetary gearbox and variable blade speed control (15-120 m/min standard)
Independent control cabinet for electronics and power management

Hydraulically controlled blade guides for consistent cutting alignment

Hydraulic driven movable guide arm for automatic positioning relative to material width
Carbide blade guides with hydraulically actuated support arms for stability and precision
Motor driven blade cleaning wire brush for continuous chip removal
Manually adjustable length stop for repetitive cut positioning
Heavy duty infeed roller table for smoother material handling
Integrated beam light projection system for visual alignment of cut length

Optional Accessories

Full stroke hydraulic top clamp
Hydraulic powered Chip conveyor
Variable vice pressure regulator
2m roller table (max capacity 3000kg )
3m Powered roller table
Deviation detector ( If available - Reduces capacity 100mm but is easily removed)
Laser line (indent only, must be factory fitted)
Mist lubrication cutting system (indent only, must be factory fitted)

Safety features:

Latching emergency stop
Safety interlock switch on blade guard
Automatic blade breakage detection
Hydraulic gauge to ensure blade is not over tensioned
Safety guarding

CE conformity

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Cosen SH-1100LDM
Cosen	SH-1100LDM
Capacity	Straight	+/-45deg	+60deg
Round capacity	660mm	500	400mm
Width capacity (WxH)	660mm x 1,100mm	660mm x 700mm	660mm x 400mm
Blade speed range	15-120m per minute
Blade size	10,120mm x 67mm x 1.6mm
Bundle width	1120mm
Bundle height	0 - 680mm
Coolant pump	0.37kW (1/2hp)
Hydraulic pump	2.2kW (3hp)
Work height	855mm
Motor power	15hp (11kW) Inverter driven
Floor space(LxWxH)	4,850mm x 4,900mm x 3,400mm
Weight	11,000kg
Shipping	84.5m3 , 11,300kg
