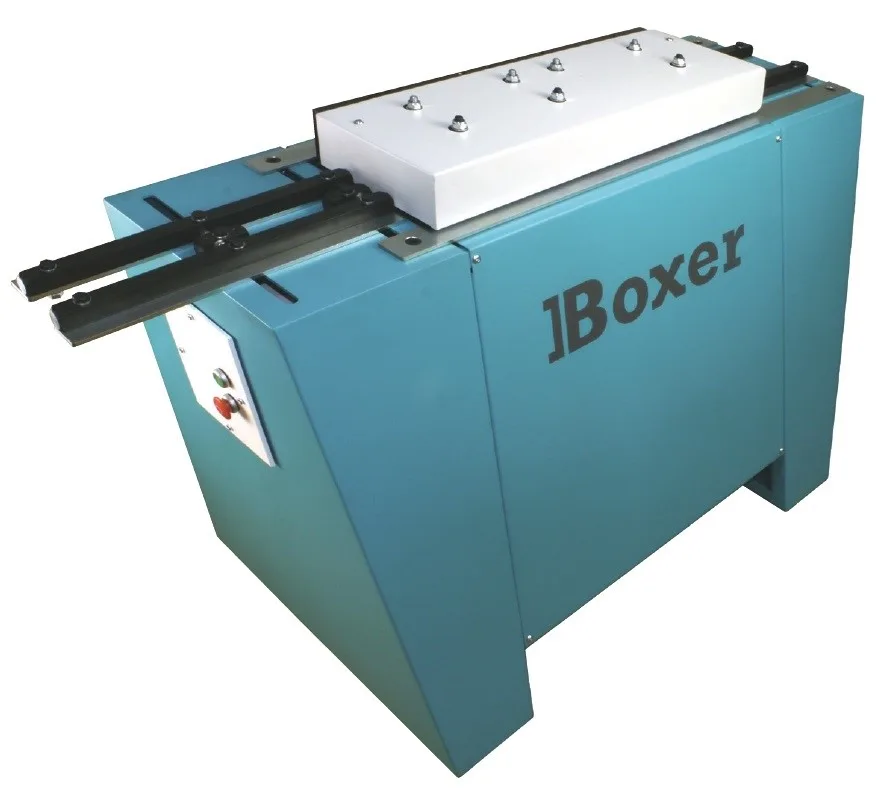

BOXER 16S, 7 station Lock Seamer

16g Pittsburgh style seamer

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Capacity 0.7mm - 1.6mm (16 gauge)
Speed 10 m/min
Motor 415V 3 phase (5amp)
Weight 220kg
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Made in England by Boxer.

The rolling heads of Boxer lockforming machines are manufactured using precision machined components, consisting of hardened and ground shafts, running in needle roller bearings; a silent running integral geared motor; hardened and black oxide coated CNC machined rolls and zinc plated, or blackened components for corrosion resistance.

These heads are supported on aesthetically pleasing stands, which are powder-coated along with all the other guards. Tooling can be specifically setup to suit pre painted steel, PVC coated steel, stainless steel or aluminium.

7 stage machine.

5 stage 20 gauge model available also. Single phase option available for additional cost.

Includes:

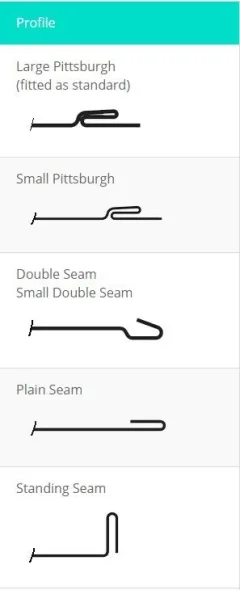

  • Pittsburgh style rolls

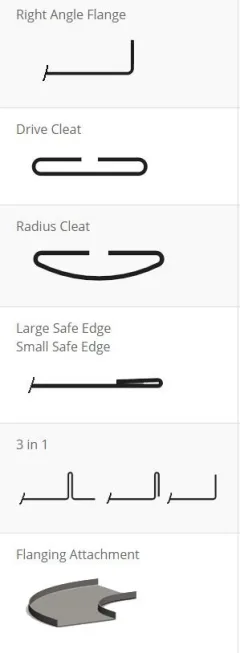

Optional:

  • Flange attachment
  • Double seam rolls
  • Plain seam rolls
  • Standing seam rolls
  • Right angle flange rolls
  • Drive cleat rolls
  • Radius cleat rolls
  • Safe edge rolls
  • S cleat rolls

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity 0.7mm - 1.6mm (16 gauge)
Speed 10 m/min
Motor 415V 3 phase (5amp)
Weight 220kg
Dimensions L x W x H 1550mm x 665mm x 1170mm
