BOXER 16S, 7 station Lock Seamer
Pittsburgh, 3ph
POA
ROLL-0-0070 | Prices exclude GST
Product overview
About this machine.
Made in England by Boxer.

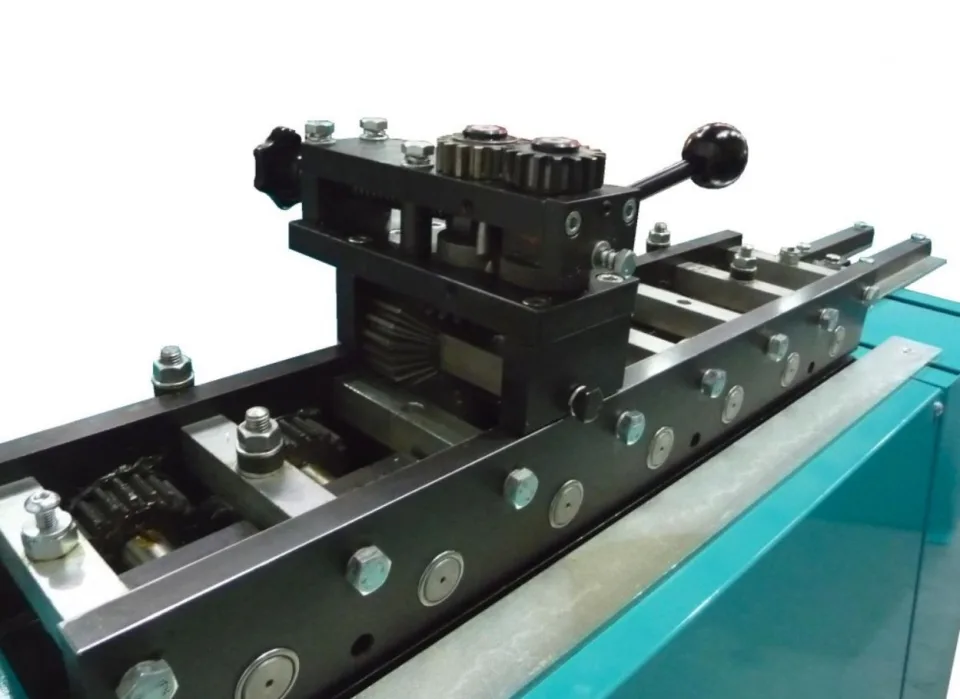

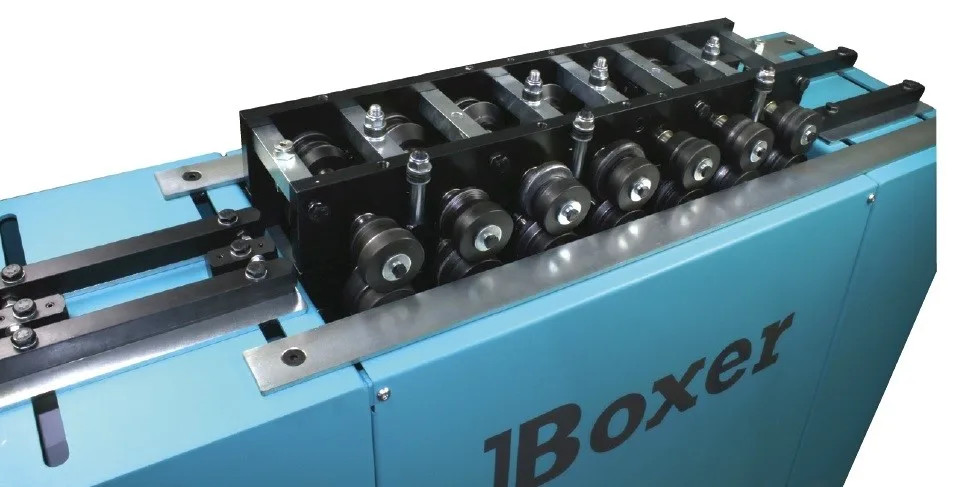

The rolling heads of Boxer lockforming machines are manufactured using precision machined components, consisting of hardened and ground shafts, running in needle roller bearings; a silent running integral geared motor; hardened and black oxide coated CNC machined rolls and zinc plated, or blackened components for corrosion resistance.
These heads are supported on aesthetically pleasing stands, which are powder-coated along with all the other guards. Tooling can be specifically setup to suit pre painted steel, PVC coated steel, stainless steel or aluminium.
7 stage machine.
5 stage 20 gauge model available also. Single phase option available for additional cost.
Includes:

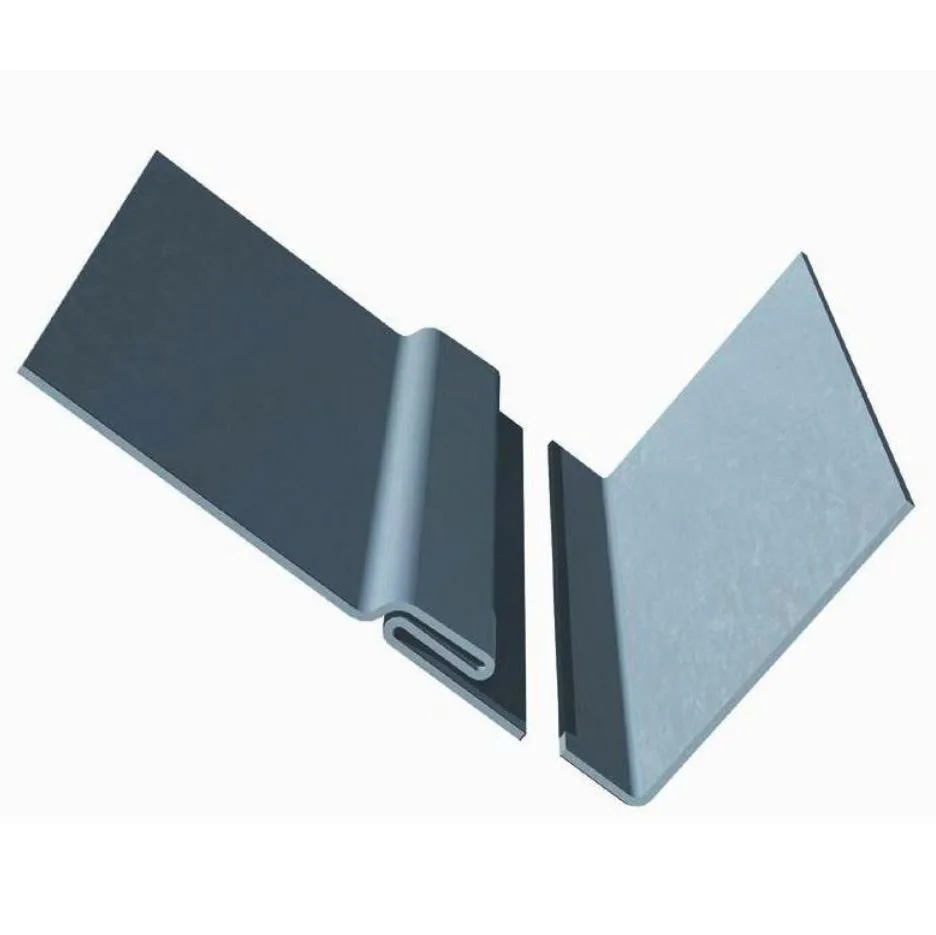

- Pittsburgh style rolls
Optional:

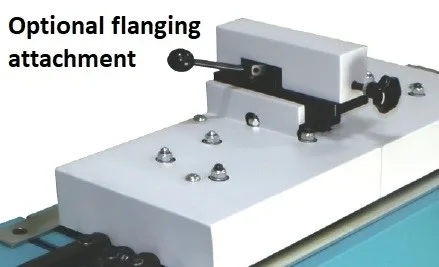

- Flange attachment
- Double seam rolls
- Plain seam rolls
- Standing seam rolls
- Right angle flange rolls
- Drive cleat rolls
- Radius cleat rolls
- Safe edge rolls
- S cleat rolls
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity
0.7mm - 1.6mm (16 gauge)
Speed
10 m/min
Motor
415V 3 phase (5amp)
Weight
220kg
Dimensions L x W x H
1550mm x 665mm x 1170mm
