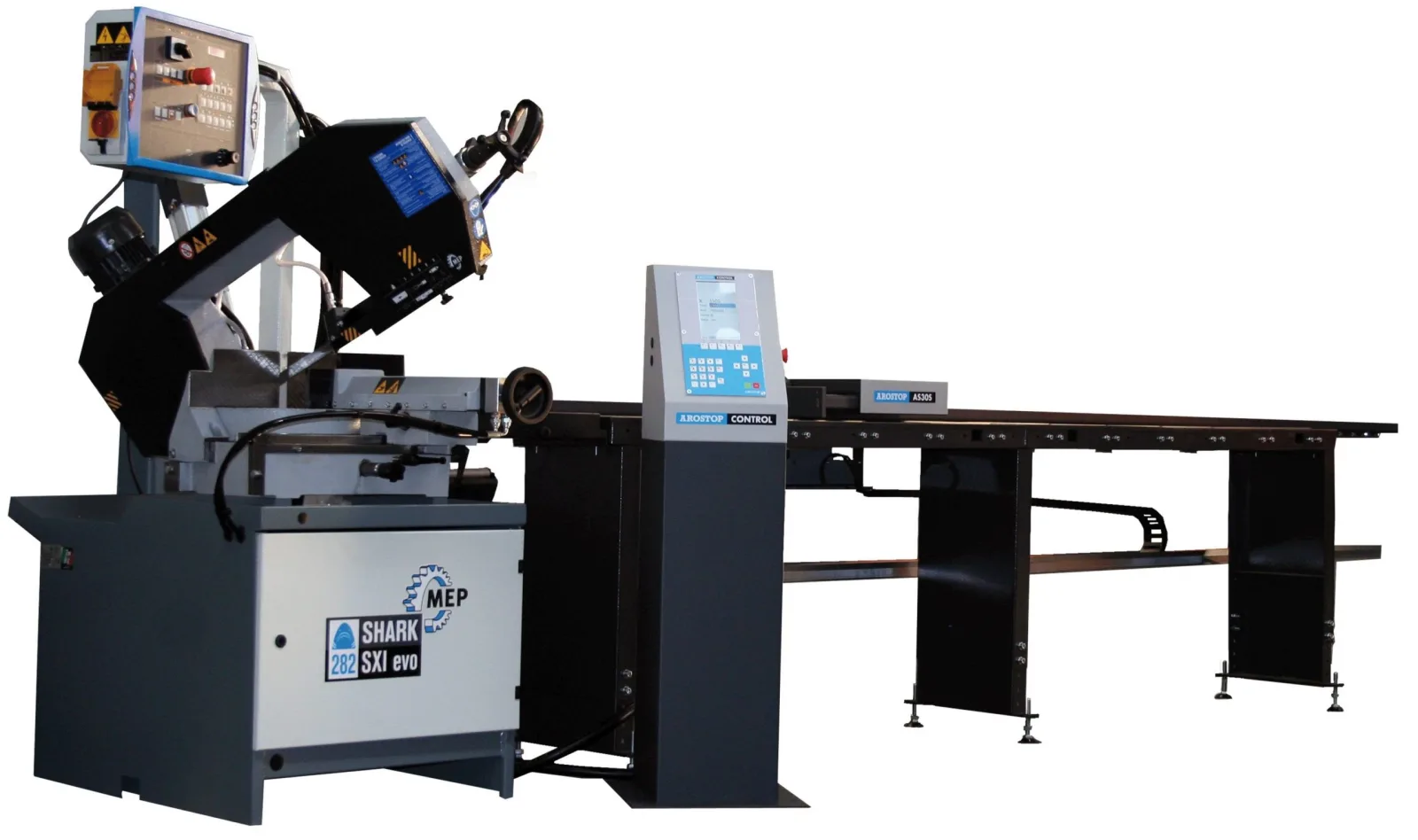

AROSTOP Measuring Systems
AROSTOP is a measuring, feeding, stop system. Available in versions from manual to full automatic.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
Prevent measurement and production errors Save time and costs
The AROSTOP system comes in 2 sizes, and 3 configurations.
AS 30 for machines with a clamping capacity up to 350mm capacity, and the AS 65 is for beyond 350mm capacity machines.
Version M: Manual positioning system with an easy to read digital readout. (Only available as AS 30 M) Version S: Automatic measuring system. Version A: Automatic or pusher measuring system
Systems can easily be set up to the length which is needed, it consists of a base component of 2075mm and can be extended with components of 1925 mm. (Minimum order base + 1 extension).
AROSTOP systems can be used both to the left and right side of the machine they can be used with a saw, drill, horizontal press, punching press or iron worker.
The stop system consists of a large steel angle with a linear guide mounted and low friction linear guides.
Optimised for MEP, but suitable for every roller conveyor.
