AROSTOP Measuring Systems

Product overview

About this machine.

Prevent measurement and production errors Save time and costs

The AROSTOP system comes in 2 sizes, and 3 configurations.

AS 30 for machines with a clamping capacity up to 350mm capacity, and the AS 65 is for beyond 350mm capacity machines.

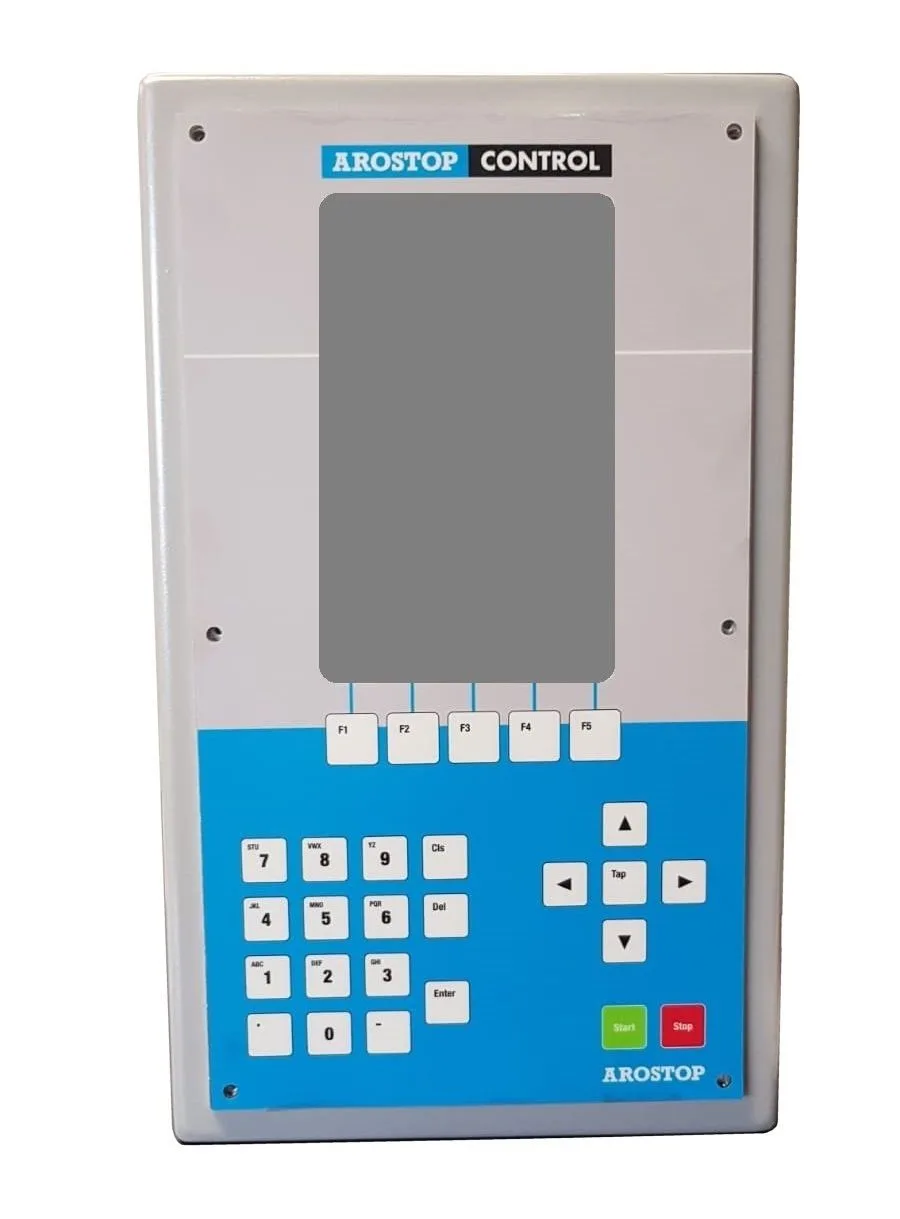

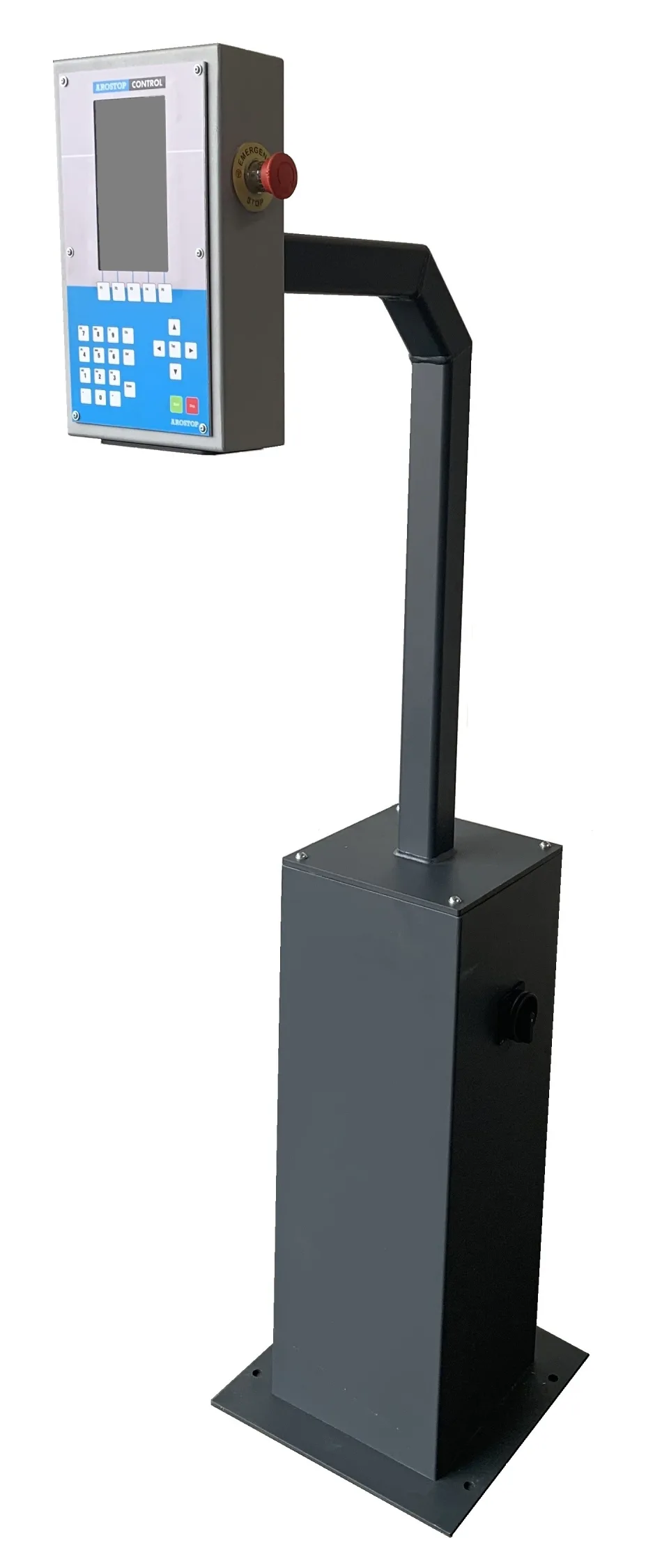

Version M: Manual positioning system with an easy to read digital readout. (Only available as AS 30 M) Version S: Automatic measuring system. Version A: Automatic or pusher measuring system

Systems can easily be set up to the length which is needed, it consists of a base component of 2075mm and can be extended with components of 1925 mm. (Minimum order base + 1 extension).

AROSTOP systems can be used both to the left and right side of the machine they can be used with a saw, drill, horizontal press, punching press or iron worker.

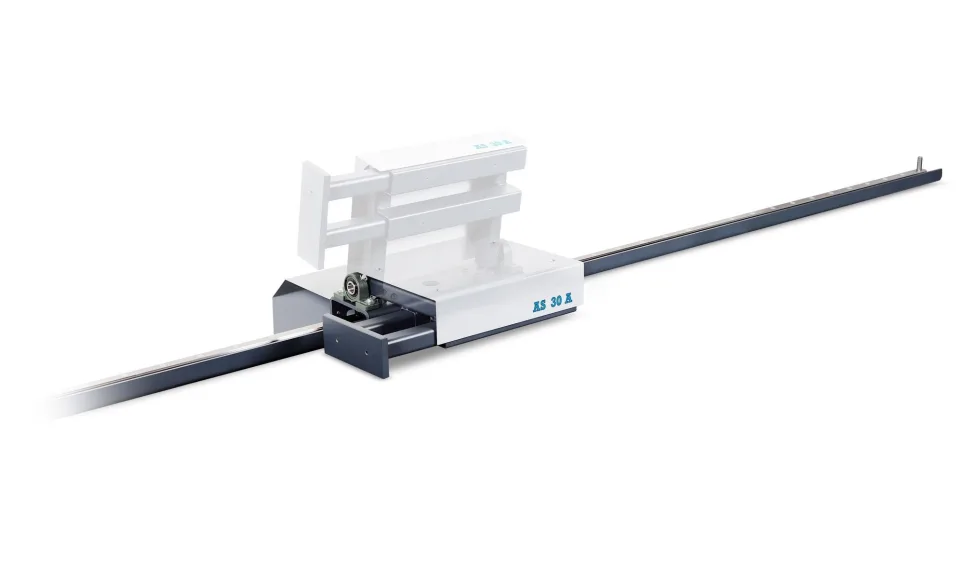

The stop system consists of a large steel angle with a linear guide mounted and low friction linear guides.

Optimised for MEP, but suitable for every roller conveyor.

Watch the youtube videos:
