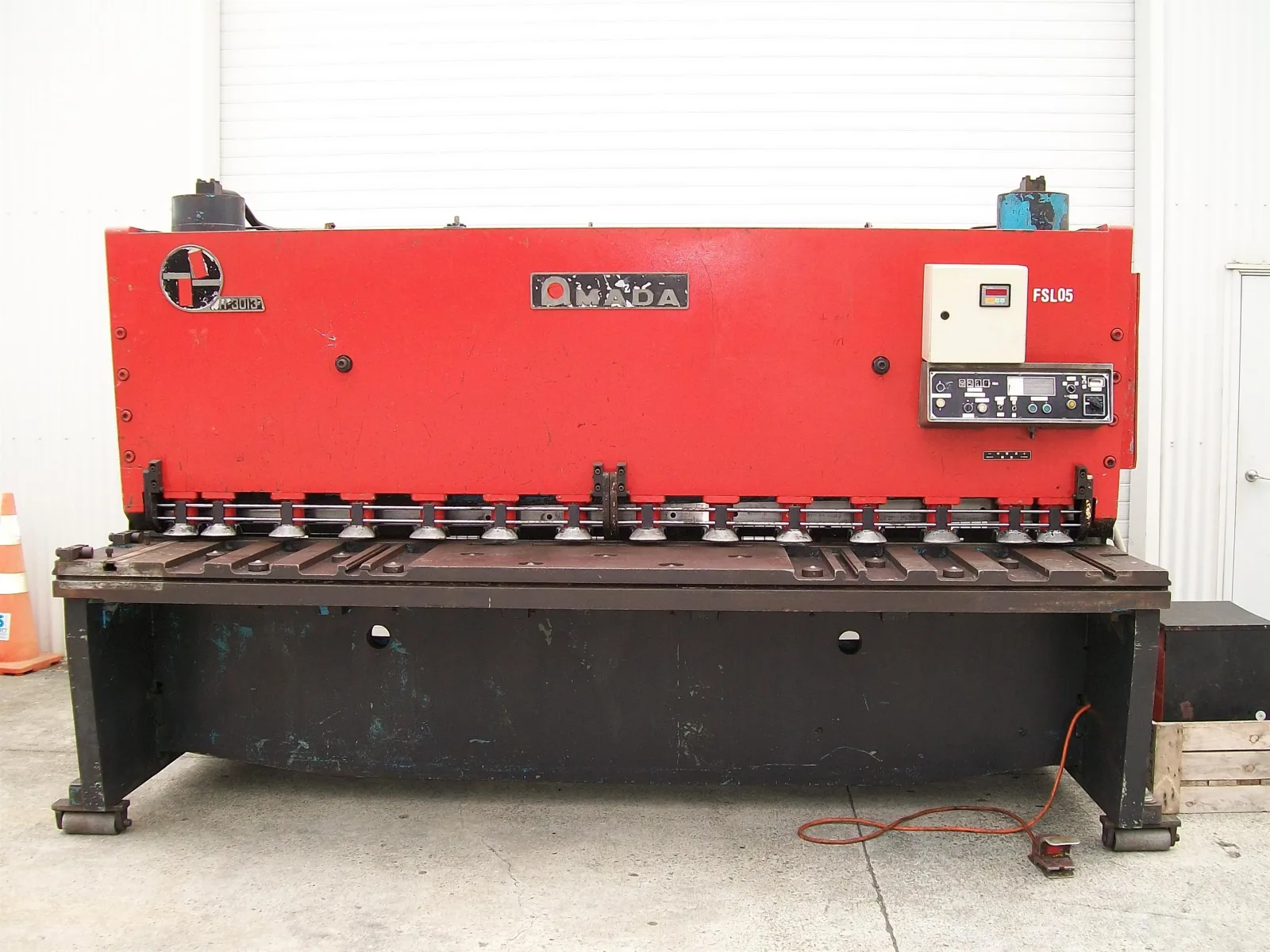

Amada H-3013 3000mm x 13mm Used Hydraulic Guillotine
1 / 15
GHYD-1-3013

Amada H-3013 3000mm x 13mm Used Hydraulic Guillotine

3000mm x 13mm, heavy duty, powered backgauge, adjustable rake, adjustable blade gap.

$34,750.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Capacity (max, mild steel) 3000mm x 13mm
Throat (continuous shearing) 500mm
Backgauge travel 12mm to 1000mm
Rake angle 0 to 3 degrees
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Quality Japanese machine. Heavy duty. Hydraulic operation with powered backgauge, adjustable rake and adjustable blade gap. Note: Doesn't include machine skates or small power cord to transformer. Only test cut to 12mm mild steel.

Features

  • Three phase
  • Heavy duty construction
  • Quality Japanese
  • Hydraulic operation
  • Powered backgauge
  • Backgauge position digital display
  • Adjustable rake
  • Adjustable blade gap
  • Sheet offcut tray (on track type wheels)

Features

  • Remote foot pedal control
  • Rear safety fence with electrical cutout
  • Front blade safety guard
  • Star/delta main motor start
  • Manual oil lube
  • Front sheet supports
  • Squaring arm with scale
  • Work light

Please note:

  • This machine has been powered up and basic functions have been demonstrated as you can see in the video.
  • See the video for more information

We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch

Machine video

See Amada H-3013 3000mm x 13mm in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity (max, mild steel) 3000mm x 13mm
Throat (continuous shearing) 500mm
Backgauge travel 12mm to 1000mm
Rake angle 0 to 3 degrees
Main motor 30 kw
Power supply 415 volts / 50 hz / 3 phase
Freighting details (L x D x H) 5000mm x 2300mm x 2300mm
Weight (approx) 14200 kg
