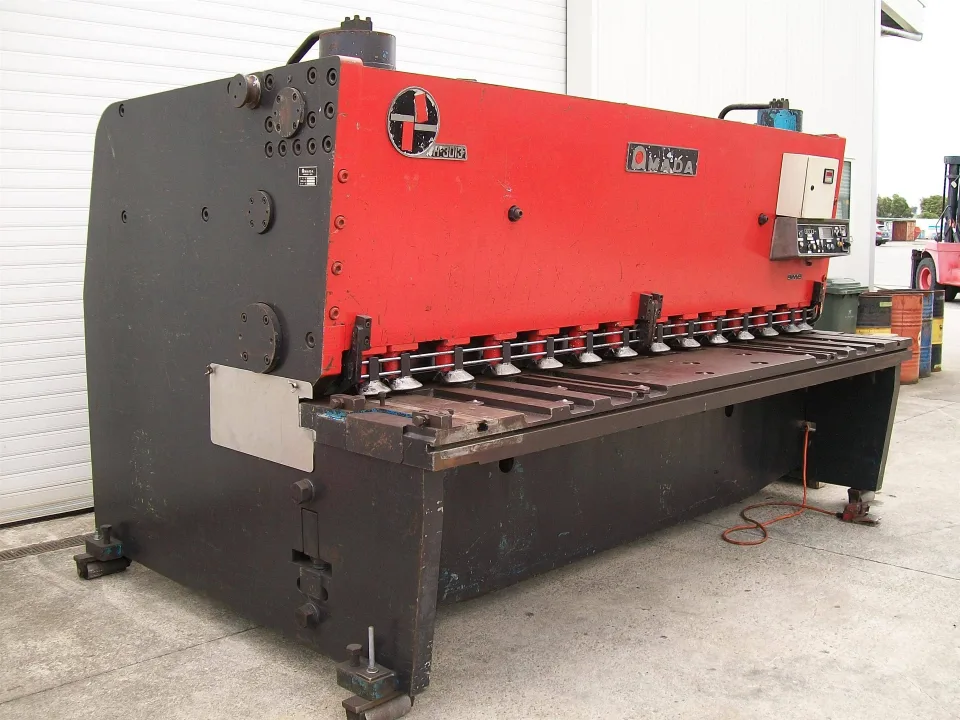

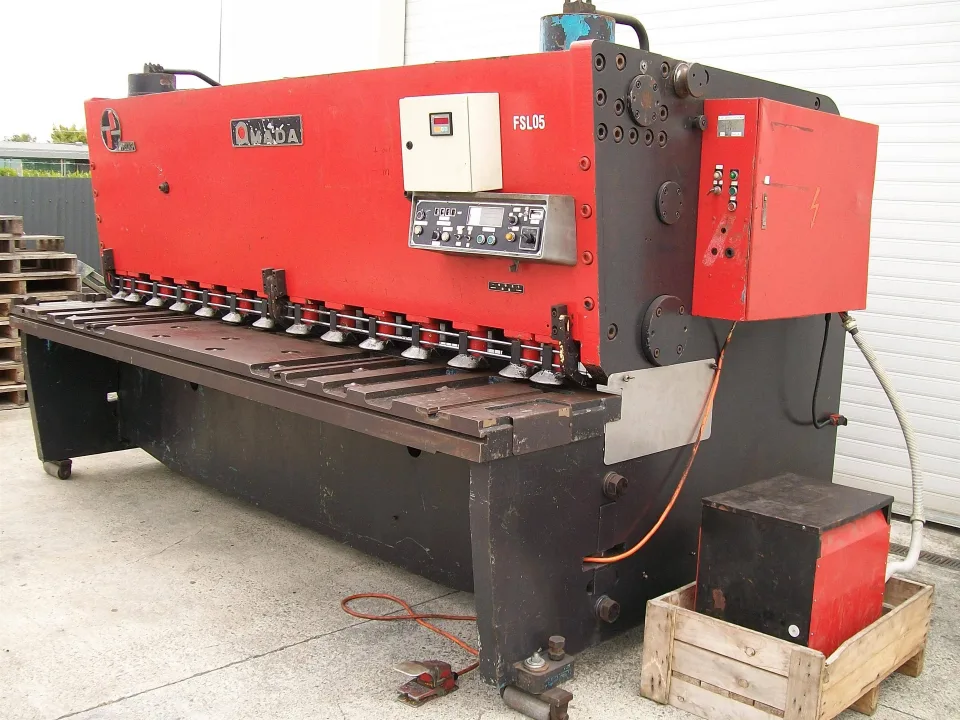

Amada H-3013 3000mm x 13mm Used Hydraulic Guillotine
$34,750.00
GHYD-1-3013 | Prices exclude GST
Product overview
About this machine.
Quality Japanese machine. Heavy duty. Hydraulic operation with powered backgauge, adjustable rake and adjustable blade gap. Note: Doesn't include machine skates or small power cord to transformer. Only test cut to 12mm mild steel.
Features
- Three phase
- Heavy duty construction
- Quality Japanese
- Hydraulic operation
- Powered backgauge

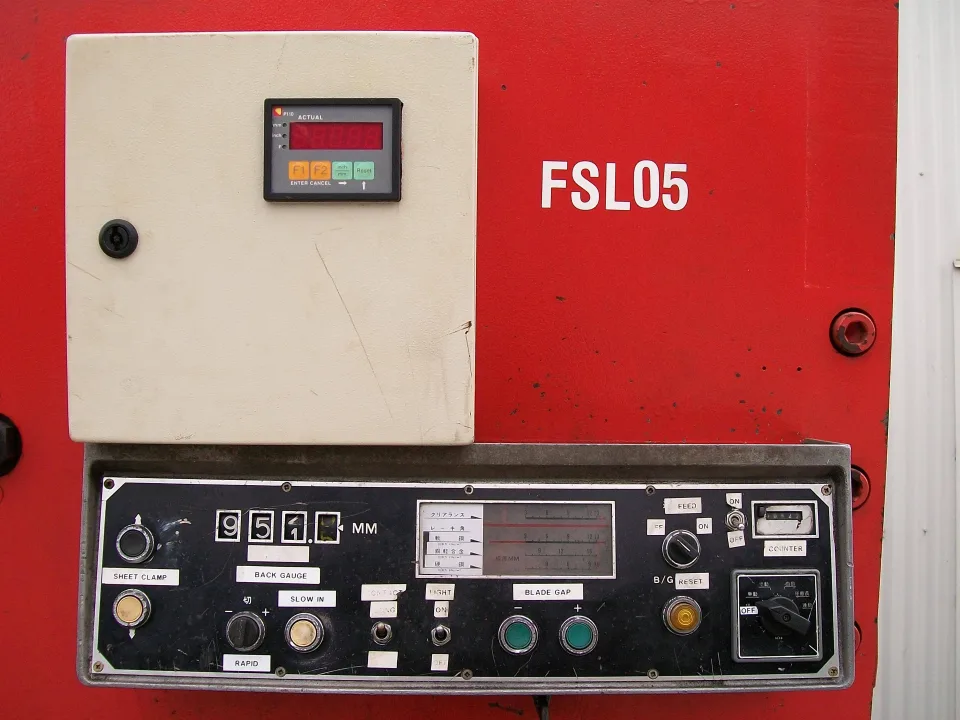

- Backgauge position digital display
- Adjustable rake

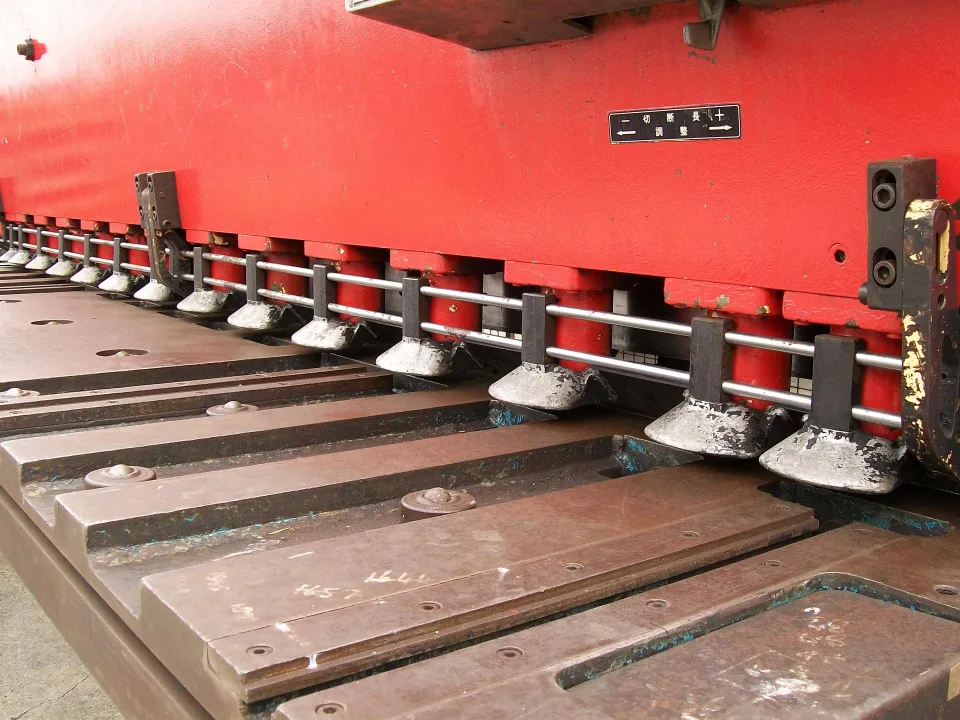

- Adjustable blade gap
- Sheet offcut tray (on track type wheels)
Features
- Remote foot pedal control
- Rear safety fence with electrical cutout
- Front blade safety guard
- Star/delta main motor start
- Manual oil lube
- Front sheet supports
- Squaring arm with scale
- Work light
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity (max, mild steel)
3000mm x 13mm
Throat (continuous shearing)
500mm
Backgauge travel
12mm to 1000mm
Rake angle
0 to 3 degrees
Main motor
30 kw
Power supply
415 volts / 50 hz / 3 phase
Freighting details (L x D x H)
5000mm x 2300mm x 2300mm
Weight (approx)
14200 kg
