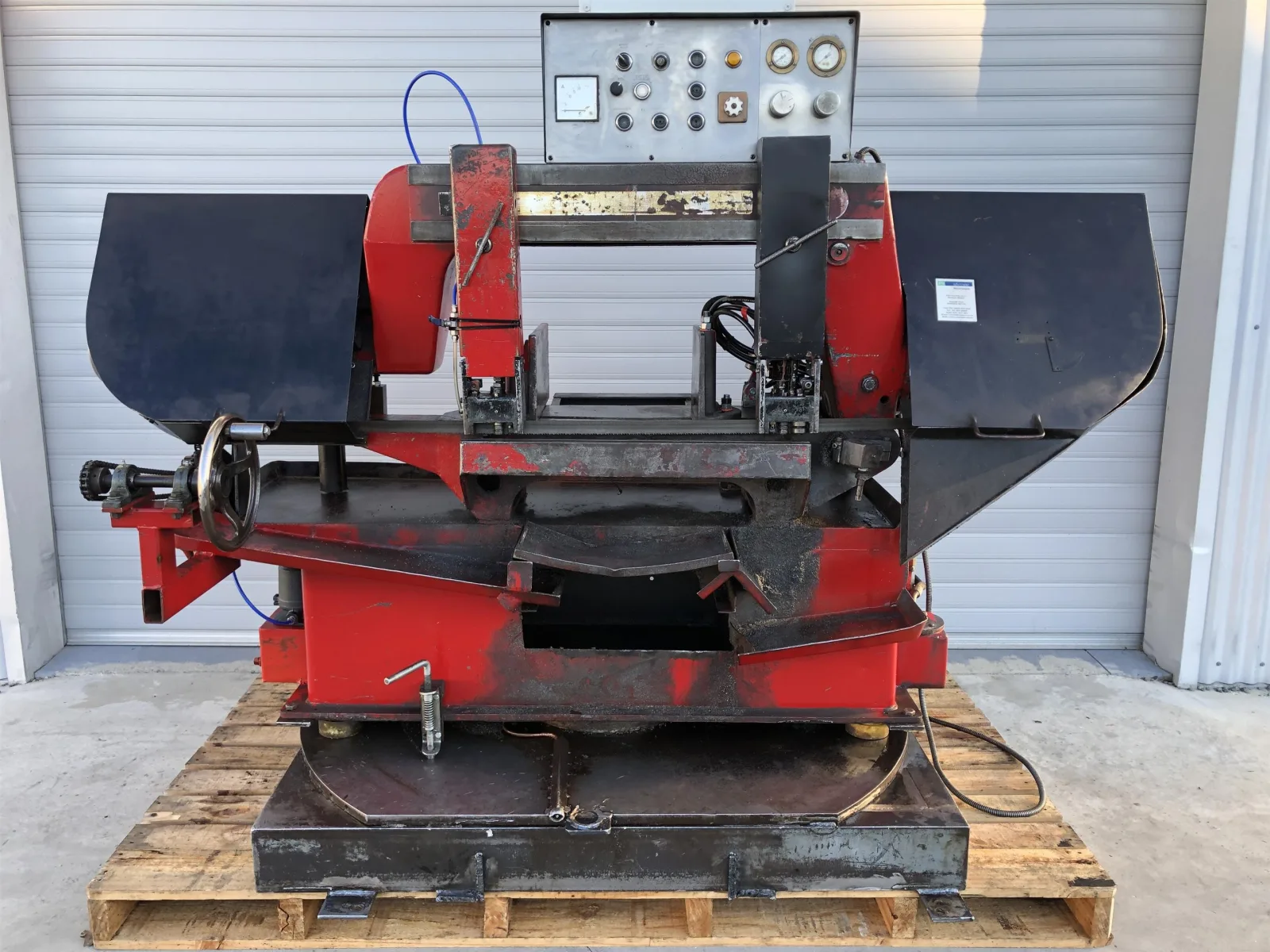

Heavy Duty Used Semi Auto Mitre Bandsaw

400mm round capacity, 460mm Rectangle capacity, Single mitre

$11,900.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Capacity (Round @ 90 degrees) 400mm
Capacity (Rectangular @ 90 degrees) 460mm x 200mm
Blade size 5300mm x 34mm x 1.1mm
Power supply 415 volts / 50 hz / 3 phase
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Large capacity, heavy duty hinge type horizontal bandsaw. Single mitre. Unknown make and model but has German componentry. Runs well.

Note: Has some small oil leaks.

Features

  • Three phase
  • Hydraulic bow rise & fall
  • Semi auto bow return
  • Variable speed drive for blade speed
  • Swivel vice
  • Pivot base for mitre cutting
  • Coolant system
  • Heavy duty blade support
  • 34mm High Bi-Metal blade

Please note:

  • This machine has been powered up and basic functions have been demonstrated as you can see in the video.
  • See the video for more information

We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch

Machine video

See Heavy Duty Used Semi Auto Mitre Bandsaw in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Horizontal Bandsaw
Capacity (Round @ 90 degrees) 400mm
Capacity (Rectangular @ 90 degrees) 460mm x 200mm
Blade size 5300mm x 34mm x 1.1mm
Power supply 415 volts / 50 hz / 3 phase
Freighting details (L x D x H) 2900mm x 1500mm x 2200mm
Weight (approx) 2,000 kg
