Used Laser Safe LZS-003 To suit Hydraulic Press
Laser Safe guarding system for Hydraulic Press
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
LaserSafe is a global leader in press brake safety and control systems, combining advanced optical protection and smart motion control to maximise operator safety and productivity. Their certified solutions enable faster, safer bending operations, trusted by leading machine manufacturers worldwide.
This LaserSafe system is a proven safety and control system designed specifically for hydraulic press brakes. These systems combine precision optical protection with smart motion control to ensure operator safety while maintaining high machine productivity. Manufactured by LaserSafe in Australia, the unit is supported with ongoing service and technical backup directly from the Australian factory, ensuring continued reliability, compliance, and performance.
Features
- Was removed from a fully functioning machine in a working situation.
- Optical protection (dual-laser / block laser field)
- Continuous optical detection zone below the punch tip. Detects obstructions to prevent injury.
- Mute point setup
- The system detects the material position (or tool opening) and lets the operator confirm the "mute point", a safe gap where the optical protection is partially muted to allow forming. It also monitors material thickness and changes.
- Real-time machine speed & stopping distance monitoring The system continuously monitors machine speed and stopping distance, helping ensure the press brake can stop safely once the optical protection is triggered.
- Quick adjust / tool change friendly hardware

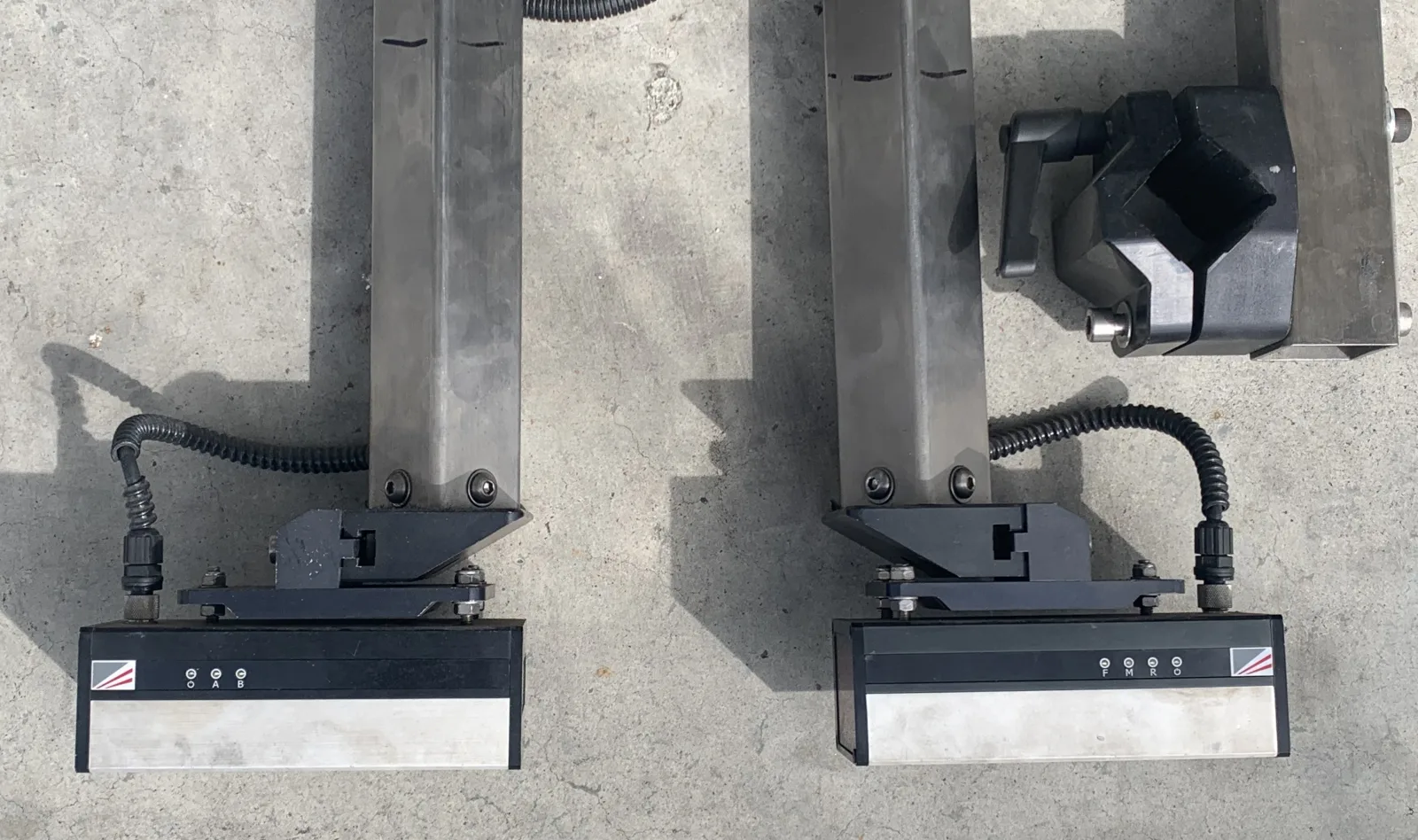

- Brackets or mounts that allow the transmitter (TX) and receiver (RX) to be moved or temporarily cleared easily during tool changes.
- Retrofit capability
- Many models in the Sentinel / Defender family are designed so they can be fitted to existing press brakes (not just new machines) so long as the mechanical mounting and safety compliance is acceptable.
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
Auckland · Christchurch · Nationwide support
