LCNT-0-1340
Workshop Machinery · Conventional lathes
Turret ERL-1340 Premium Quality Centre Lathe CE
342mm swing x 1000mm centres x 40mm bore, Premium quality lathe.
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Swing over bed
342mm
Distance between centres
1000mm
Spindle bore
40mm
Speed range
80 - 2,000 rpm (2 speed motor 60 - 2,570 rpm 16 sp
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.

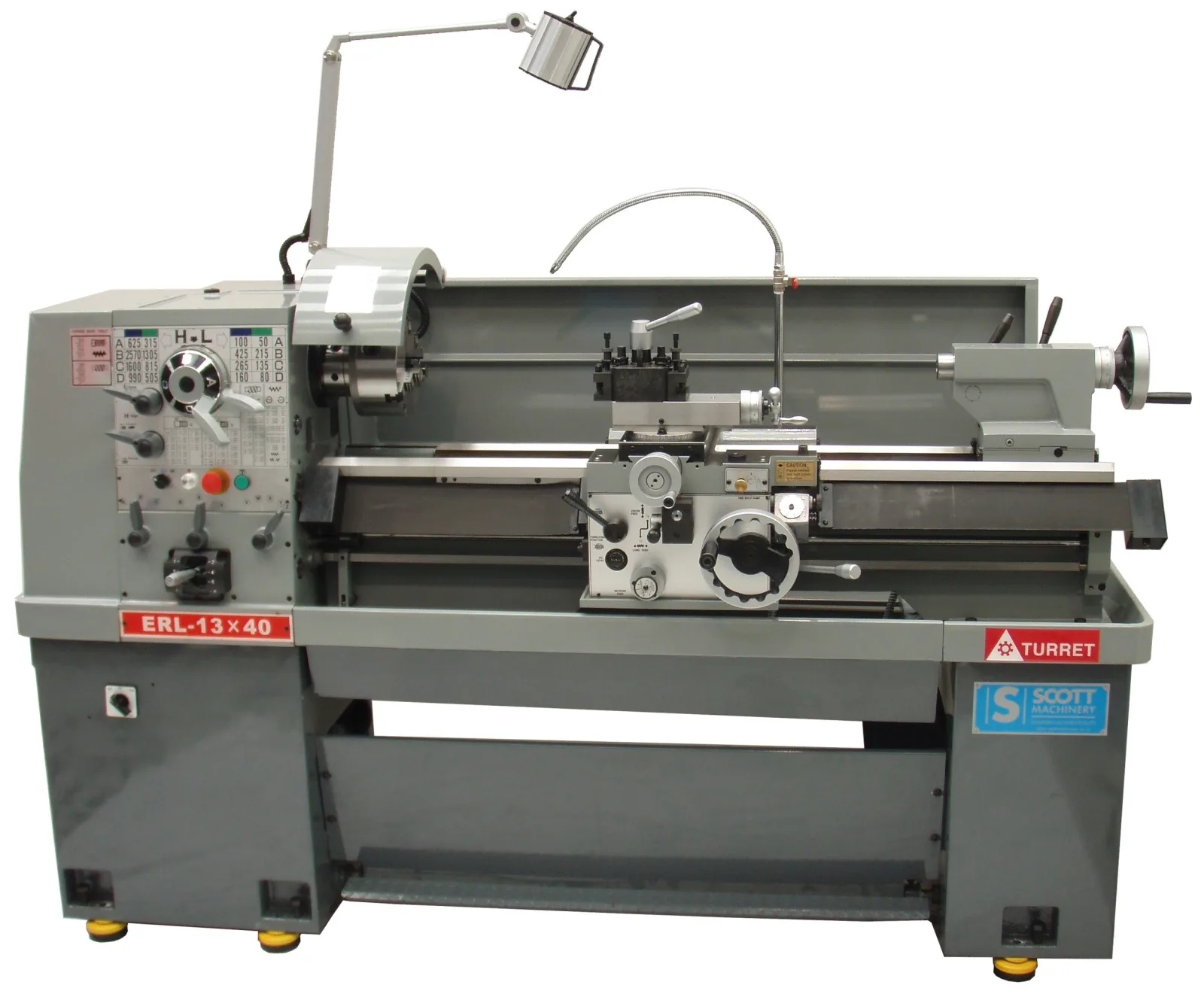

NB: Image shows 1340 model with the following optional accessories: -Italian quick change toolpost, size A -Chuck guard with microswitch -Leadscrew protector -Rubber anti-vibration mounting feet -16 spindle speeds via 2 speed motor
Quality Taiwanese Manufacturing
- Time proven design
- Excellent cutting performance
- High degree of feel & sensitivity
- Feed sensitive clutch on apron
- Pressure headstock lubrication
- D1-4 Camlock spindle
- Gap bed
- Thread dial indicator
- Full length splash guard
- Halogen lamp
- Coolant
- Footbrake
Optional:
- EVS Variable speed system
- 760mm centres straight bed type
- Digital readout system
- 5HP 2 speed motor providing 16 speeds 60 - 2,570 rpm
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
ERL-1340 CE
Swing over bed
342mm
Swing over cross slide
205mm
Swing in gap
512mm
Spindle bore
40mm
Distance between centres
1000mm
Bed width
230mm
Number of speeds
8 ( or Optional 2 speed motor to give 16 speeds)
Speed range
80 - 2,000 rpm (2 speed motor 60 - 2,570 rpm 16 sp
Tailstock taper
3MT
Spindle motor power
3 HP 415v (5HP 2 speed motor optional)
Complete the machine
Tooling and accessories that belong in the discussion.
01

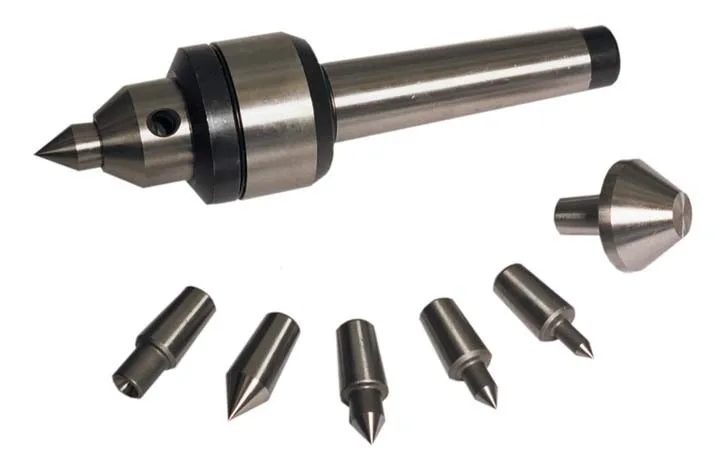

LIVE CENTRE SET 3MT C/W 7 TIPS
A-LATH-0-2053
Include in enquiry
02
Live Centres
WEB-LIVE CENTRES
Include in enquiry
03
Anti Vibration Mounting Feet
WEB-MOUNTING FEET
Include in enquiry
04
Pipe Centres
WEB-PIPE CENTRES
Include in enquiry
05
STGC Turning Tools
WEB-SANDVIK TURNING
Include in enquiry
06
Strong SC Series
WEB-STRONG SC
Include in enquiry
07
Total Coolant Fluids & Oils
WEB-TOTAL OILS
Include in enquiryTalk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
Auckland · Christchurch · Nationwide support
