SHET-0-5180
Workshop Machinery · Compressors & specialist machinery

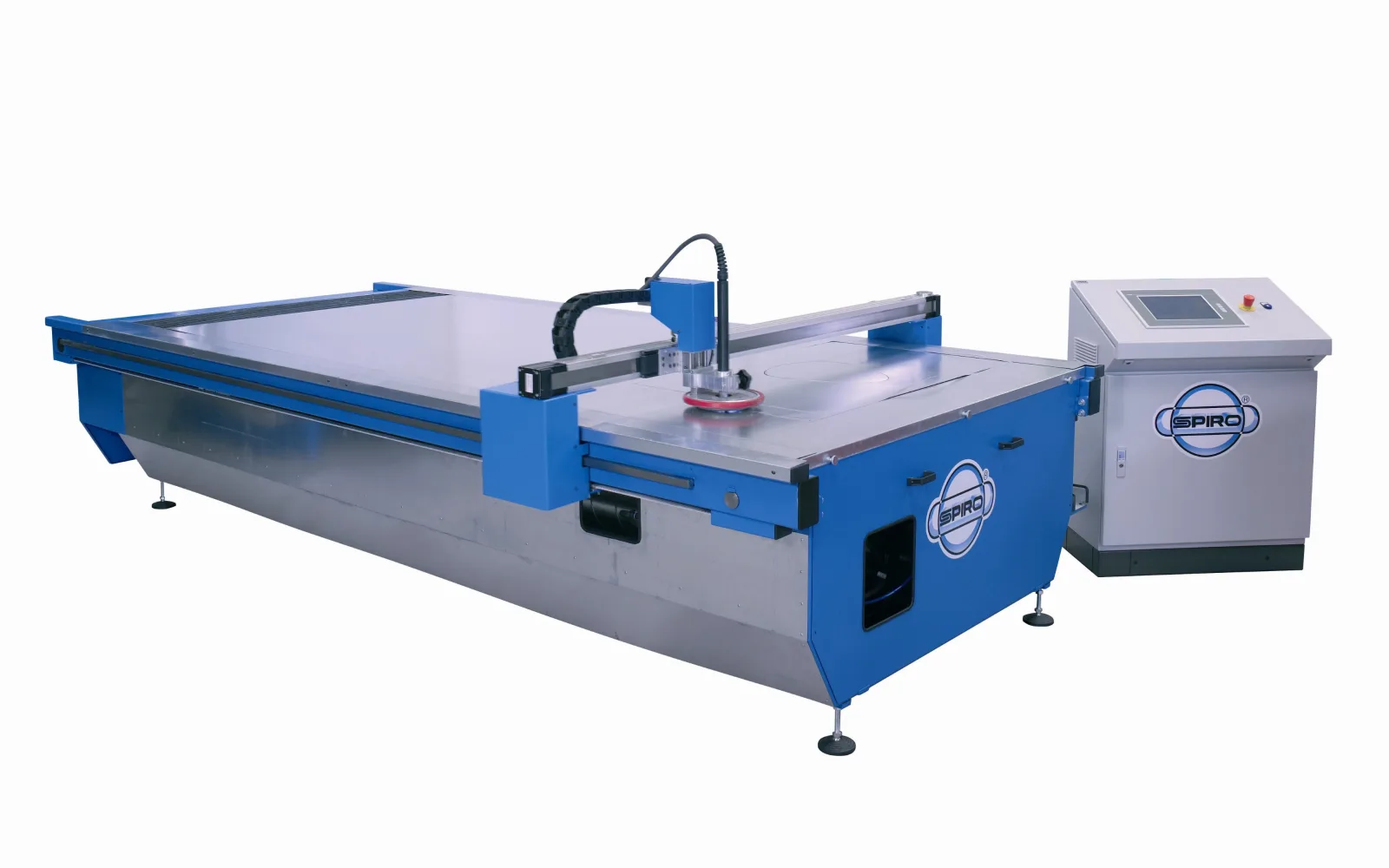

Spiro Florett Plasma Cutter
Plasma Cutter Swiss design. Perfect companion for any sheet metal and HVAC workshop. Featuring SpiroCAM software with advanced parametric HVAC shape library
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
The 3rd generation of the market leading Plasma Cutter is developed and designed with the HVAC Industry in main focus.
This machine offers the most efficient solution and highest output for any HVAC workshop. The latest version of the professional PC based controller Spiro® HS comes with a whole range of new state of the art features.
Our machine always includes the complete HVAC software package, no compromise. Together with the rigid and accurate table design the Spiro® Plasma Florett will serve your company for decades to come.
Spiro CAM is a brand new software which have most of the functions from CAMduct, but has a more modern and easier user interface.
SPIRO® offer the best in the business 2 year warranty.
Key features
- SPIRO HS controller built on a industrial PC designed for tough environment
- State of the art user interface with a large size color touch screen
- LAN, Wi-Fi or USB interface
- Reverse, go back and re-cut
- Step forward/backward functionality
- Chose starting point, any part or contour
- Rip cut from any position
- Remote assistance feature included, easy set-up
Technical Data:
- Work area 3000mm x 1500mm
- Integrated exhaust system
- Synchronized belt drive in X-axis for highest precision
- Enforced belt driven linear unit for Y-axis (bridge), superior lifetime
- Servomotor with high precision gearbox drive X and Y-axis
- Traverse speed up to 40 m/min
Plasma unit:
- Hypertherm Powermax 65-CE
- Start up package of consumables included
Power and Pneumatic supply:
- 400V / 3-phases / 50Hz
- 6bar, min 200l/min
Machine video
See Spiro Florett in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationTalk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
Auckland · Christchurch · Nationwide support
