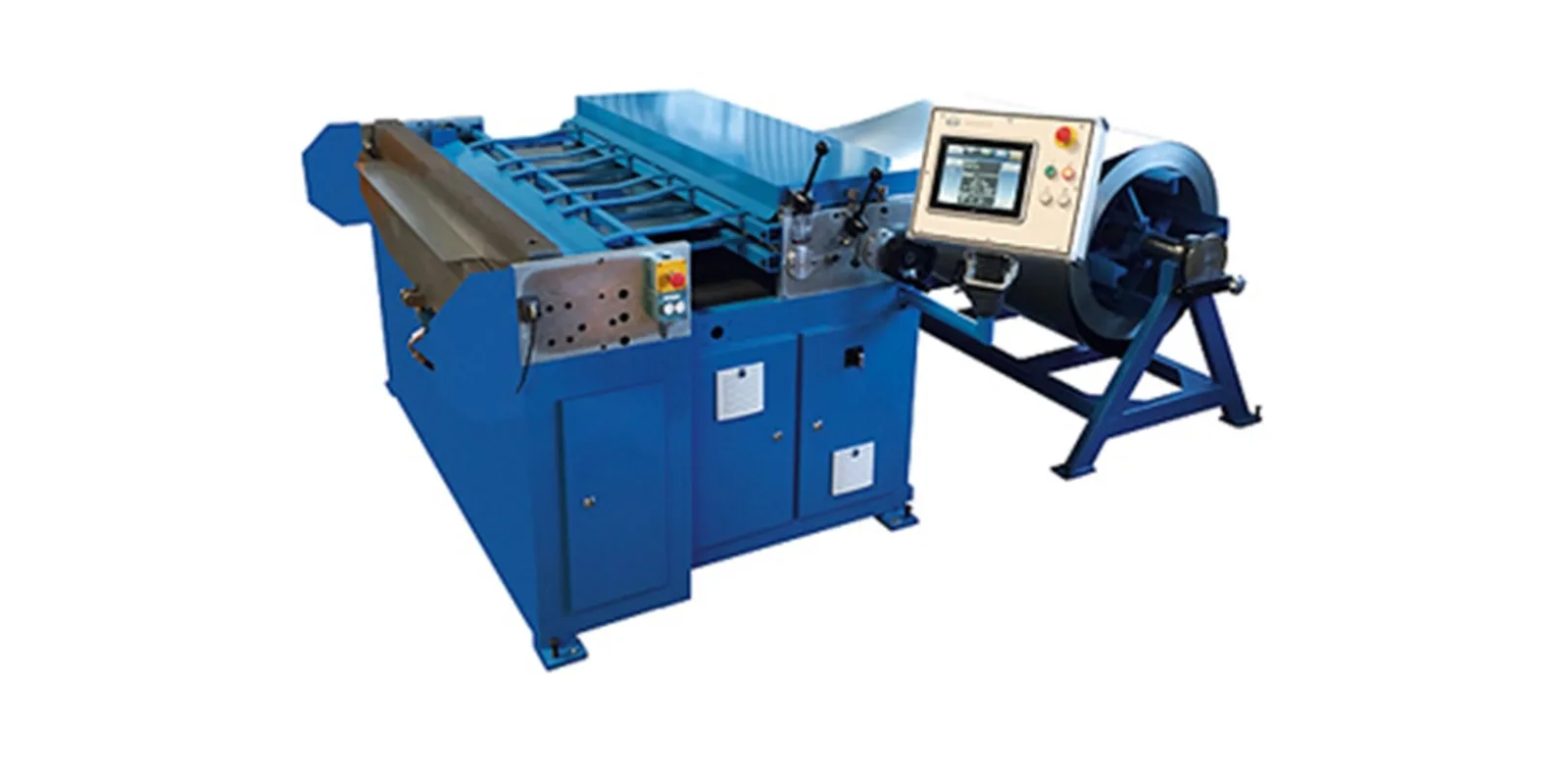

Spiro Ductline
The fast and easy way to produce the highest quality duct work.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
This powerful Ductline offers the highest output with a minimum of floor space required. As standard it’s delivered with the Spiro® state-of-the-art control system. This high performing Ductline has a fully hydraulic drive system which offers maximum force, strength and endurance.
» Unique modular approach to boost your Spiro® Ductline into a fully automatic rectangular duct forming line with integrated flanges - expand gradually or at once, you decide!
» Unique Modular Solution Compact or Fully Integrated - You Decide! Future Module Integration Always Possible Latest Spiro® Technology
SPIRO® offer the best in the business 2 year warranty.
Main Features:
- Touch screen controller with genuine SPIRO® user interface
- Programs for L-sections, U-ducts, fully wrapped ducts or plain sheets
- Z-profile (Trapez-profile and bead as option)
- Fully hydraulic feeding, shear and folding unit
- Quick lubrication system for shear
- Standalone encoder for higher accuracy
Technical Data:
Diameter range:
- Min duct dimension for box sections 125 x 125mm
- Min dimension L-section 10 x 120mm
- Max duct dimension for box sections 2500 x 2500mm
- Max dimension L-section 2500 x 2500mm
Material:
- 0.5 – 1.25mm galvanized
Capacity:
- Up to 5-10 tons/day
Coil data (DCV-5000, add-on):
- Max weight 5000kg/decoiler
- Coil width max 1500mm
- Coil inside Ø360-640mm
Power:
- 400V / 3-phases / 50Hz
Optional Features Available
- Decoilers 5 or 7 tons, up to 6 units
- Rails for decoiler
- Profiling rolls for bead or Trapez reinforcement
- Sheet selector
- Extension to fully automatic line with integrated flange
- Roller Shear slitting unit
- Automatic hydraulic notching units
- Automatic punching system for stays
