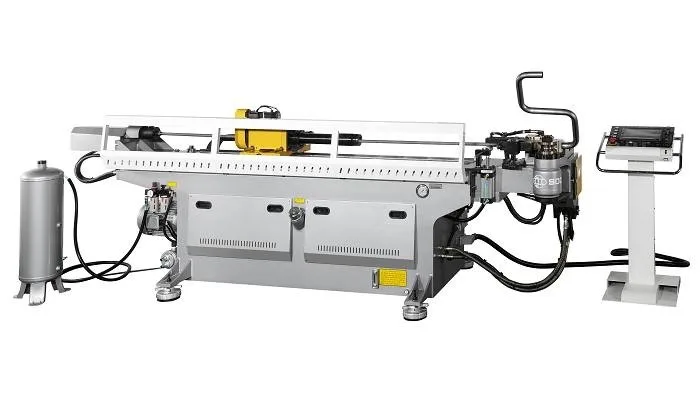

Soco SB-39AUTO Tube Bending Machine

Name: Soco SB-39AUTO Tube Bending Machine
Brand: Soco
SKU: BEND-0-7039

CNC tube bender with a 38.1mm OD capacity

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

CNC tube bending with a capacity of up to 38.1mm OD Fully automatic Three programmable axes (2x electric - 1x hydraulic) • Feeding (Servo electric) • Rotation (Servo electric) • Bending (Hydraulic)

High quality Taiwanese manufacturing

Touch screen control
Electric servo controlled feeding & rotation axes to ensure high precision (+/- 0.2mm & +/- 0.2°)
Hydraulic bending precision up to +/- 0.2°
Automatic spring back compensation
Data input by XYZ or YBC coordinates

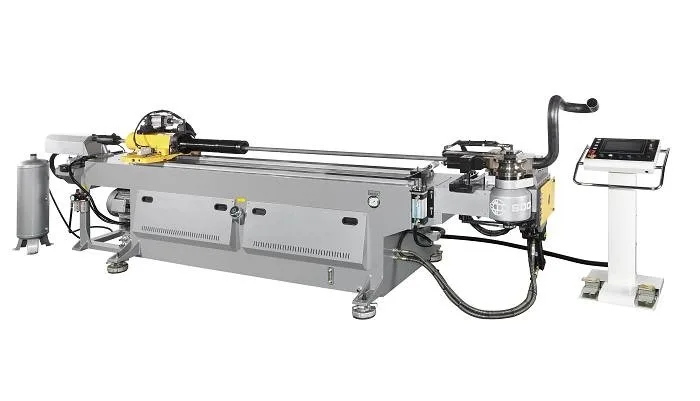

Note-Video shows larger capacity SB-63 model

Capacity

Mild steel - 38.1mm OD x 2.0mm wall thickness tube at 1.5 x OD bending radius
Stainless steel - 38.1mm OD x 1.4mm wall thickness tube at 1.5 x OD bending radius
Maximum 200mm bending radius in standard model
Maximum of 1800mm single stroke feed in standard model

Machine video

See Soco SB-39AUTO in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
