SAWC-1-8997

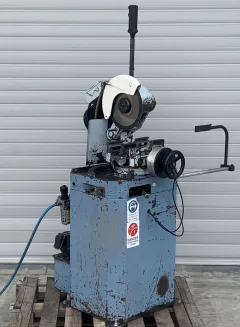

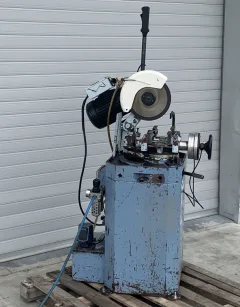

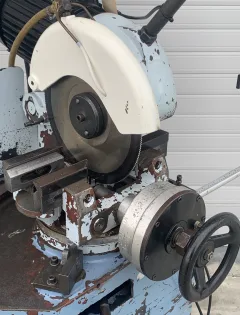

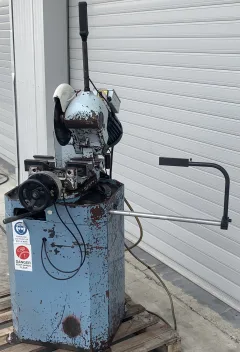

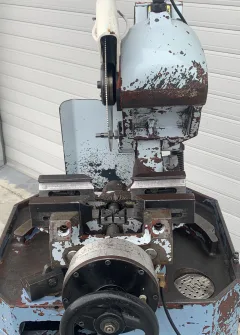

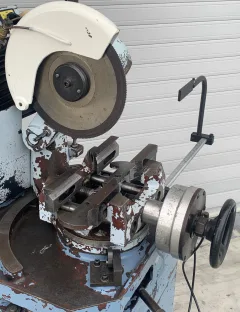

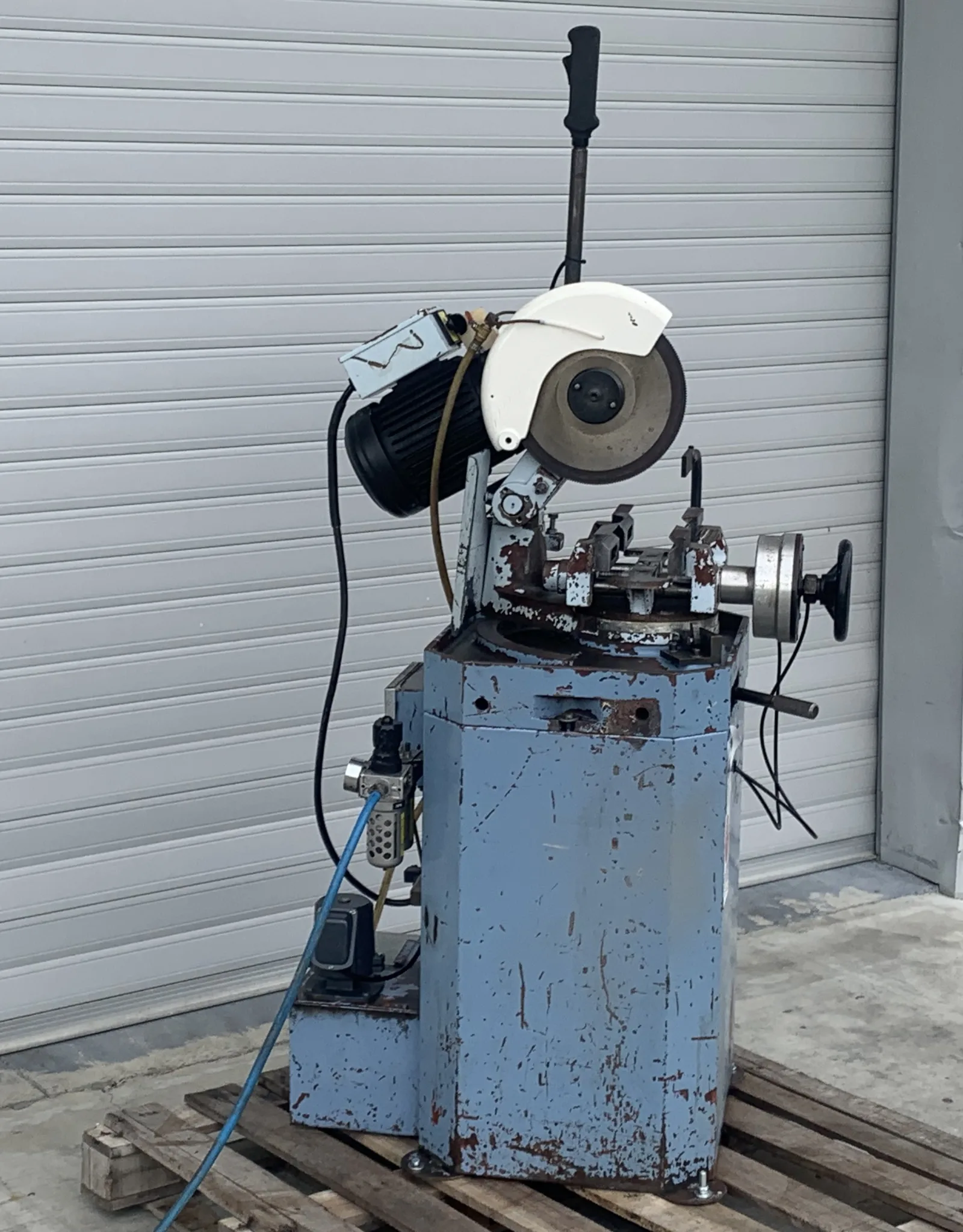

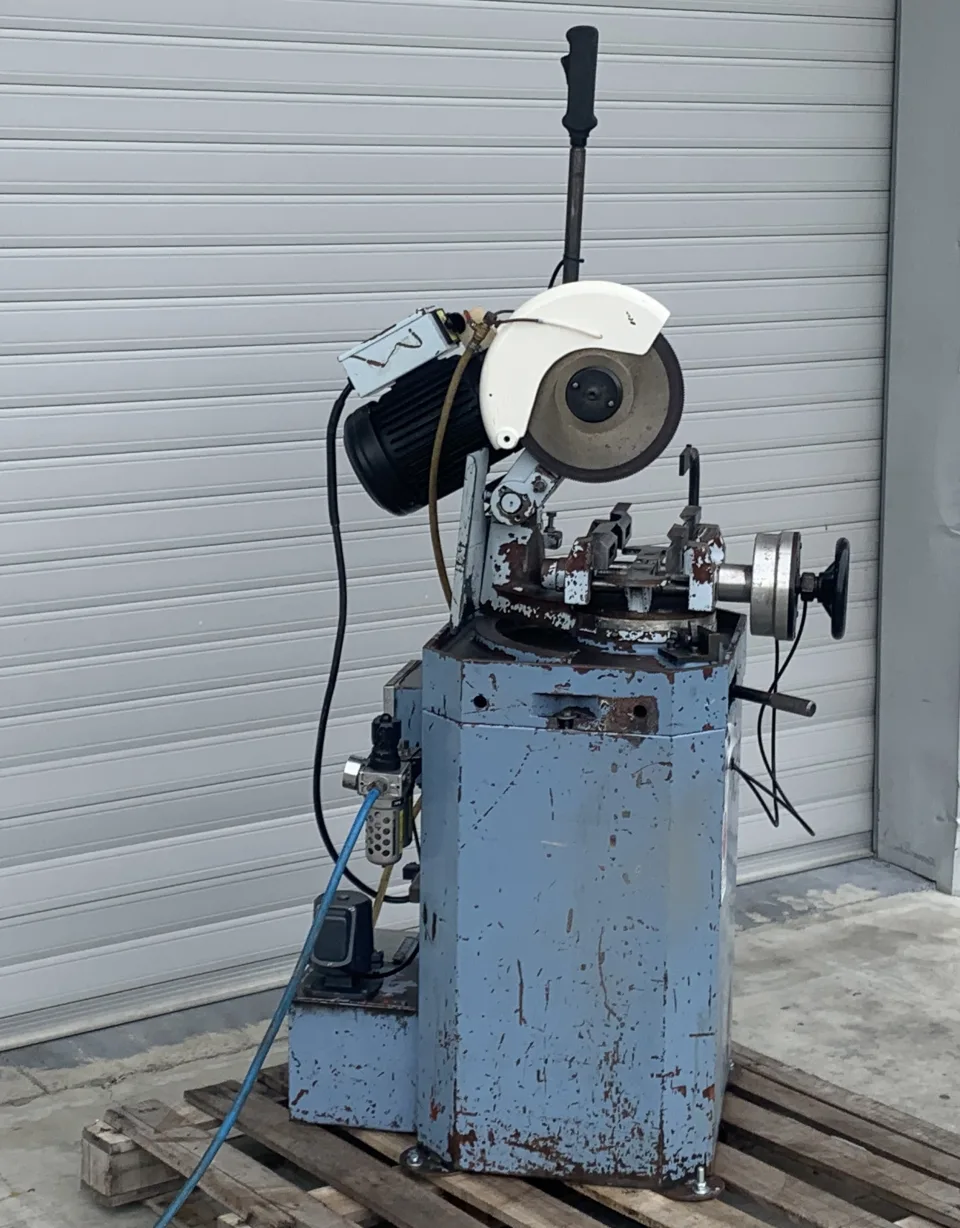

Soco MC-275PV Used Cold Saw
Circular cut off saw 275mm HSS blade, Pnuematic clamping vice
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
SOCO Machinery Co., Ltd. is a leading Taiwanese manufacturer specializing in high-precision engineering machinery for tube, pipe, and bar processing. Founded in 1979, SOCO has grown into a globally recognized brand, renowned for innovation, reliability, and advanced automation. Their product range includes CNC tube benders, tube cutting machines, end formers, and sawing systems. SOCO machines are designed to deliver exceptional accuracy, speed, and productivity across industries such as automotive, aerospace, furniture, and energy.
The SOCO MC-275PV is a manual-operation circular cold saw distinguished by its automatic power-clamping vise, which boosts workpiece securing efficiency by over 50 percent versus a standard manual vise. It retains the core features of the MC-275F series, such as burr-free cutting, swivel mitre head for angled cuts, and an integrated cooling system with a large coolant tank and electrical pump, and adds quicker, more convenient clamping for faster cycle times. This makes the MC-275PV ideal in environments where manual control is preferred but throughput and repeatability are key.
Features:
- 3 phase 415v
- Double pnuematic self centering vices
- Double mitre cutting +/- 45 degrees
- 275mm HSS blade
- Slow speed cold saw
- Burr free, fast and precise
- Heavy duty construction
- Two sets of reduction gears
- Two speed 2HP 3ph motor
- Built in auto coolant system
- Length stop
Please note.
- This machine has been powered up.
- The Coldcut saw is in good used condition.
- Everything seems to work as it should.
- The blade appears to be sharp and in good condition.
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | Soco MC-275PV | |
|---|---|---|
| Blade specification | 275mm-250mm x 32mm x 2.5mm | |
| Capacities | Straight | 45 degrees |
| Round tube | 80mm | 60mm |
| Square section | 75mm x 75mm | 50mm x 50mm |
| Rectangular section | 75mm x 90mm | 50mm x 60mm |
| Solid section | 38mm | 25mm |
| Blade speeds | 60/120 rpm | |
| Main motor power | 2HP 3 Phase 415V | |
| Standard jaws | 1 set | |
| Weight | 200kg |
