SAWC-0-0000
Saws & Cutting · Circular & cold saws

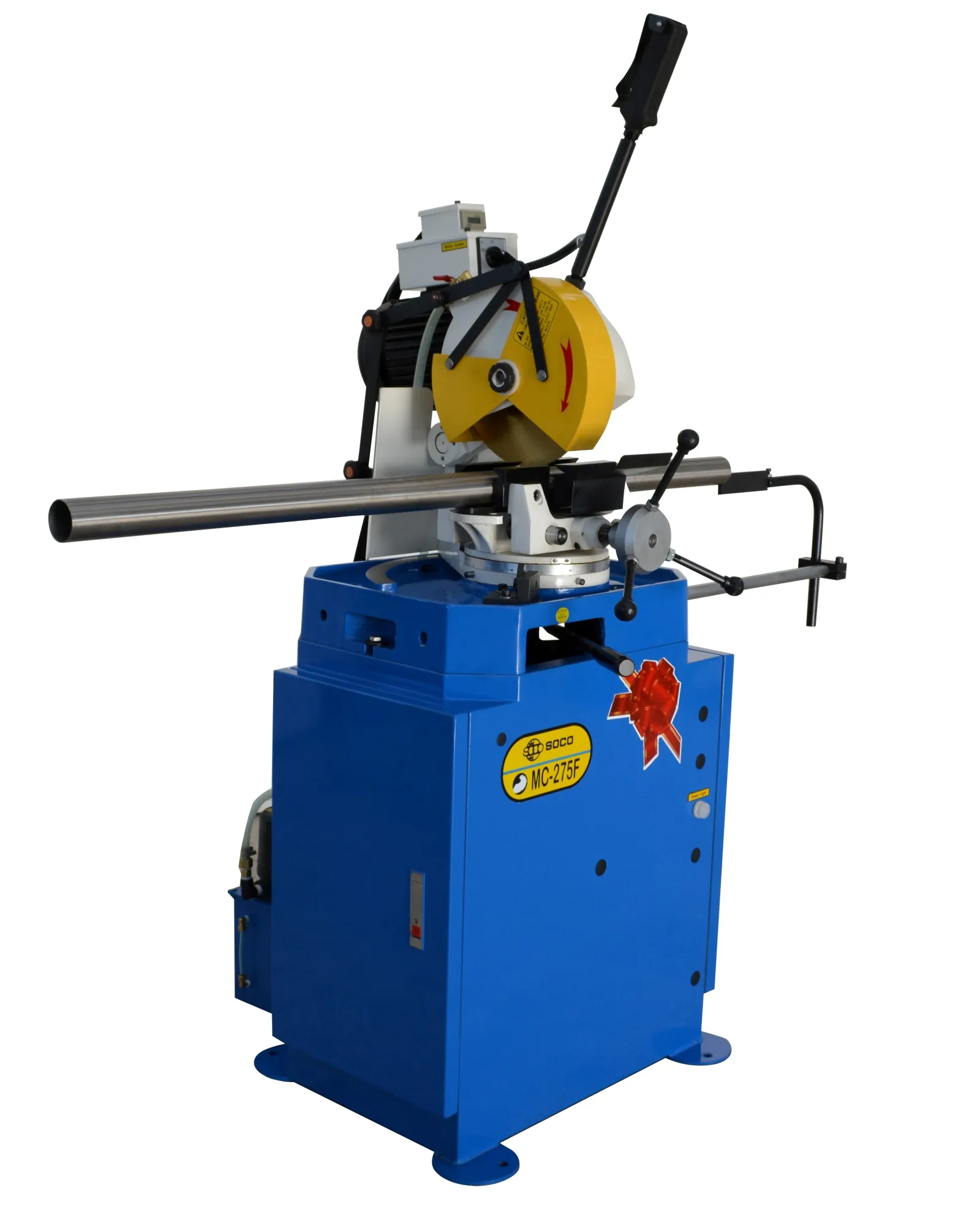

Soco MC-275F-CE Circular Saw
275mm blade diameter 3 phase, 80mm capacity 1 set of jaws
NZ Prepared, installed and supported nationwide by Scott Machinery.
Product overview
About this machine.
SOCO Machinery Co., Ltd. is a leading Taiwanese manufacturer specializing in high-precision engineering machinery for tube, pipe, and bar processing. Founded in 1979, SOCO has grown into a globally recognized brand, renowned for innovation, reliability, and advanced automation. Their product range includes CNC tube benders, tube cutting machines, end formers, and sawing systems. SOCO machines are designed to deliver exceptional accuracy, speed, and productivity across industries such as automotive, aerospace, furniture, and energy.
The SOCO MC-275F-CE is a robust Taiwanese built circular cold saw designed for precision cutting of tubes, pipes, and solid bars. Featuring a 275 mm HSS blade, 2 HP motor, and dual-speed operation (60/120 rpm), it delivers clean, burr-free cuts across various materials. The saw offers a swivel head for mitre cuts up to 45 degree, a self-centering double-clamp vice, integrated coolant system, and full CE compliant safety guarding. Durable and versatile, the MC-275F is ideal for workshops requiring accurate and reliable metal cutting performance.
Quality Taiwanese Manufacturing
- Slow speed cold saw
- 275mm OD x 32mm ID HSS blade
- 80mm Round OD cutting capacity
- Two way mitre cutting swivel head
- Burr free, fast and precise cutting
- Two speed 2HP 3ph motor

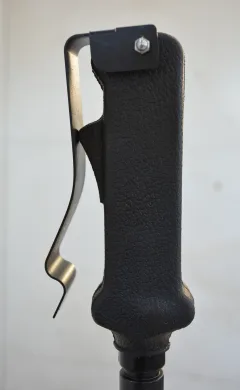

- Trigger switch

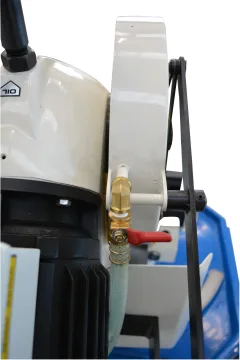

- Built in auto coolant system
- Full blade guarding CE standard
Positional stops 45, 60, 90 degrees
- Double clamping self centering vice
- Material length stop
- Manual vice (F model)
- 1 x set of vee mitre jaws
- Optional:
- Air clamping vice (PV model)
- Auto head feeding (AC model)
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | MC-275F-CE | |
|---|---|---|
| Blade specification | 275 - 250mm x 32mm x 2.5mm | |
| Capacities | Straight | 45° |
| Round tube | 80mm | 60mm |
| Square section | 75 x 75mm | 50 x 50mm |
| Rectangular section | 75 x 90mm | 50 x 60mm |
| Solid section | 38mm | 25mm |
| Blade speeds | 60/120 rpm | |
| Main motor power | 2HP 3 phase 415v | |
| Standard jaws | 1 set | vee mitre |
| Nett machine weight | 200 kg |
