PFRM-0-3080
Workshop Machinery · Workshop presses

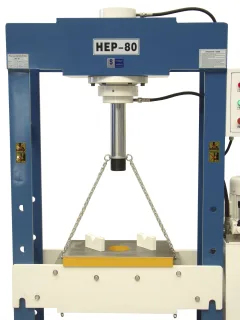

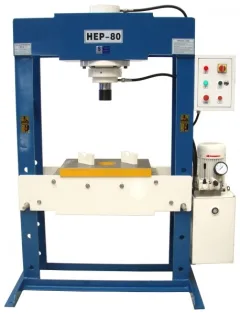

SCOTT HEP-80 Hydraulic Electric Powered Frame Press
HYD ELECTRIC FRAME PRESS 80T HEP80
$10,500.00
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Capacity
80 Ton
Stroke
300mm
Distance between frames
1000mm
Depth of frame
320mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
HEP hydraulic electric powered frame presses are designed with a double acting cylinder controlled by a hand control.
Heavy duty frame

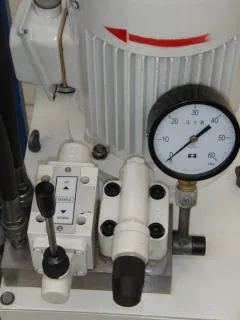

- 3 Phase pump & motor
- Sliding work table
- Flow control valve
- Pressure gauge
- Hydraulic table lift
- Vee blocks

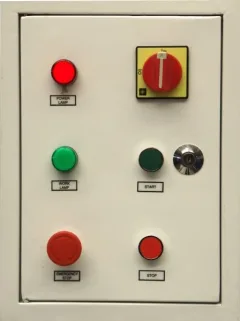

- Emergency stop
Optional:
- Hydraulic oil - Machines supplied dry
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity
80 Ton
Stroke
300mm
Distance between frames
1000mm
Depth of frame
320mm
Table size
640 x 395mm
Overall height
2100mm
Motor
4 kw
Oil tank capacity
55L
Overall dimensions WxDxH
1,700 x 950 x 2,070mm
Weight
1020 kg
Shipping Dimensions WxDxH
2,200 x 1,200 x 2,200mm = 5.8m3
