P&SH-0-0012
Sheet Metal & Fabrication · Punching & shearing

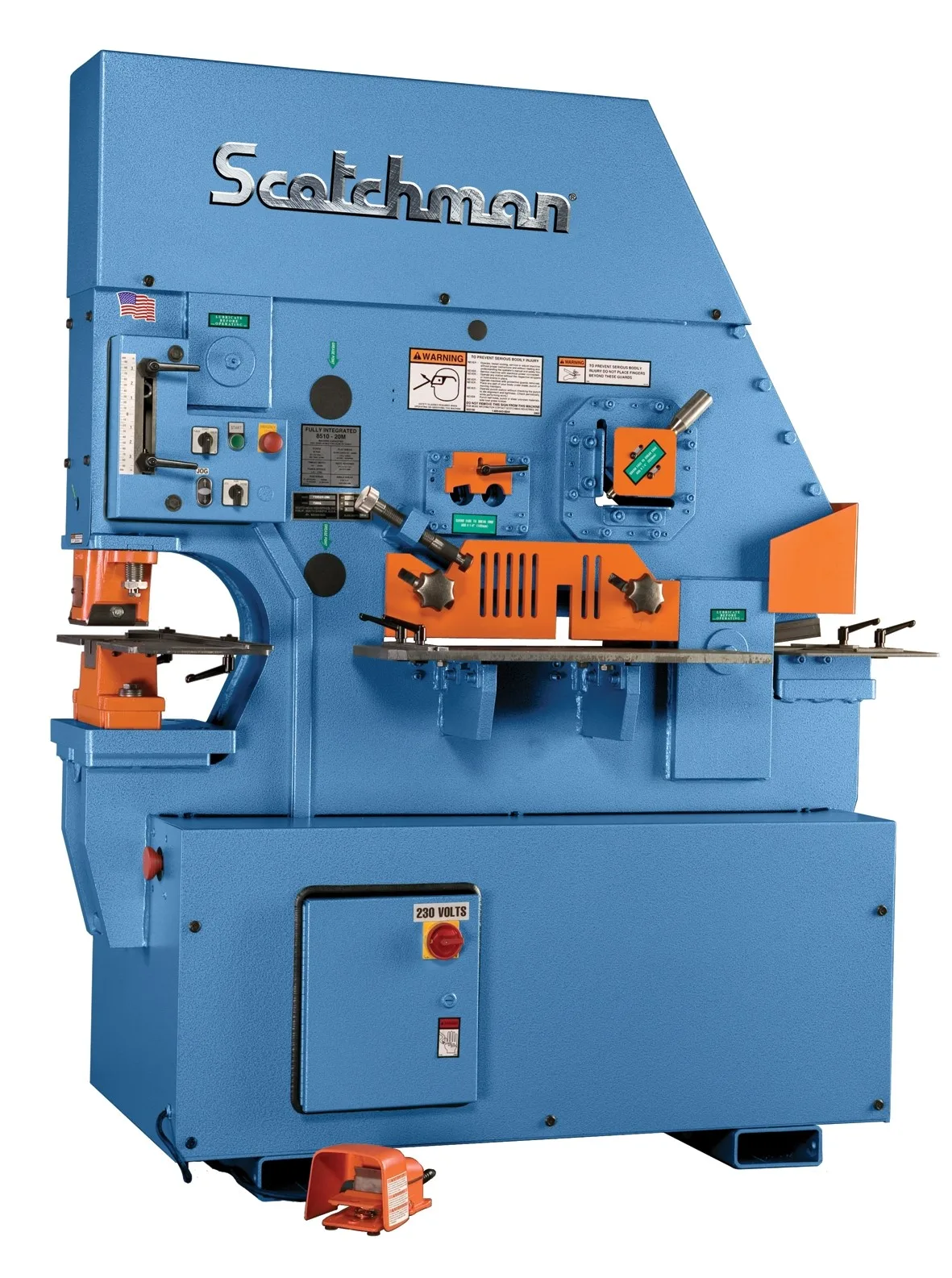

Scotchman FI 8510-20M Fully Integrated Hydraulic Punch & Shear
5 stations
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
5 stations
Machine features:
- Made in the USA
- Adjustable electric stroke control with scale
- Two-stage hydraulic pump
- Safety guarding
- Adjustable swing-away punch stripper
- Single operator
5 Work stations:
- 85 Ton punching station: 27mm dia in 20mm thick steel
- Flat bar shear: 350mm x 19mm
- Angle shear: 150mm x 12mm
- Rod shear: 35mm round or 32mm square
- Rectangular notcher: 75mm x 125mm x 12mm
Machine video
See Scotchman FI 8510-20M in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationTalk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
