Scotchman 6509-24M Used Hydraulic Punch & Shear, 65 Ton
1 / 9
Scotchman logo P&SH-1-0067

Scotchman 6509-24M Used Hydraulic Punch & Shear, 65 Ton

Made in the USA, 65 Ton, 3 stations.

$9,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Punch capacity 65 Ton
Punching examples (dia x thickness) 32mm in 16mm or 27mm in 18mm
Flat shear examples (length x thickness) 150 x 25mm, 250 x 18mm, 300 x 12mm
Shearing length 600mm (24 inch)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Scotchman Industries, based in South Dakota, USA, has been manufacturing high-quality hydraulic ironworkers and metal fabrication machines since 1967. Their machines are built for durability and versatility. Combining punching, shearing, notching, and more in one unit. All Scotchman machines are proudly made in the USA, Scotchman is a trusted name in fabrication shops worldwide.

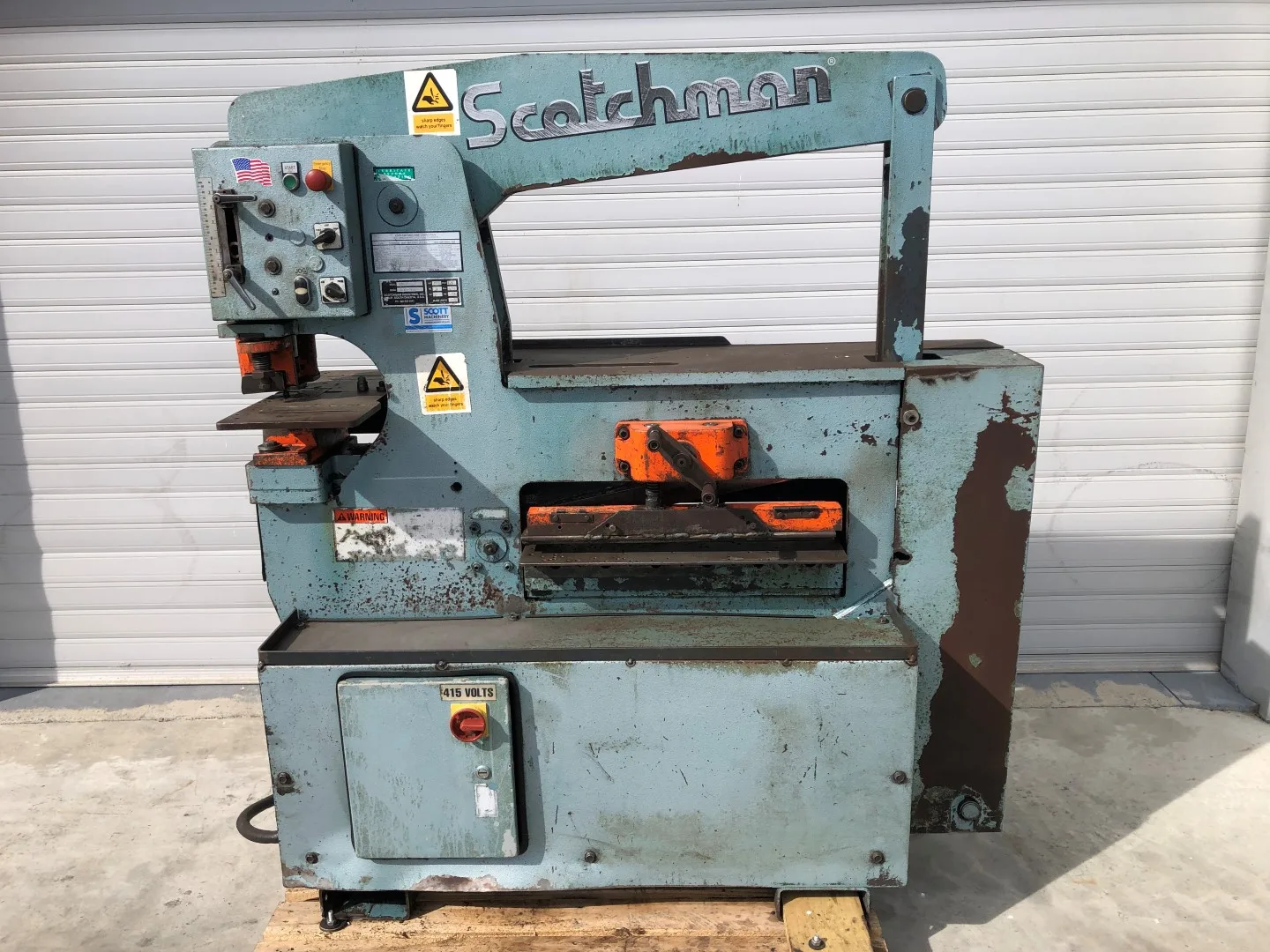

The Scotchman 6509‑24M, built in the USA, is a versatile single operator ironworker offering high capacity punching & shearing for production metal fabrication. Designed with Scotchman's component tool table, it can accept a wide range of optional tooling, including press brakes and channel shears making it a highly flexible workstation.

Features:

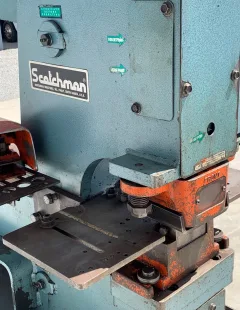

  • 65 Ton Punching station
  • Flat bar shear station (24 inch)
  • Three work stations including punching, flat bar shear, multi-tool table.

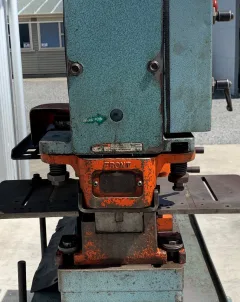

  • Standard XL Punch & 50mm die insert (accepts punch tooling up to 32mm)
  • Throat depth 229 mm

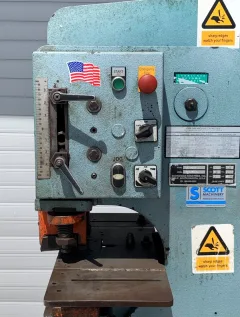

  • Adjustable hydraulic stroke, electric limit switch, jog mode, and foot pedal
  • Hydraulics operate at approx. 179 bar (2-stage pump) with overload protection
  • Three phase

Accessories:

  • A small selection of used punch & dies
  • Non-factory backgauge.

Optional:

  • Pressbrake attachments (8 to 24 inch)
  • Accepts optional tooling such as press brake attachments, angle shear, notching tools, pipe notchers, and more.
  • We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch

Machine video

See Scotchman 6509-24M in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Punch capacity 65 Ton
Punching examples (dia x thickness) 32mm in 16mm or 27mm in 18mm
Flat shear examples (length x thickness) 150 x 25mm, 250 x 18mm, 300 x 12mm
Shearing length 600mm (24 inch)
Power supply 415V / 50Hz / 3 phase
Freighting details (L x D x H) 1800mm x 1100mm x 1800mm
Weight (approx) 1500 kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding Scotchman 6509-24M
