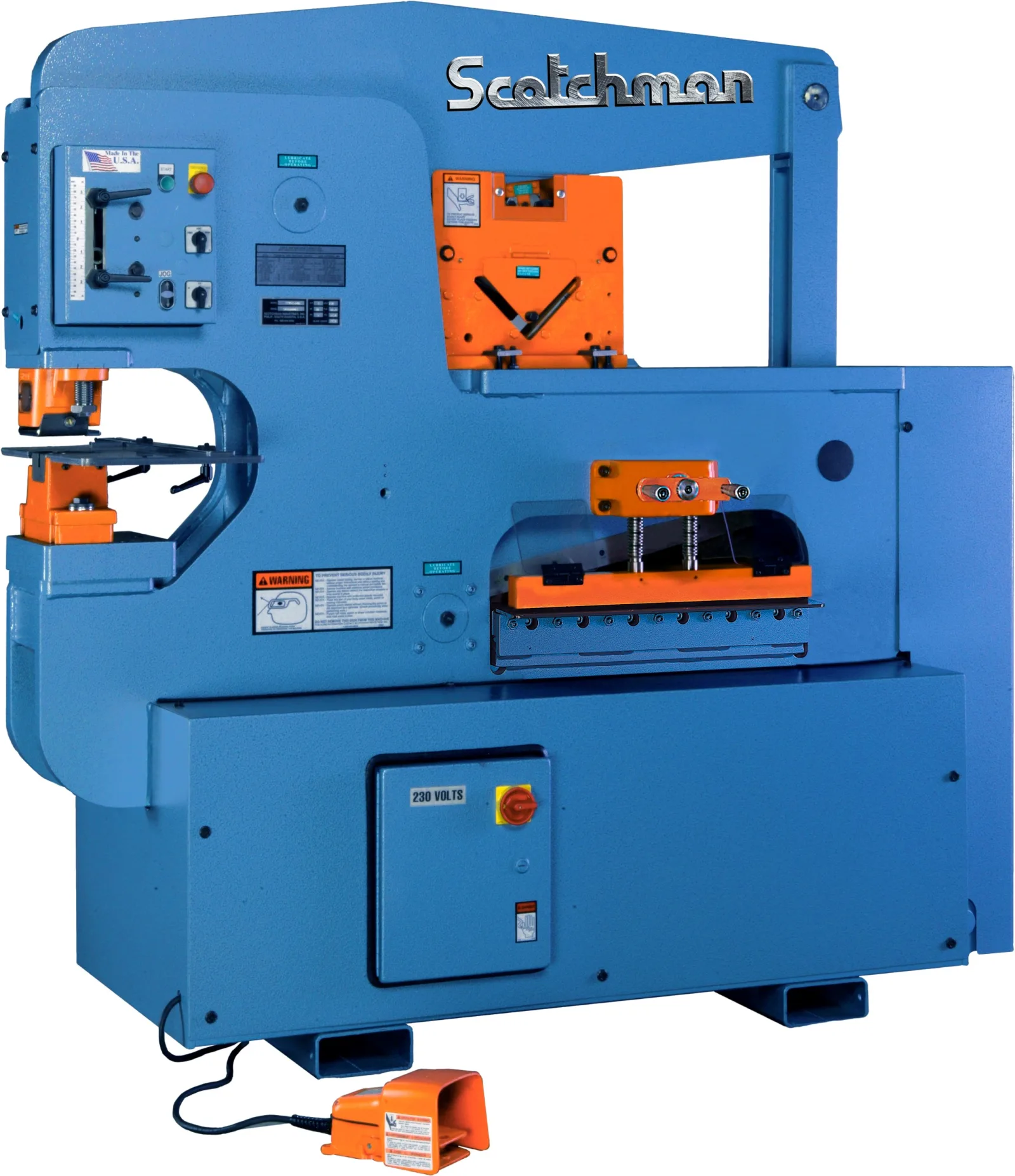

Scotchman 12012-24M Hydraulic Punch & Shearing Machine
120 Ton capacity, 600mm shear station
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Model
12012-24M
Capacity
120 Ton
Punching (diameter x thickness)
38mm in 25mm
Throat depth (punching)
305mm
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Quality USA made machine complete with 3 year factory warranty
Proven reliability
- Impossible to overload
- Unique low pressure / low maintenance design
- Incorporated 'Power Bar' for custom options
Optional accessories & tooling:
- Pressbrake attachments
- Pipe notcher attachment
- 90 degree notcher
- Tube shear
- Rod shear
- Picket tool
- Off set die holder
- Oversize die holder
- Oversize punching table
- Channel shear
- Various sizes & shapes of punch & dies
Machine video
See Scotchman 12012-24M in operation.
Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.
Discuss your applicationPublished data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
12012-24M
Capacity
120 Ton
Punching (diameter x thickness)
38mm in 25mm
Throat depth (punching)
305mm
Shearing length
600mm
Flat shear (length x thickness)
300 x 25mm, 500 x 18mm, 600 x 12mm
Angle shear (length x thickness)
150 x 13mm
Motor power
5hp / 415v / 3ph / 50hz
Nett machine weight
2,360 kg
Floor space L x D x H
1960 x 710 x 1850mm
