P&SH-0-2010
Sheet Metal & Fabrication · Notching

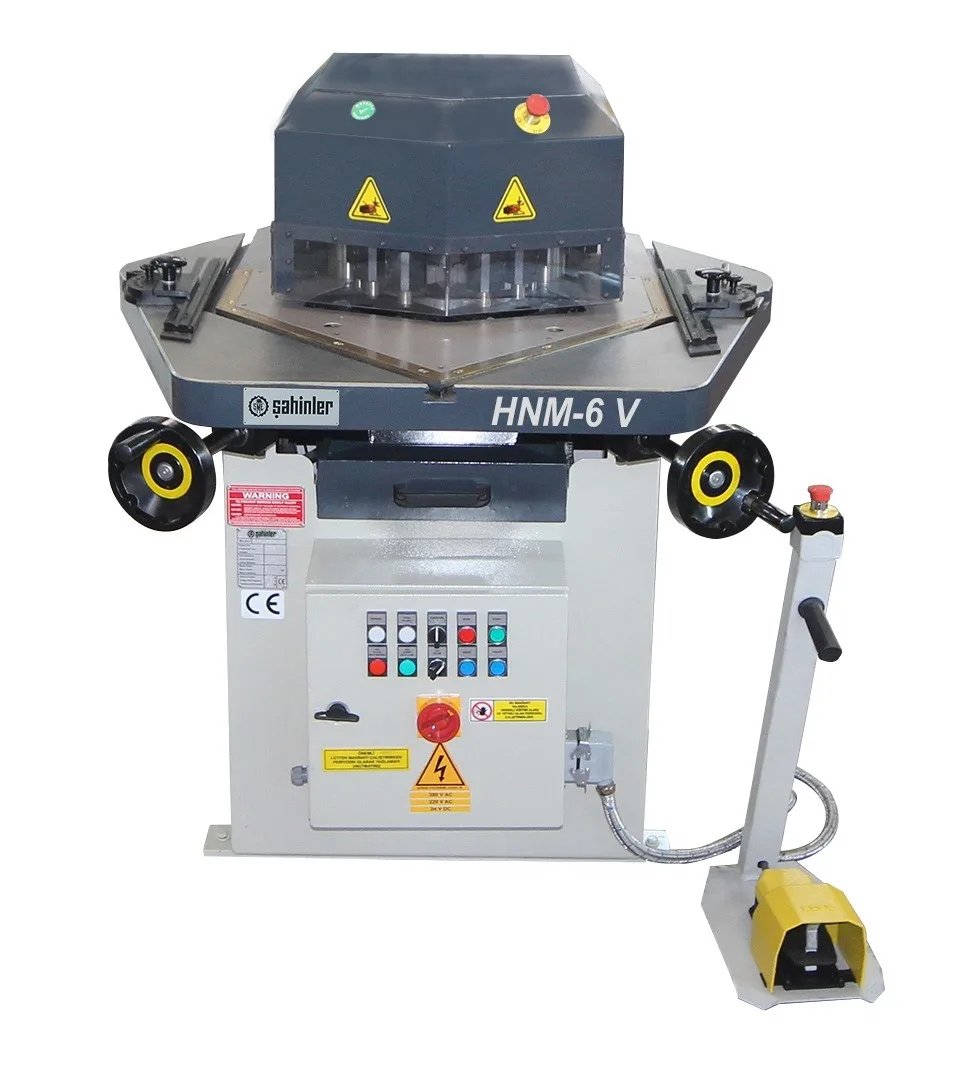

Sahinler HNM-6V Hydraulic Variable Angle Notcher
30 - 140 degree variable angle notcher
POA
Excludes GST. Configuration and freight quoted with your enquiry.
NZ Prepared, installed and supported nationwide by Scott Machinery.
Model
HNM-6V
Maximum notch size
200mm x 200mm
Max thickness of mild steel
6mm 60-140deg, 4mm 30-59deg
Max thickness of stainless
3mm 60-140deg, 2.5mm 30-59deg
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
30 - 140 degree variable angle notcher
Quality Turkish manufacturing
- Hydraulic operation
- 4 Work piece hold down clamps
- Variable angle corner notch, 30 - 140 degrees
- Remote foot switch
- E-stop with lock out
- Guarding with good blade visibility
- Offcut waste collection chute
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
HNM-6V
Maximum notch size
200mm x 200mm
Max thickness of mild steel
6mm 60-140deg, 4mm 30-59deg
Max thickness of stainless
3mm 60-140deg, 2.5mm 30-59deg
Motor power
4 kW
Table dimensions
1150 x 610mm
Max. Strokes/min.
30
Shear angle
30 - 140deg
Weight
1150 kg
Dimensions
1100mm x 1150mm x 1400mm
Talk to Scott Machinery
Is this the right machine for your work?
Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
