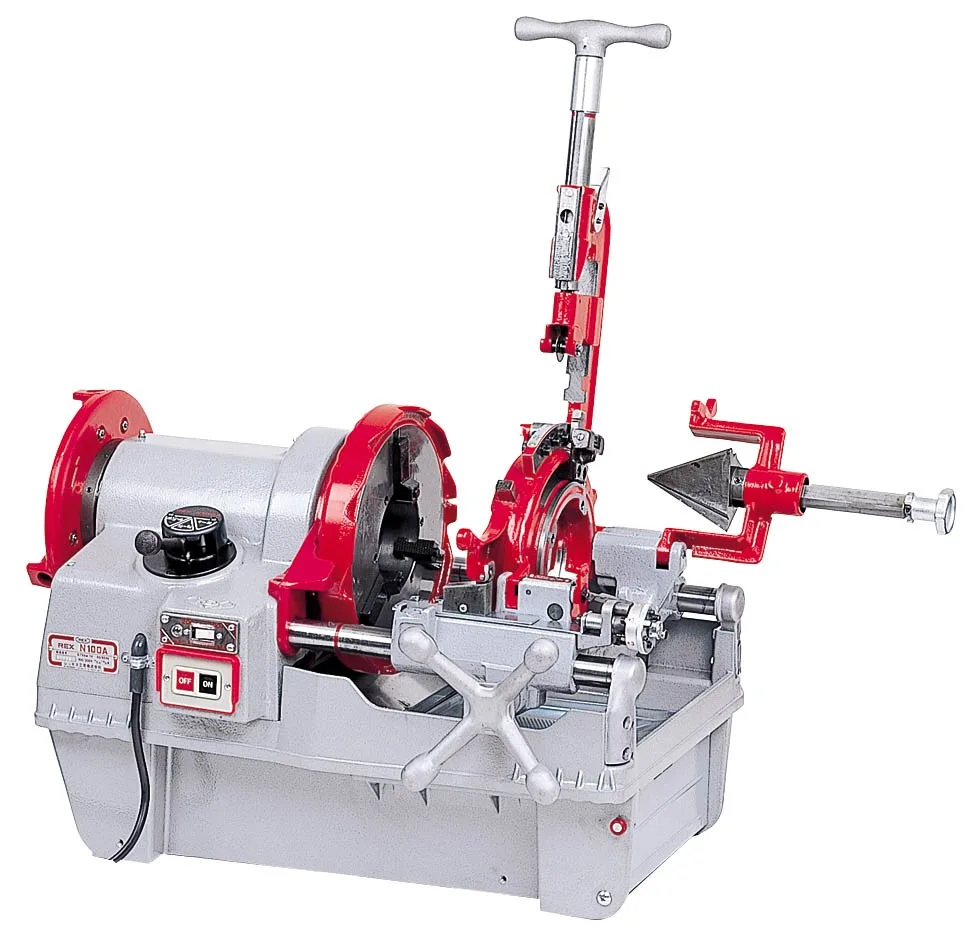

REX N100A-CE Pipe Threading Machine

Threading , cutting & reaming, 1/2 - 4" capacity Made in Japan

$8,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Threading capacity 1/2" - 4"
Rotation speeds via gearbox 15/ 27 /48 rpm
Motor power 1280w condenser motor (Single phase) 230V
Weight 123 kg
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

REX pipe threading machines, manufactured in Japan by REX Industries, are trusted worldwide for their precision, durability, and ease of use. With a legacy dating back to 1925, REX offers a full range of machines from compact, portable models to heavy-duty industrial units. Designed for threading steel, stainless steel, and plastic pipes.

The REX N100A, a long standing flagship from REX Japan, delivers high-performance pipe threading for 1/2" (15A) to 4" (100A) steel and stainless steel pipes. Equipped with a quiet, maintenance free condenser motor and a 3 speed transmission, this machine threads efficiently and reliably in industrial settings The REX N100A pipe threader provides superb quality & reliability. Makes the best finish tapered threads with ease. The machine is very user friendly for 2 1/2 to 4 inch pipe sizes can be simply adjusted by a micro adjuster on the self opening die head. This large die head supports 20mm size dies providing the best quality threads. It also has a separate 27mm auto type die head for sizes up to 2 inch. Thread lengths can be adjusted by changing the lever contact. The die head can be opened manually or automatically.

Features:

  • Wide threading capacity in steel and stainless steel pipe from 1/2" to 4" (15 A-100 A)
  • Dual die head capability comes with Uni-auto die head for 1/2" - 2" and includes profiling die head for 2 1/2" - 4" threading
  • Threads a 1" pipe in under 20 seconds
  • Threads a 4" pipe in under 100 seconds
  • Three speed gearbox with optimised spindle speeds -48 rpm (1/2"-3/4" ) - 27 rpm (1"-2") - 15 rpm (2 1/2"-4")
  • Efficient, low-noise operation
  • Micro fine adjustment allows precise control of thread diameter and taper depth
  • Multi thread compatibility. Supports BSPT and NPT thread types (others possible with optional die sets)
  • Compatible with Uni-auto, NV-auto, manual, profiling, grooving, and beveling heads
  • Integrated tool box & chip collector helps keep worksite organized and minimizes clean-up time
  • Approximately 123 kg. Compact footprint with carry handles for two-person transport
  • User friendly cutter with tool less depth adjustment for quicker pipe prep

Standard accessories:

  • Self opening die head 1/2"-2"
  • Die head to suit 2 1/2" - 4"
  • Full set of BSPT dies to suit die heads
  • 1280W High efficient motor with 3 speed gearbox. 15/27/48 RPM
  • 2L Thread cutting oil

Safety features:

  • "Hold to run" safety foot switch
  • CE Conformity

Optional Accessories:

  • Bolt die head M8 - M52
  • RG-R3 portable groover
  • Thread rolling head
  • Spare dies
  • Threading oil

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Threading capacity 1/2" - 4"
Rotation speeds via gearbox 15/ 27 /48 rpm
Motor power 1280w condenser motor (Single phase) 230V
Weight 123 kg
Shipping 186kg, 0.567cu.m
