POA
Lathe & milling tooling
1 / 3
WEB-KOJEX ADAPTERS
Tooling, Accessories & Consumables · Lathe & milling tooling

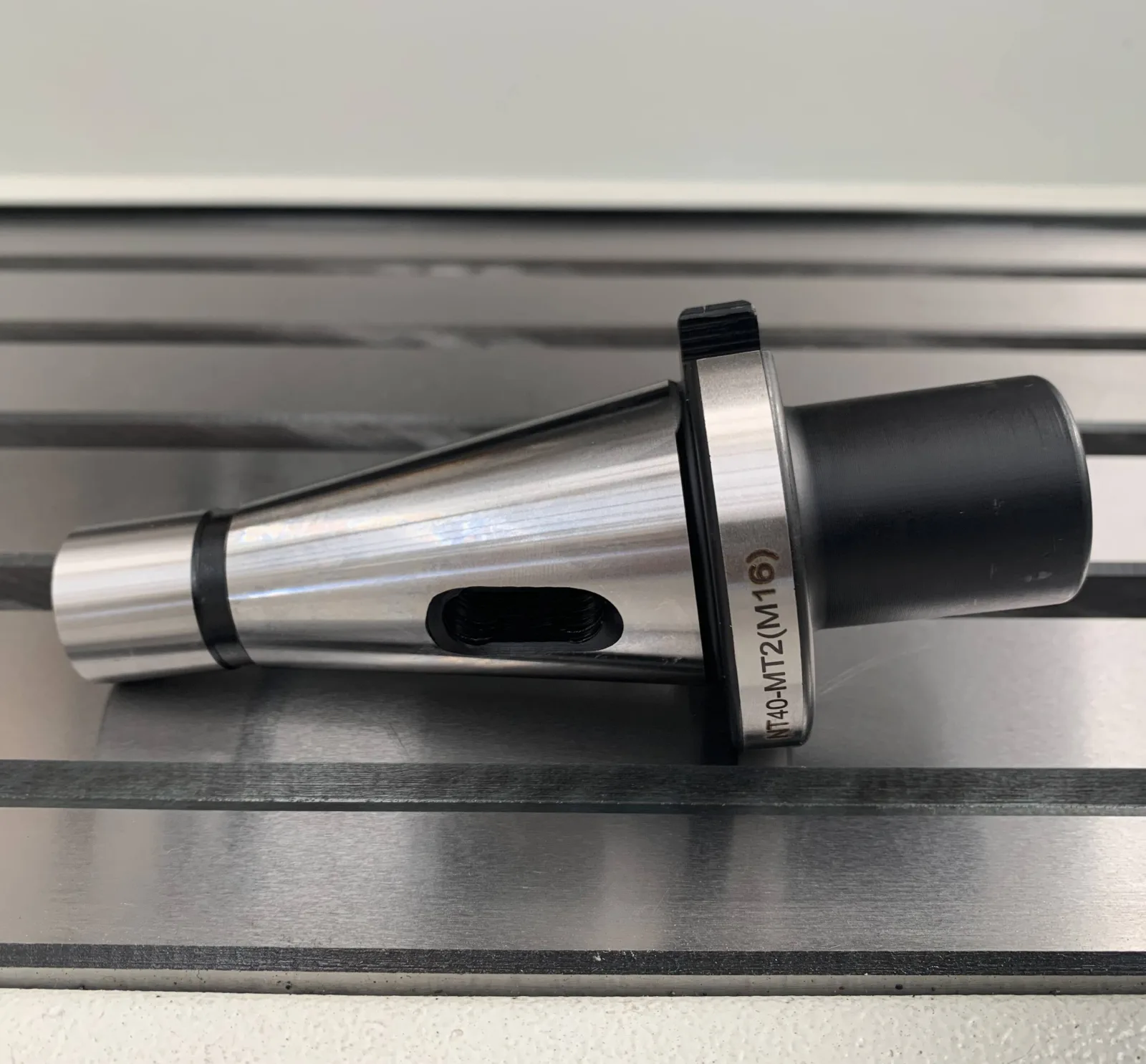

Optimum Taper Adaptors
ISO Taper Adaptor to Morse Taper
POA
Configured to suit your application. Talk to us for a price.
NZ Prepared, installed and supported nationwide by Scott Machinery.
NZ owned
Since 1989
Industry people
Practical machine advice
Auckland + Christchurch
Two support hubs
Nationwide support
Installation, training & service
Parts & accessories
Large local range
Product overview
About this machine.
Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.
Optimum Morse taper adaptors provide a precise and secure solution for fitting Morse taper tooling into standard machine spindles. Available in a range of taper types, these adaptors allow seamless compatibility across various milling and drilling machines.
Features:
- Manufactured from high-grade steel and ground for accuracy, they ensure reliable performance, excellent concentricity, and extended service life.
- Ideal for workshops needing flexibility between machine spindle formats and Morse taper tooling
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Male Spindle Taper | Female Taper | Draw Bar Thread | Price Excl GST | |
|---|---|---|---|---|
| R8 | 2MT | 7/16" UNF | $45.00 | |
| R8 | 3MT | 7/16" UNF | $50.00 | |
| R8 | 4MT | 7/16" UNF | $75.00 | |
| NT30 | 2MT | M12 | $80.00 | |
| NT30 | 3MT | M12 | $80.00 | |
| NT40 | 2MT | M16 | $105.00 | |
| NT40 | 3MT | M16 | $126.00 | |
| NT40 | 4MT | M16 | $240.00 | |
| NT40 | 5MT | M16 | POA | |
| NT50 | 3MT | M24 | POA | |
| NT50 | 4MT | M24 | POA | |
| NT50 | 5MT | M24 | $200.00 | |
| CNC | Pull Stud Thread | |||
| BT30 | 2MT | M12 | $125.00 | |
| BT30 | 3MT | M12 | $125.00 | |
| BT40 | 2MT | M16 | $120.00 | |
| BT40 | 3MT | M16 | POA | |
| BT40 | 4MT | M16 | $135.00 | |
| BT50 | 3MT | M24 | $215.00 | |
| BT50 | 4MT | M24 | $220.00 | |
| BT50 | 5MT | M24 | $245.00 |
