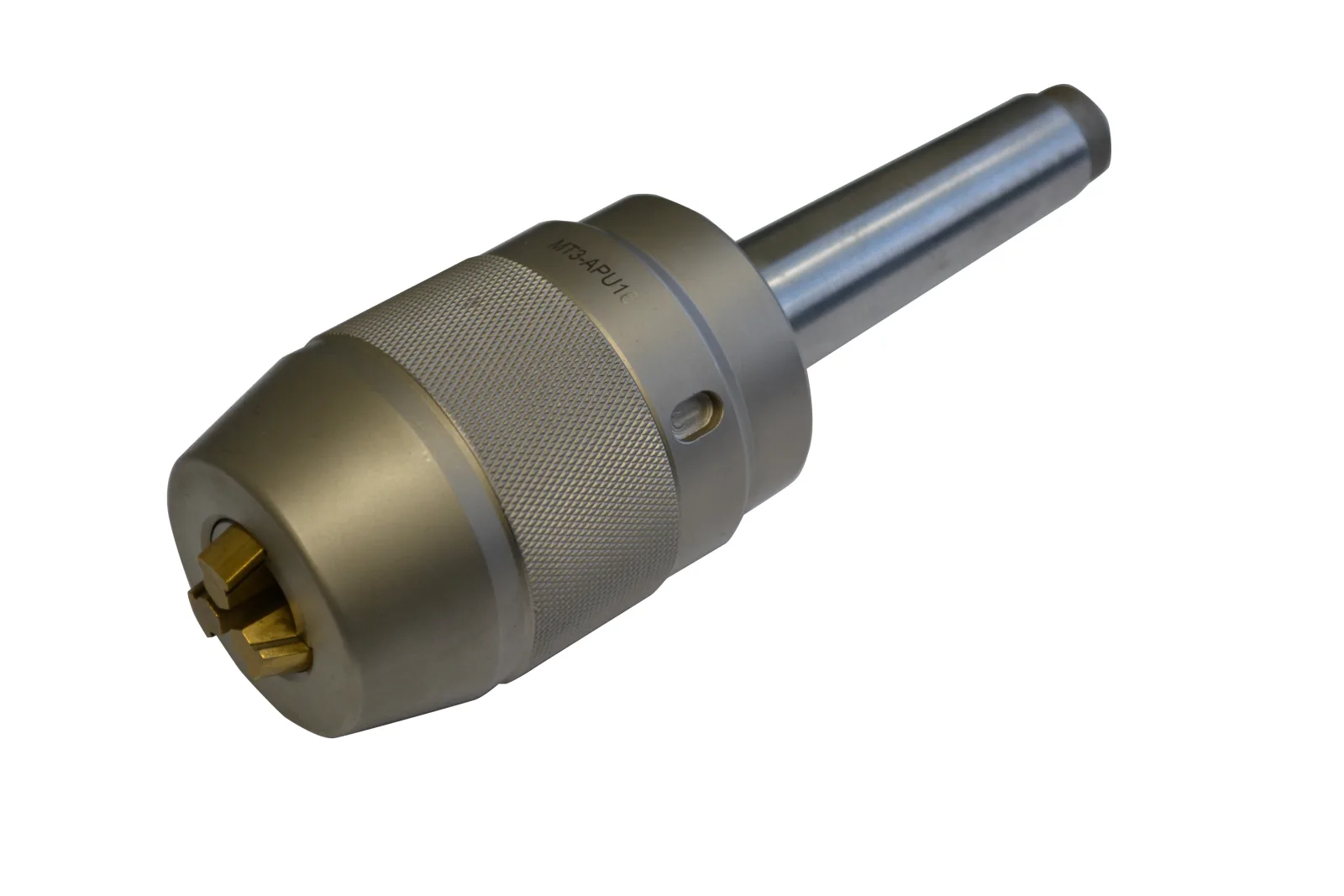

Optimum Integrated Keyless Drill Chucks

Integrated taper arbor Compact design & high accuracy

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

Optimum integrated chucks combine the chuck body and arbor into a single solid unit, delivering improved rigidity, accuracy, and performance in milling and drilling applications. Manufactured from high grade, hardened steel and precision ground for excellent concentricity, these chucks are ideal for high speed and heavy duty use. Available in various taper styles such as BT, NT, and MT, they offer a secure, vibration resistant grip and reduced runout, making them a reliable choice for demanding workshop and CNC environments.

Features:

  • One piece construction. Chuck and arbor are integrated for maximum rigidity and strength
  • High concentricity. Precision ground to ensure minimal runout and accurate tool holding
  • Hardened alloy steel. Durable and wear-resistant for long-term performance
  • Improved stability equals reduced vibration during machining for better surface finishes
  • Suitable for high speed use. The balanced design supports efficient, accurate cutting at speed

Optional:

  • APU13 C-Spanner $9.90 + GST
  • APU16 C-Spanner $12.90 + GST

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Optimum Optimum Integrated keyless chucks
Taper Model & length To suit Chuck capacity Price Excl GST
3MT APU16-M12 M12 draw bar 0.2 - 16mm $125.00
3MT APU16-Tanged Tanged 0.2 - 16mm $120.00
4MT APU16-M16 M16 draw bar 0.2 - 16mm $135.00
4MT APU16-Tanged Tanged 0.2 - 16mm $130.00
NT30 APU16-120L M12 draw bar 0.2 - 16mm $195.00
NT40 APU16-120L M16 draw bar 0.2 - 16mm $199.00

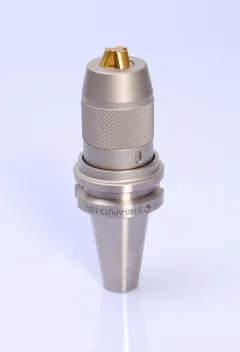

BT40 KPU16-130 Pull stud 3 - 16mm $245.00
BT50 KPU13-105 Pull stud 1- 13mm $380.00
BT50 KPU16-120 Pull stud 3 - 16mm $390.00
