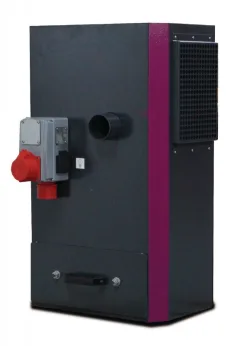

Optimum GU2 3Ph Dust Extractor

Sheetmetal stand/extractor for double ended grinders and other equiptment

$990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Fan speed 29,000 rpm
Air flow 4.6 m3 per min
Dust capacity 15L
Filter class L, 0.09 m2 surface
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The Optimum GU 2 3-Phase Extractor is a strong and durable, space saving cyclone extraction system designed for high efficiency dust and debris removal. Officially described by Optimum as a standalone extraction unit for OPTIMUM belt sanders (such as the BSM series) or external workshop machinery, this extractor features twin engine cyclone performance and an automatic start/stop switch, eliminating the need for manual activation when the connected machine powers on or off.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

Features:

  • Standalone cyclone extraction unit for Optimum belt sanders or other machines
  • Twin motor cyclone system for efficient dust and chip removal
  • Power supply 400 V, 3-phase
  • Motor output 2.6 kW total (2 x 1.3 kW motors)
  • Fan speed 29,000 rpm
  • Maximum airflow 4.6 m3/min
  • Dust collection approx. 15 L capacity
  • Filter class L with 0.09 m2 filter surface
  • Y-adapter for dual 60 mm hose connections
  • EMC Class C2, compliant with DIN EN 55011
  • Requires a 5 pole 400 V connection including neutral and earth

Safety features:

  • Sound insulated housing for quieter operation
  • Noise level approx. 89-92 dB(A)
  • Automatic start/stop function with 2-3 second delay (on start and shutdown)

Note:

  • Adaptors and hoses may be needed to suit specific industrial needs

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Fan speed 29,000 rpm
Air flow 4.6 m3 per min
Dust capacity 15L
Filter class L, 0.09 m2 surface
Motor power 2.6kW (2 x 1.3kW)
Weight 50kg

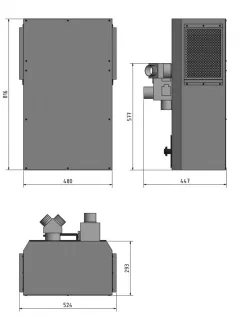

Shipping 550mm x 450mm x 825mm (60kg)
