Optimum DM50 Magnetic Base Drill

Rota Broach Mag Drill 1700w 50mm core drill capacity. Single Phase.

On Order Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Maximum core drilling capacity 50mm
Maximum core drill length 50mm
Standard twist drill capacity 13mm
Spindle Weldon 19mm shank
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

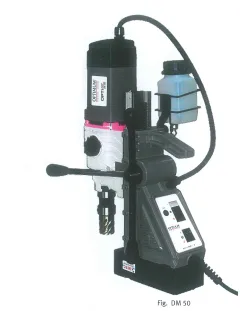

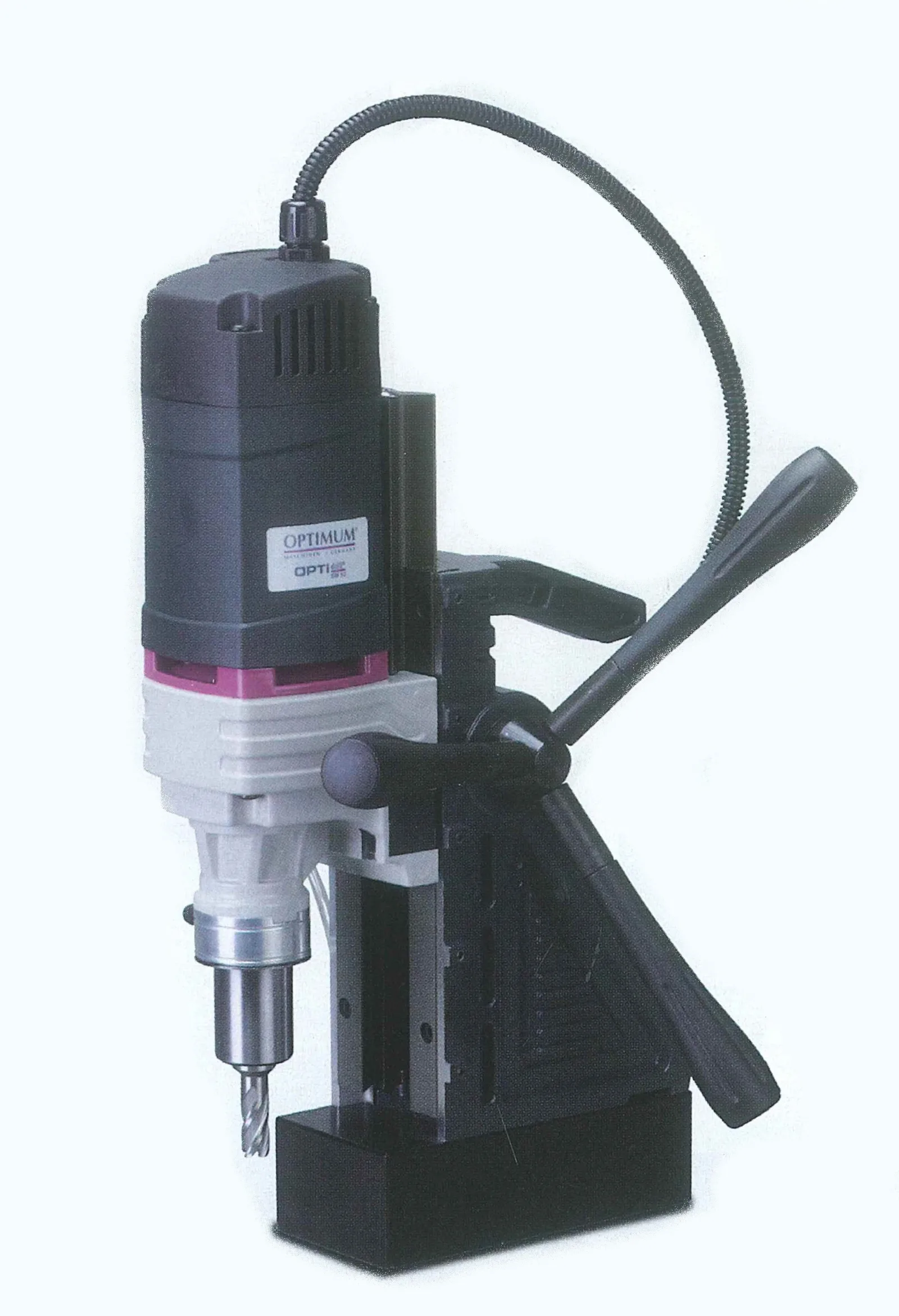

The DM50 from Optimum Maschinen is a robust, German engineered magnetic core drill designed to exceed European industry standards. As part of the OptiDrill lineup, it's built to the EU's CE and EMV-Class C2 certification levels, with comprehensive protection (IP42) for safe operation in demanding conditions

Features:

  • Powerful & Compact 1.7 kW high torque motor that delivers a no-load speed of 790 rpm, yet remains portable at just 10.6 kg
  • High magnetic holding force anchored by a 14.5 kN magnetic base (166 x 80 mm), ensuring secure attachment even for upside-down or overhead drilling
  • Precision guided design features long, low mounted sleeve guides for steady, accurate drilling overload protection and soft start extend tool longevity
  • Versatile drilling, core drills up to 50 mm and full drilling up to 13 mm diameter. Quick conversion between modes makes it ideal for varied industrial tasks

Included:

  • Built in cooling sealed system with automatic internal lubrication and a removable coolant tank which ensures consistent performance and prolonged bit life
  • 1 oil tank
  • 1 oil pipe
  • 1 Allen key
  • 3 handles
  • 1 plastic transport case
  • 1 safety strap

Safety features:

  • Protective & durable dual insulated and grounded, designed for construction site use.
  • Overload protection.
  • Safety strap
  • Casing meets New Zealand IP 42 dust and drip standards
  • CE Conformity

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Maximum core drilling capacity 50mm
Maximum core drill length 50mm
Standard twist drill capacity 13mm
Spindle Weldon 19mm shank
Speed Single speed 750 rpm
Magnet size 166m x 80mm
Magnet strength 14.5kN
Motor power 1700W / 230V
Weight 10.6kg
Shipping 510mm x 425mm x 170mm (12kg)

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
