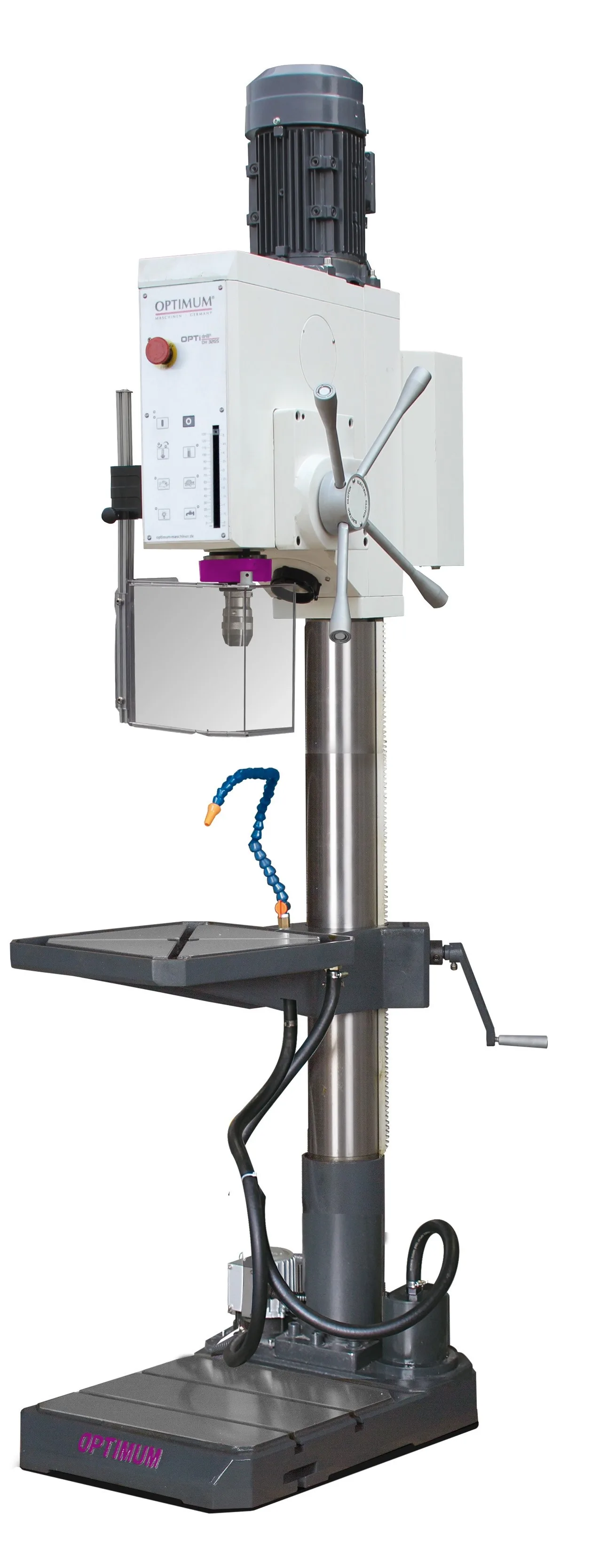

Optimum DH32GS Geared Head Drilling Machine

Name: Optimum DH32GS Geared Head Drilling Machine – Pedestal type c/w Power feed, 3 phase
Brand: Optimum
SKU: DGHD-0-3432

Geared head. 4 Morse taper. 30mm Drilling Capacity. 3 Phase 1.5/2.2kw. Coolant. Power feed.

$5,290.00 Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Drilling capacity (max in mild steel) 30mm

Continuous capacity steel 26mm

Spindle taper 4MT

Throat 285mm

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

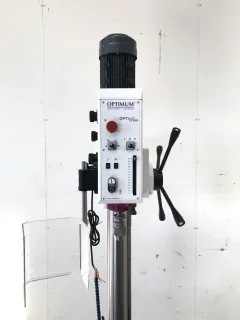

The Optimum DH32GS is a heavy duty high, performance, column mounted geared head drill designed for demanding workshop environments. Built with a solid cast iron frame and precision ground main spindle. Table can move up/down on rack & rotate around the column 360 degrees as well as tilt +/-60 degrees & spin 360 degrees and has a generous 120kg load rating. 16mm Keyless drill chuck & arbor (not shown in photos) The DH32GS delivers reliable, high torque drilling suitable for both light industrial and professional metalworking.

Features:

Geared head drive with 8 speed range (75-2,000 rpm) smooth, high torque performance for various materials
Drilling capacity up to 30 mm in mild steel (maximum) and 26 mm continuous
4MT spindle taper
Hardened and ground spindle ensures concentric accuracy and low run out
Large 400 x 420 mm table with diagonal 14 mm T slots, rotatable 360 degrees, and tilting surface for versatile setups
125 mm quill stroke and 285 mm throat depth for handling larger workpieces
Low maintenance gearbox with grease lubricated PA6 gears

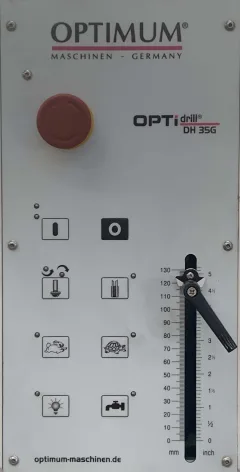

Integrated depth stop with millimeter scale, spindle ejection mechanism, chuck guard with microswitch, and built in halogen lamp
Robust build, thick walled cast iron column (115mm diameter), and total weight 312 kg for stable operation
16 mm keyless drill chuck & arbor
